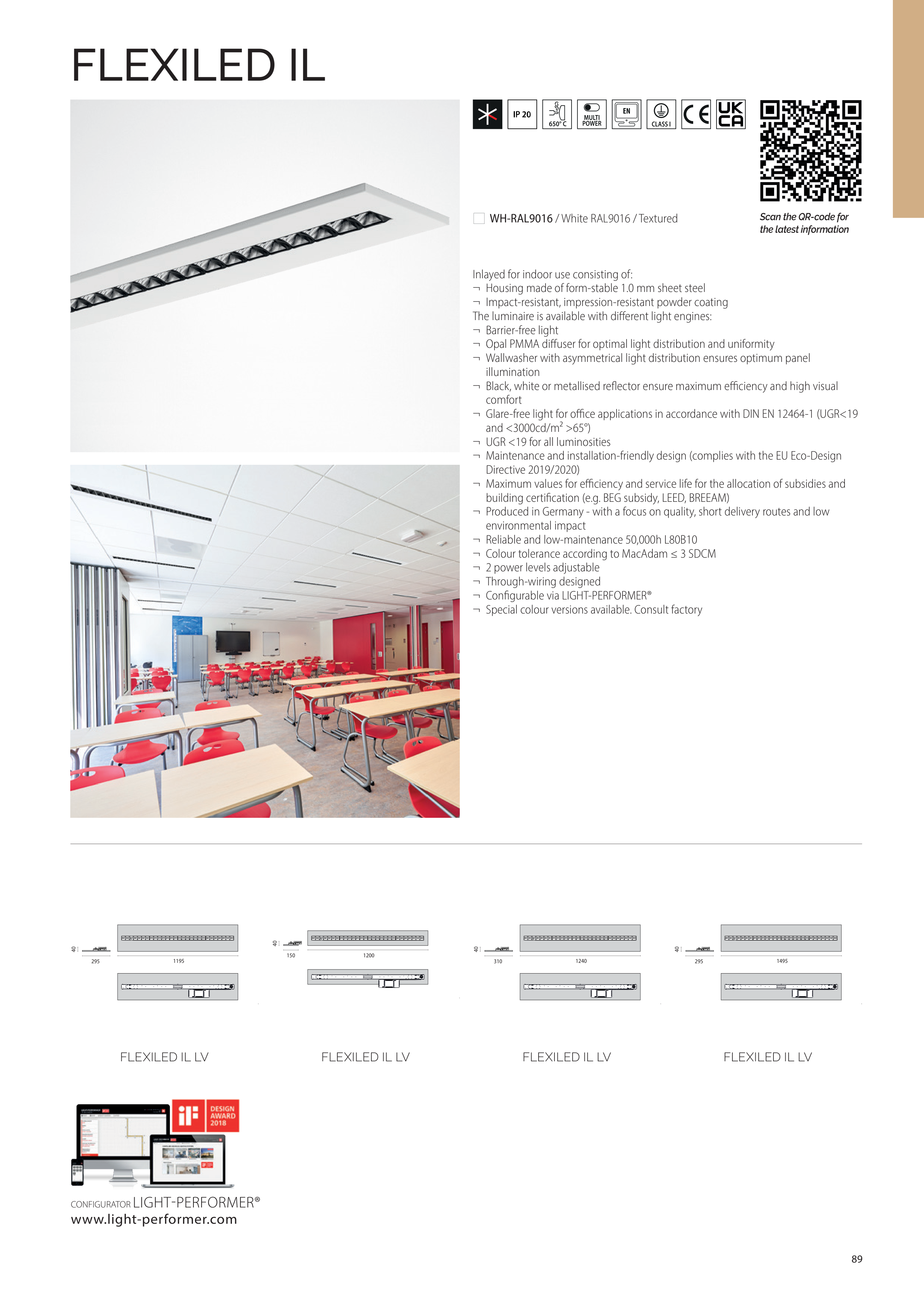

FLEXILED IL
650° C
295
1495
40
FLEXILED IL LV
310
1240
40
FLEXILED IL LV
150
1200
40
FLEXILED IL LV
295
1195
40
FLEXILED IL LV
www.light-performer.com
T WH-RAL9016 / White RAL9016 / Textured
Scan the QR-code for
the latest information
Inlayed for indoor use consisting of:
¬ Housing made of form-stable 1.0 mm sheet steel
¬ Impact-resistant, impression-resistant powder coating
The luminaire is available with different light engines:
¬ Barrier-free light
¬ Opal PMMA diffuser for optimal light distribution and uniformity
¬ Wallwasher with asymmetrical light distribution ensures optimum panel
illumination
¬ Black, white or metallised reflector ensure maximum efficiency and high visual
comfort
¬ Glare-free light for office applications in accordance with DIN EN 12464-1 (UGR<19
and <3000cd/m² >65°)
¬ UGR <19 for all luminosities
¬ Maintenance and installation-friendly design (complies with the EU Eco-Design
Directive 2019/2020)
¬ Maximum values for efficiency and service life for the allocation of subsidies and
building certification (e.g. BEG subsidy, LEED, BREEAM)
¬ Produced in Germany - with a focus on quality, short delivery routes and low
environmental impact
¬ Reliable and low-maintenance 50,000h L80B10
¬ Colour tolerance according to MacAdam ≤ 3 SDCM
¬ 2 power levels adjustable
¬ Through-wiring designed
¬ Configurable via LIGHT-PERFORMER®
¬ Special colour versions available. Consult factory
CONFIGURATOR LIGHT-PERFORMER®
89
