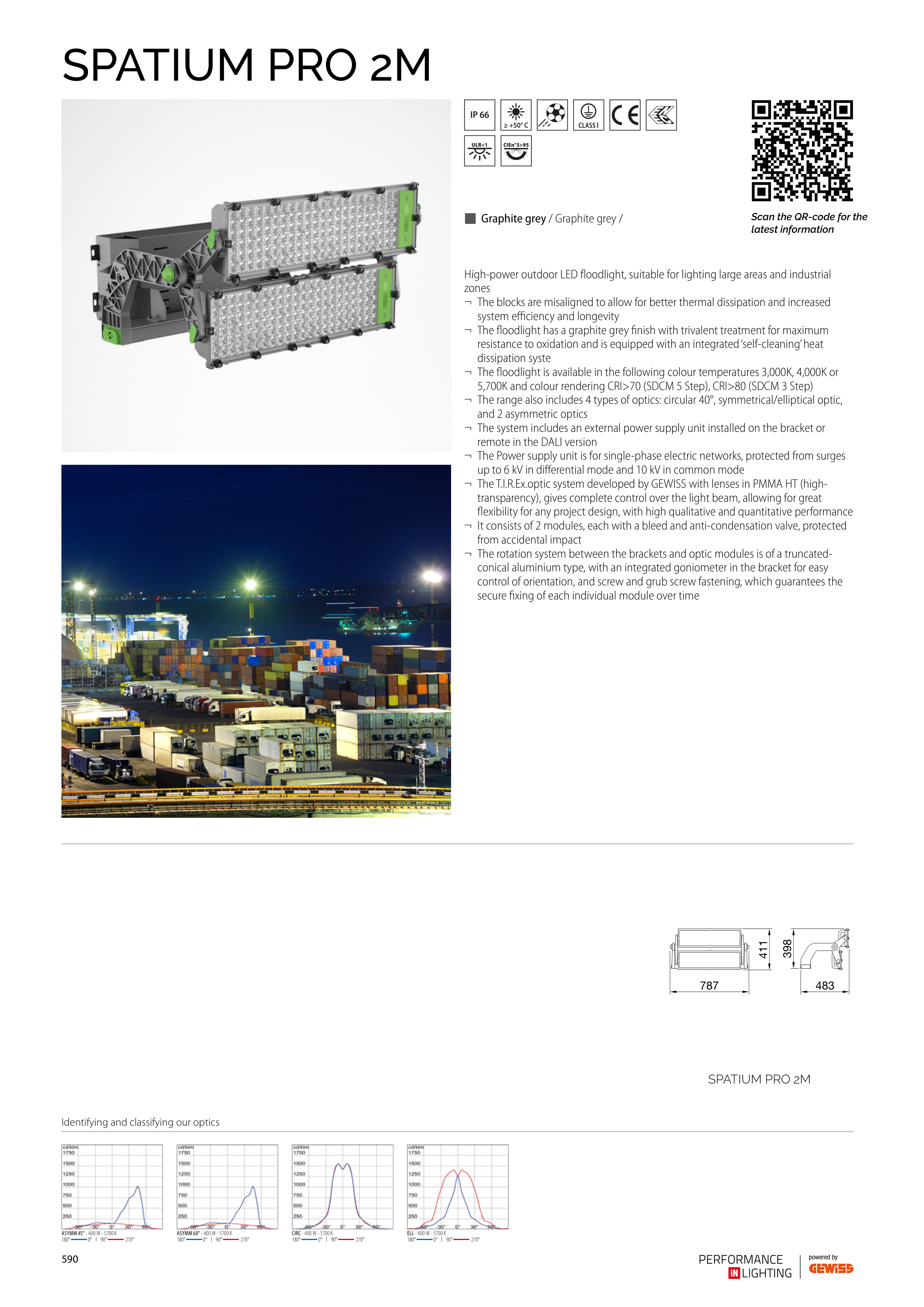

SPATIUM PRO 2M
≥ +50° C
398
483
787
411
SPATIUM PRO 2M
3100132
ASYMM 60° - 400 W - 5700 K
3100132
CIRC - 400 W - 5700 K
3100132
ASYMM 45° - 400 W - 5700 K
3100132
ELL - 400 W - 5700 K
High-power outdoor LED floodlight, suitable for lighting large areas and industrial
zones
¬ The blocks are misaligned to allow for better thermal dissipation and increased
system efficiency and longevity
¬ The floodlight has a graphite grey finish with trivalent treatment for maximum
resistance to oxidation and is equipped with an integrated ‘self-cleaning’ heat
dissipation syste
¬ The floodlight is available in the following colour temperatures 3,000K, 4,000K or
5,700K and colour rendering CRI>70 (SDCM 5 Step), CRI>80 (SDCM 3 Step)
¬ The range also includes 4 types of optics: circular 40°, symmetrical/elliptical optic,
and 2 asymmetric optics
¬ The system includes an external power supply unit installed on the bracket or
remote in the DALI version
¬ The Power supply unit is for single-phase electric networks, protected from surges
up to 6 kV in differential mode and 10 kV in common mode
¬ The T.I.R.Ex.optic system developed by GEWISS with lenses in PMMA HT (high-
transparency), gives complete control over the light beam, allowing for great
flexibility for any project design, with high qualitative and quantitative performance
¬ It consists of 2 modules, each with a bleed and anti-condensation valve, protected
from accidental impact
¬ The rotation system between the brackets and optic modules is of a truncated-
conical aluminium type, with an integrated goniometer in the bracket for easy
control of orientation, and screw and grub screw fastening, which guarantees the
secure fixing of each individual module over time
L Graphite grey / Graphite grey /
Scan the QR-code for the
latest information
Identifying and classifying our optics
590
