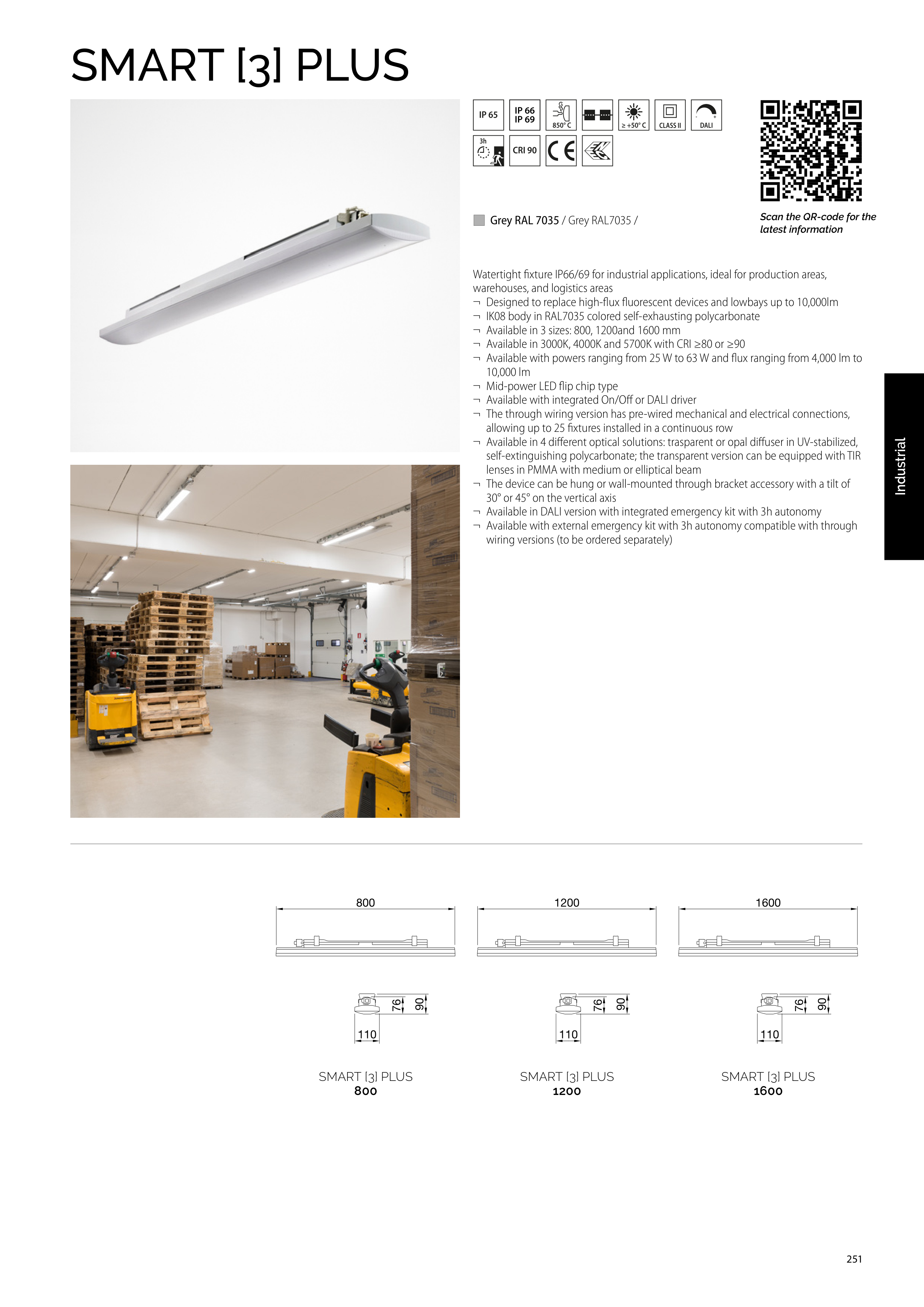

SMART [3] PLUS
IP 66
IP 69
850° C
≥ +50° C
110
90
76
1600
110
90
76
1200
110
90
76
800
SMART [3] PLUS
1600
SMART [3] PLUS
1200
SMART [3] PLUS
800
Industrial
Watertight fixture IP66/69 for industrial applications, ideal for production areas,
warehouses, and logistics areas
¬ Designed to replace high-flux fluorescent devices and lowbays up to 10,000lm
¬ IK08 body in RAL7035 colored self-exhausting polycarbonate
¬ Available in 3 sizes: 800, 1200and 1600 mm
¬ Available in 3000K, 4000K and 5700K with CRI ≥80 or ≥90
¬ Available with powers ranging from 25 W to 63 W and flux ranging from 4,000 lm to
10,000 lm
¬ Mid-power LED flip chip type
¬ Available with integrated On/Off or DALI driver
¬ The through wiring version has pre-wired mechanical and electrical connections,
allowing up to 25 fixtures installed in a continuous row
¬ Available in 4 different optical solutions: trasparent or opal diffuser in UV-stabilized,
self-extinguishing polycarbonate; the transparent version can be equipped with TIR
lenses in PMMA with medium or elliptical beam
¬ The device can be hung or wall-mounted through bracket accessory with a tilt of
30° or 45° on the vertical axis
¬ Available in DALI version with integrated emergency kit with 3h autonomy
¬ Available with external emergency kit with 3h autonomy compatible with through
wiring versions (to be ordered separately)
J Grey RAL 7035 / Grey RAL7035 /
Scan the QR-code for the
latest information
251
