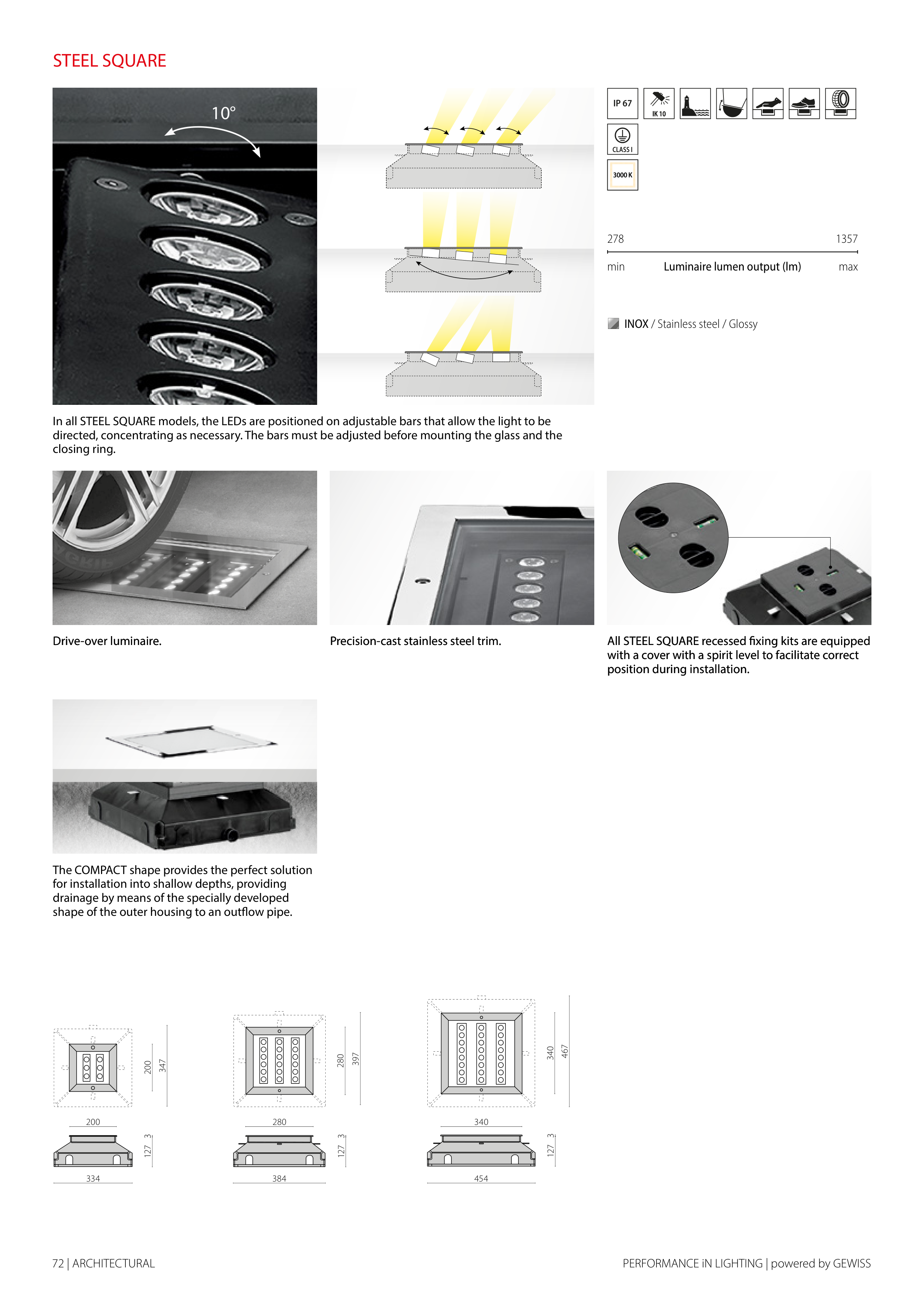

STEEL SQUARE
3
127
280
384
280
397
3
127
340
454
340
467
3
127
200
334
200
347
10°
278
1357
max
min
Drive-over luminaire.
Precision-cast stainless steel trim.
All STEEL SQUARE recessed fixing kits are equipped
with a cover with a spirit level to facilitate correct
position during installation.
In all STEEL SQUARE models, the LEDs are positioned on adjustable bars that allow the light to be
directed, concentrating as necessary. The bars must be adjusted before mounting the glass and the
closing ring.
Drive-over luminaire.
Precision-cast stainless steel trim.
All STEEL SQUARE recessed fixing kits are equipped
with a cover with a spirit level to facilitate correct
position during installation.
The COMPACT shape provides the perfect solution
for installation into shallow depths, providing
drainage by means of the specially developed
shape of the outer housing to an outflow pipe.
B INOX / Stainless steel / Glossy
Luminaire lumen output (lm)
