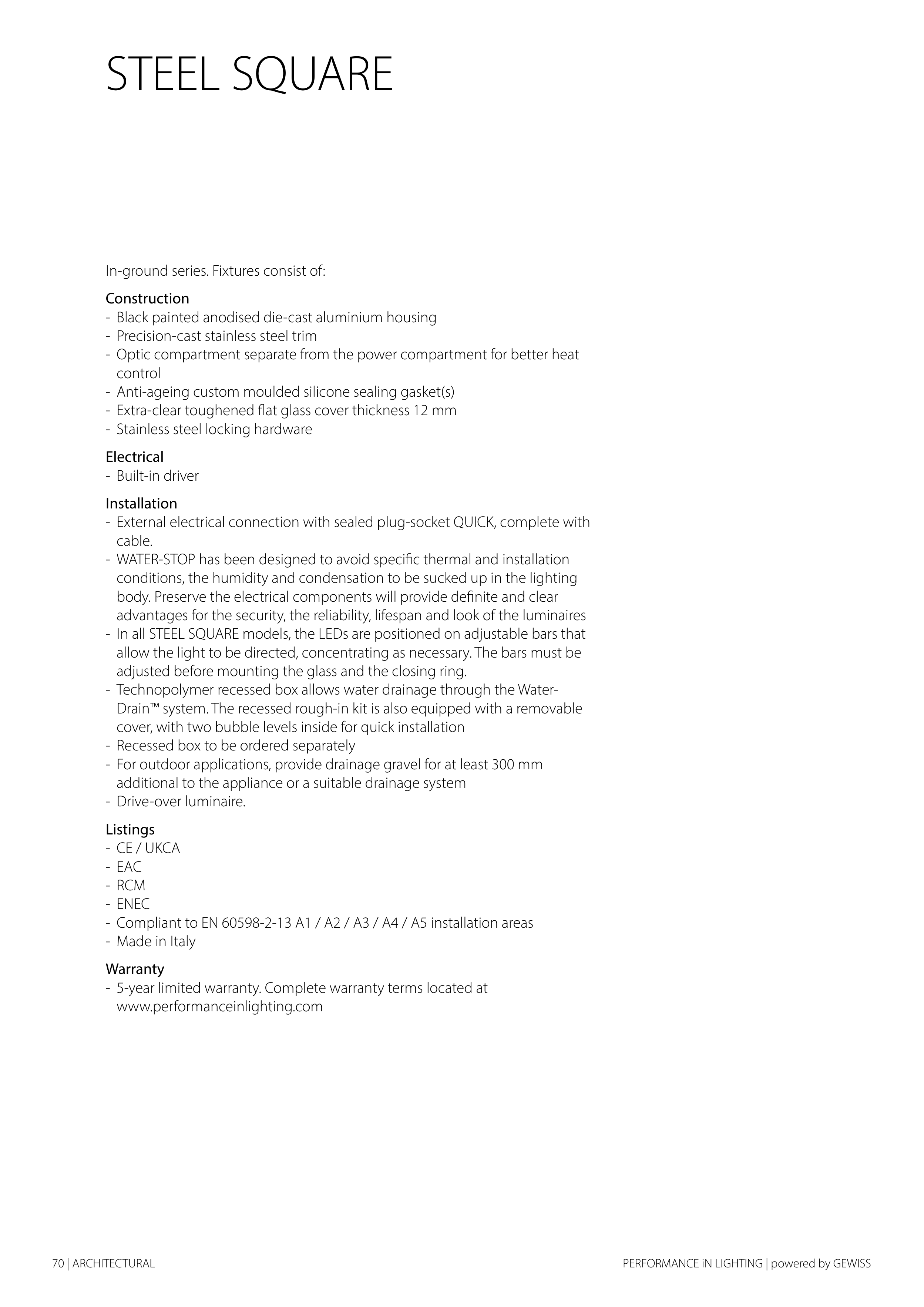

In-ground series. Fixtures consist of:
Construction
- Black painted anodised die-cast aluminium housing
- Precision-cast stainless steel trim
- Optic compartment separate from the power compartment for better heat
control
- Anti-ageing custom moulded silicone sealing gasket(s)
- Extra-clear toughened flat glass cover thickness 12 mm
- Stainless steel locking hardware
Electrical
- Built-in driver
Installation
- External electrical connection with sealed plug-socket QUICK, complete with
cable.
- WATER-STOP has been designed to avoid specific thermal and installation
conditions, the humidity and condensation to be sucked up in the lighting
body. Preserve the electrical components will provide definite and clear
advantages for the security, the reliability, lifespan and look of the luminaires
- In all STEEL SQUARE models, the LEDs are positioned on adjustable bars that
allow the light to be directed, concentrating as necessary. The bars must be
adjusted before mounting the glass and the closing ring.
- Technopolymer recessed box allows water drainage through the Water-
Drain™ system. The recessed rough-in kit is also equipped with a removable
cover, with two bubble levels inside for quick installation
- Recessed box to be ordered separately
- For outdoor applications, provide drainage gravel for at least 300 mm
additional to the appliance or a suitable drainage system
- Drive-over luminaire.
Listings
- CE / UKCA
- EAC
- RCM
- ENEC
- Compliant to EN 60598-2-13 A1 / A2 / A3 / A4 / A5 installation areas
- Made in Italy
Warranty
- 5-year limited warranty. Complete warranty terms located at
www.performanceinlighting.com
STEEL SQUARE
