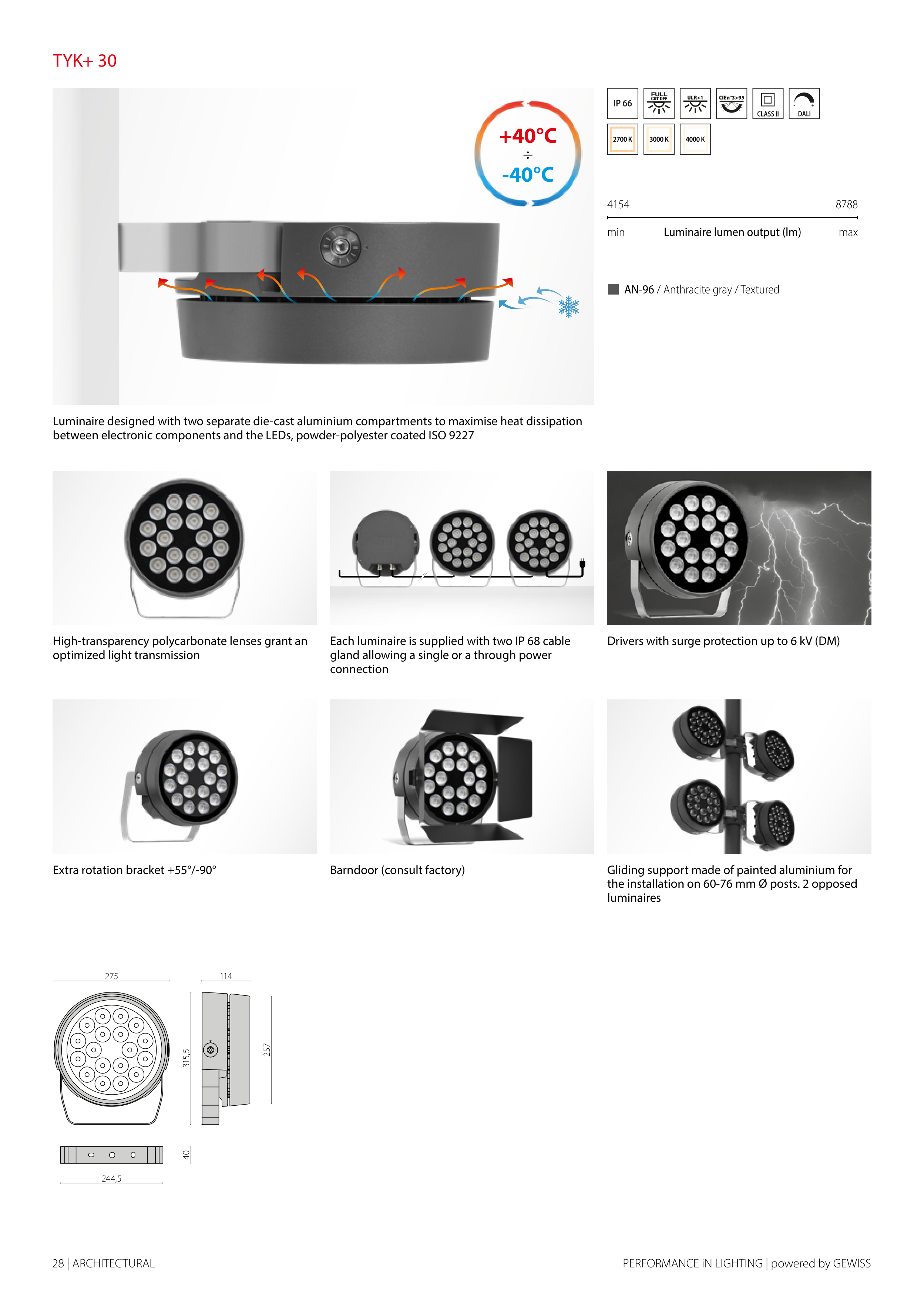

TYK+ 30
275
244,5
114
315,5
40
257
4154
8788
max
min
+40°C
÷
-40°C
Each luminaire is supplied with two IP 68 cable
gland allowing a single or a through power
connection
High-transparency polycarbonate lenses grant an
optimized light transmission
Drivers with surge protection up to 6 kV (DM)
Luminaire designed with two separate die-cast aluminium compartments to maximise heat dissipation
between electronic components and the LEDs, powder-polyester coated ISO 9227
Barndoor (consult factory)
Extra rotation bracket +55°/-90°
Gliding support made of painted aluminium for
the installation on 60-76 mm Ø posts. 2 opposed
luminaires
L AN-96 / Anthracite gray / Textured
Luminaire lumen output (lm)
