250 | ARCHITECTURAL
PERFORMANCE iN LIGHTING | powered by GEWISS

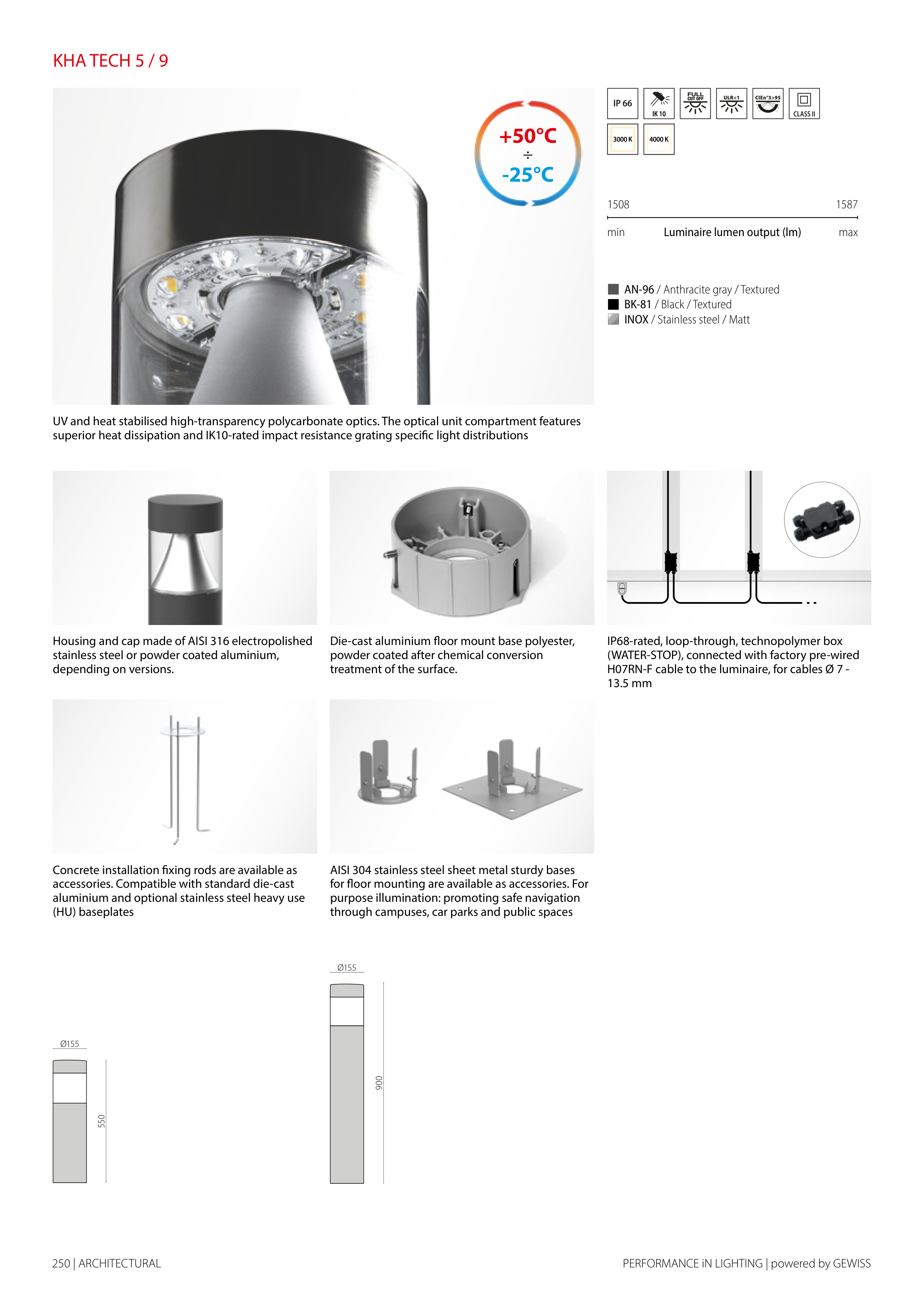

KHA TECH 5 / 9
550
Ø155
900
Ø155
1508
1587
max
min
+50°C
÷
-25°C
Die-cast aluminium floor mount base polyester,
powder coated after chemical conversion
treatment of the surface.
Housing and cap made of AISI 316 electropolished
stainless steel or powder coated aluminium,
depending on versions.
IP68-rated, loop-through, technopolymer box
(WATER-STOP), connected with factory pre-wired
H07RN-F cable to the luminaire, for cables Ø 7 -
13.5 mm
Concrete installation fixing rods are available as
accessories. Compatible with standard die-cast
aluminium and optional stainless steel heavy use
(HU) baseplates
L AN-96 / Anthracite gray / Textured
o BK-81 / Black / Textured
K INOX / Stainless steel / Matt
Luminaire lumen output (lm)
UV and heat stabilised high-transparency polycarbonate optics. The optical unit compartment features
superior heat dissipation and IK10-rated impact resistance grating specific light distributions
AISI 304 stainless steel sheet metal sturdy bases
for floor mounting are available as accessories. For
purpose illumination: promoting safe navigation
through campuses, car parks and public spaces
