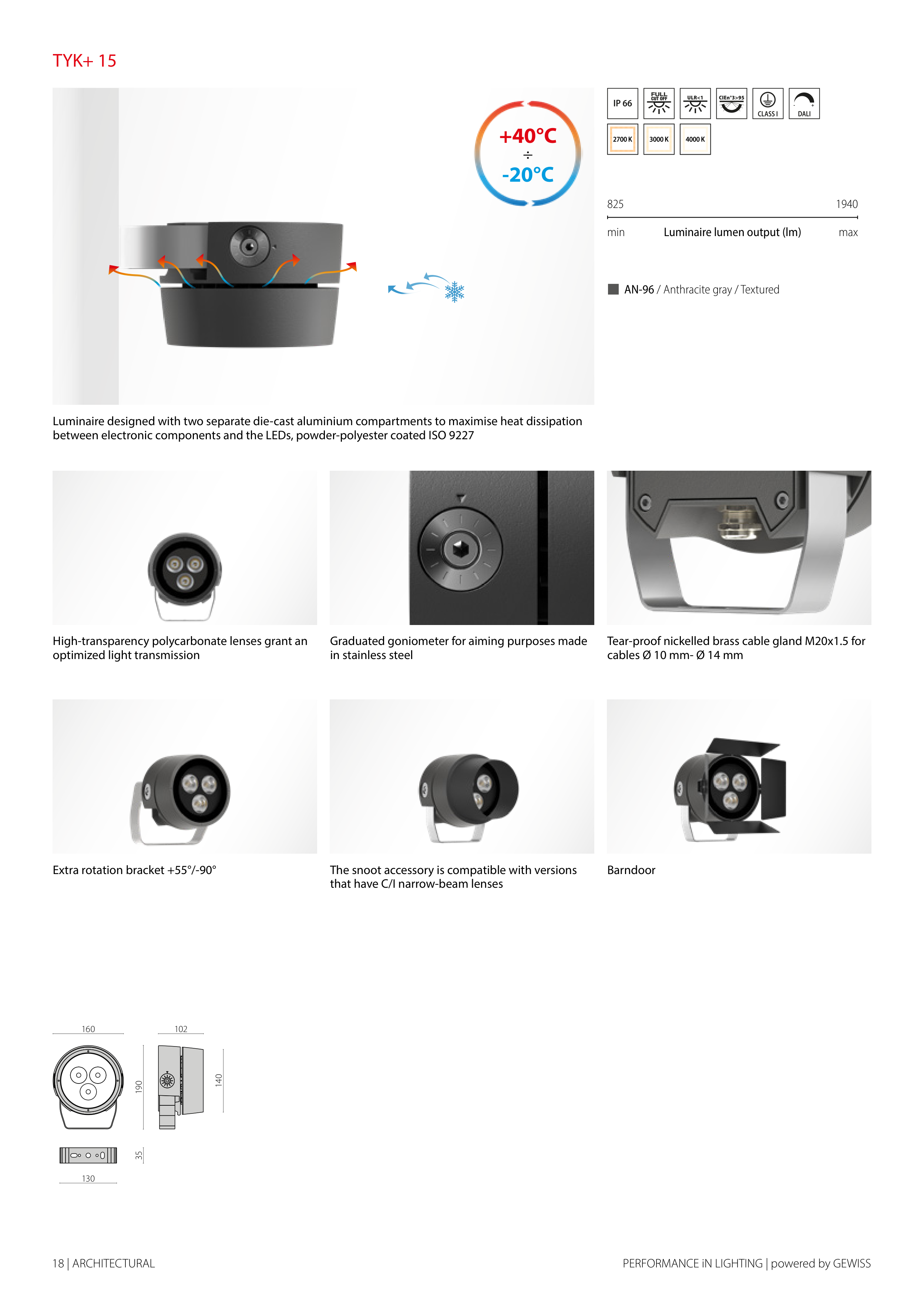

TYK+ 15
160
102
130
190
140
35
825
1940
max
min
+40°C
÷
-20°C
Luminaire designed with two separate die-cast aluminium compartments to maximise heat dissipation
between electronic components and the LEDs, powder-polyester coated ISO 9227
The snoot accessory is compatible with versions
that have C/I narrow-beam lenses
Graduated goniometer for aiming purposes made
in stainless steel
High-transparency polycarbonate lenses grant an
optimized light transmission
Barndoor
Extra rotation bracket +55°/-90°
Tear-proof nickelled brass cable gland M20x1.5 for
cables Ø 10 mm- Ø 14 mm
L AN-96 / Anthracite gray / Textured
Luminaire lumen output (lm)
