190 | ARCHITECTURAL
PERFORMANCE iN LIGHTING | powered by GEWISS

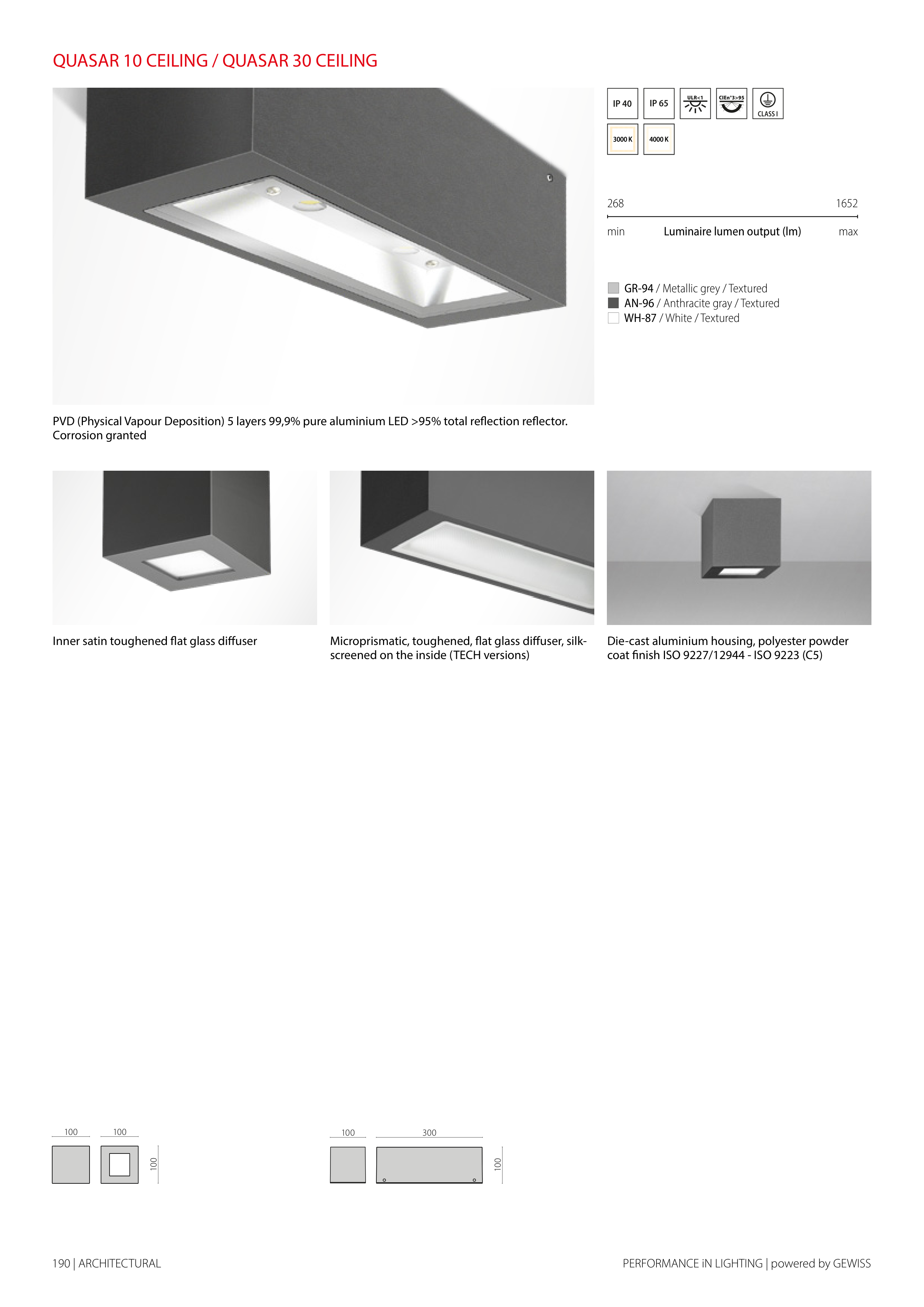

QUASAR 10 CEILING / QUASAR 30 CEILING
100
100
100
100
300
100
268
1652
max
min
Inner satin toughened flat glass diffuser
PVD (Physical Vapour Deposition) 5 layers 99,9% pure aluminium LED >95% total reflection reflector.
Corrosion granted
Die-cast aluminium housing, polyester powder
coat finish ISO 9227/12944 - ISO 9223 (C5)
Microprismatic, toughened, flat glass diffuser, silk-
screened on the inside (TECH versions)
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
Luminaire lumen output (lm)
