168 | ARCHITECTURAL
PERFORMANCE iN LIGHTING | powered by GEWISS

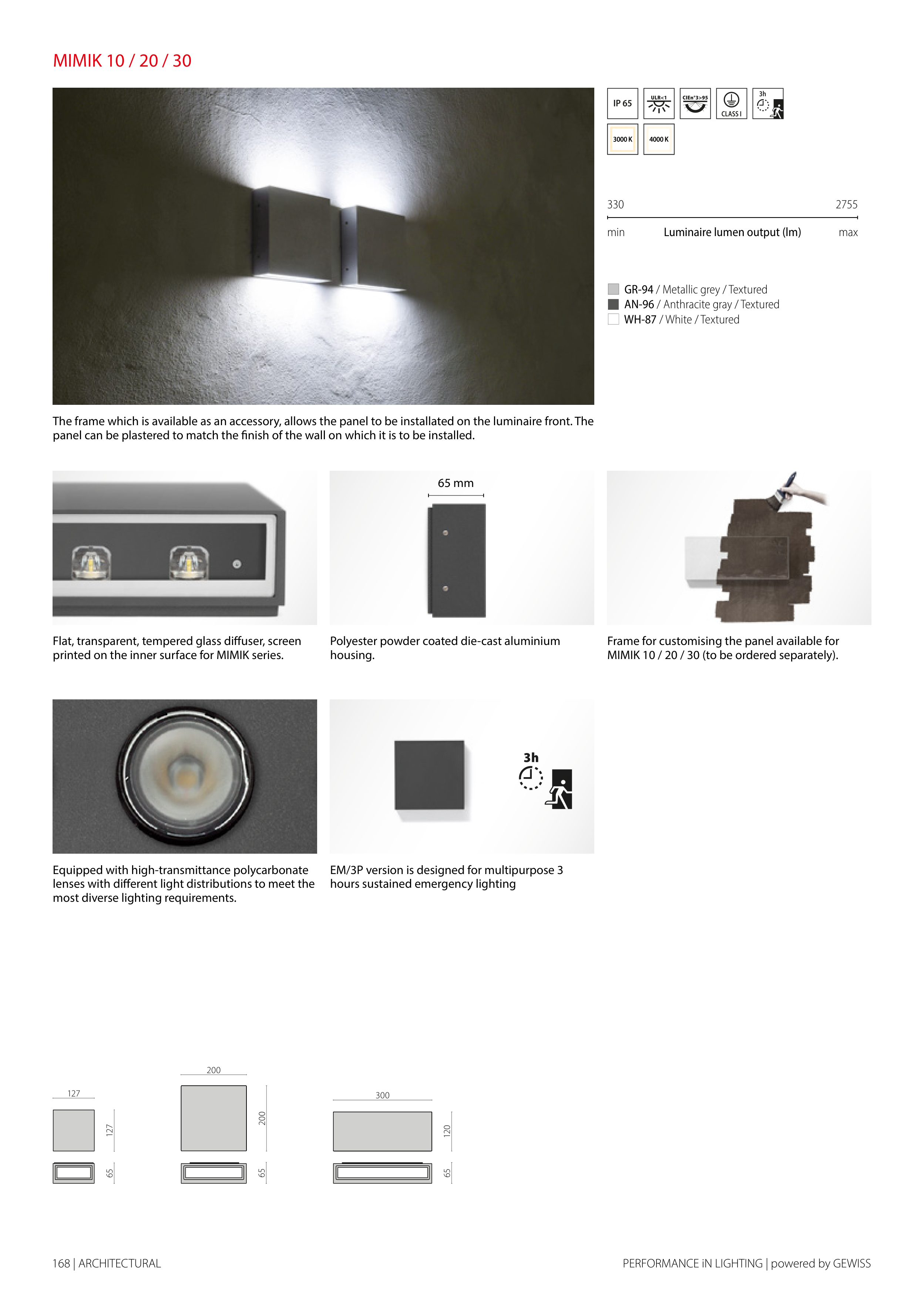

MIMIK 10 / 20 / 30
65
127
127
200
65
200
300
65
120
65 mm
330
2755
max
min
The frame which is available as an accessory, allows the panel to be installated on the luminaire front. The
panel can be plastered to match the finish of the wall on which it is to be installed.
Flat, transparent, tempered glass diffuser, screen
printed on the inner surface for MIMIK series.
Polyester powder coated die-cast aluminium
housing.
Frame for customising the panel available for
MIMIK 10 / 20 / 30 (to be ordered separately).
Luminaire lumen output (lm)
I GR-94 / Metallic grey / Textured
L AN-96 / Anthracite gray / Textured
T WH-87 / White / Textured
EM/3P version is designed for multipurpose 3
hours sustained emergency lighting
Equipped with high-transmittance polycarbonate
lenses with different light distributions to meet the
most diverse lighting requirements.
