108 | ARCHITECTURAL
PERFORMANCE iN LIGHTING | powered by GEWISS

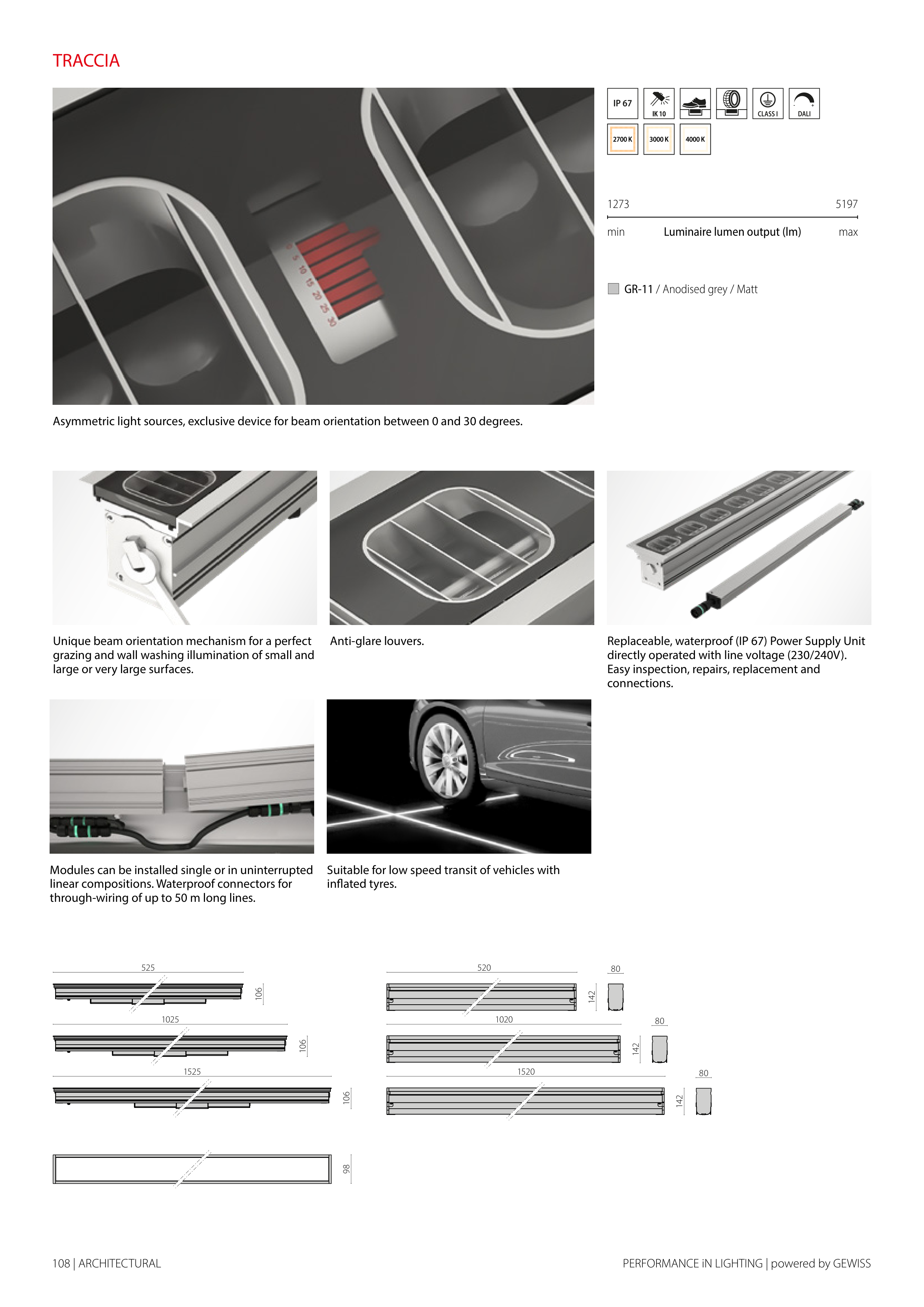

TRACCIA
525
520
1025
1020
1525
1520
80
80
80
142
106
142
106
142
106
98
1273
5197
max
min
Asymmetric light sources, exclusive device for beam orientation between 0 and 30 degrees.
Replaceable, waterproof (IP 67) Power Supply Unit
directly operated with line voltage (230/240V).
Easy inspection, repairs, replacement and
connections.
Modules can be installed single or in uninterrupted
linear compositions. Waterproof connectors for
through-wiring of up to 50 m long lines.
Unique beam orientation mechanism for a perfect
grazing and wall washing illumination of small and
large or very large surfaces.
Anti-glare louvers.
Suitable for low speed transit of vehicles with
inflated tyres.
F GR-11 / Anodised grey / Matt
Luminaire lumen output (lm)
