Max 15 m
TYK+ 20
234
203,5
114
274,5
40
216

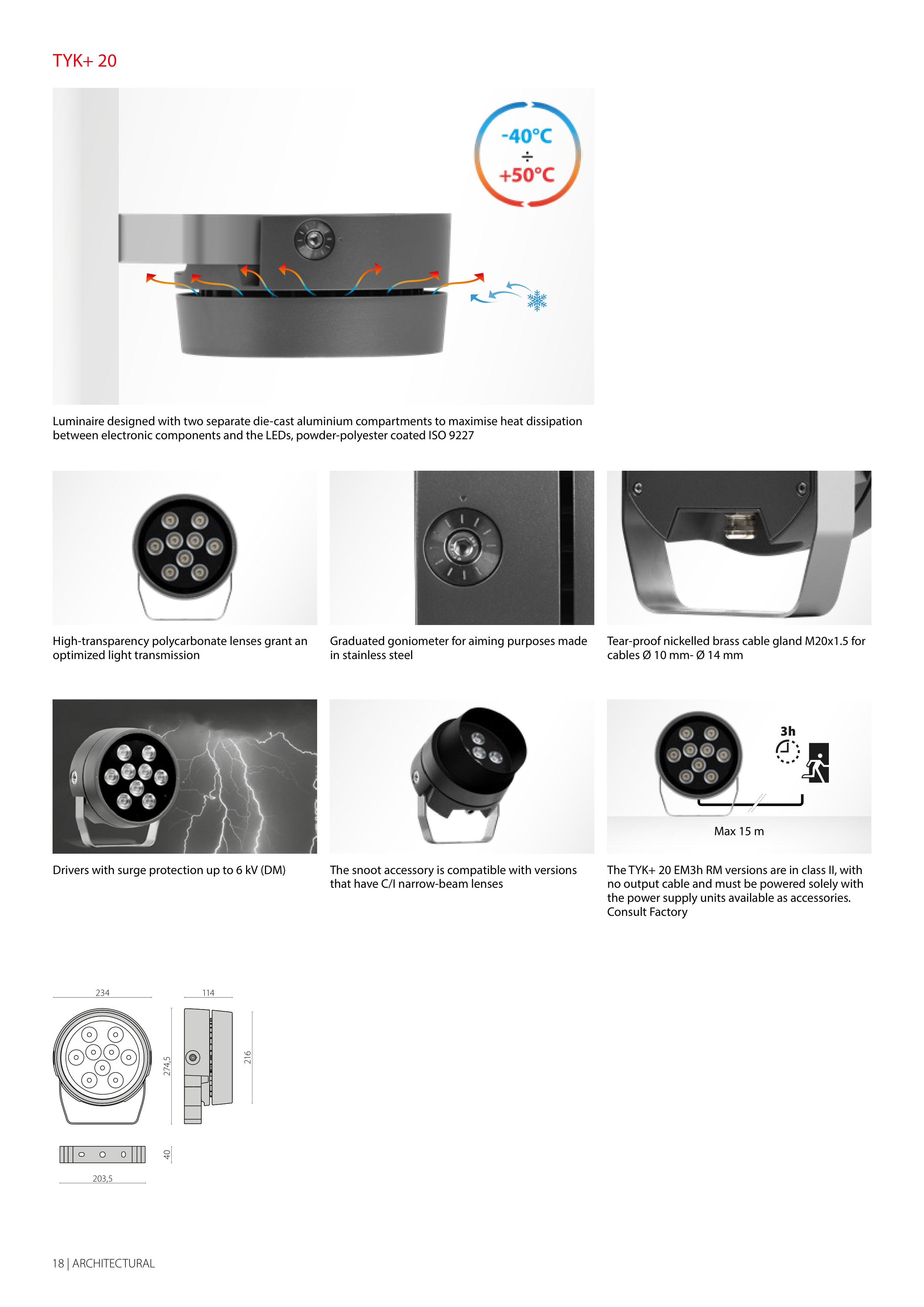

Luminaire designed with two separate die-cast aluminium compartments to maximise heat dissipation
between electronic components and the LEDs, powder-polyester coated ISO 9227
Tear-proof nickelled brass cable gland M20x1.5 for
cables Ø 10 mm- Ø 14 mm
Drivers with surge protection up to 6 kV (DM)
The snoot accessory is compatible with versions
that have C/I narrow-beam lenses
Graduated goniometer for aiming purposes made
in stainless steel
High-transparency polycarbonate lenses grant an
optimized light transmission
The TYK+ 20 EM3h RM versions are in class II, with
no output cable and must be powered solely with
the power supply units available as accessories.
Consult Factory
