182 | ARCHITECTURAL

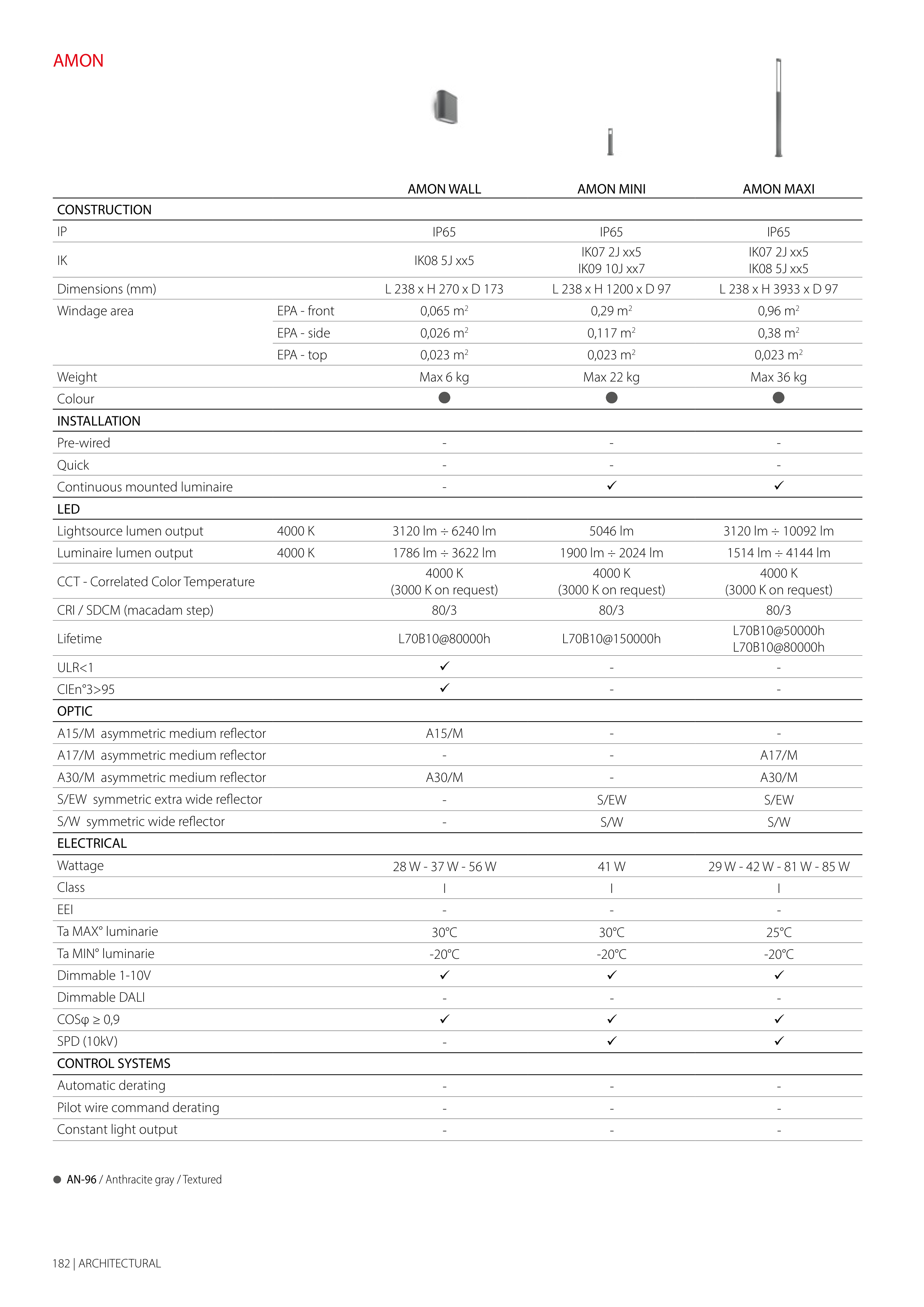

AMON
AMON WALL
AMON MINI
AMON MAXI
IP65
IP65
IP65
IK08 5J xx5
IK07 2J xx5
IK09 10J xx7
IK07 2J xx5
IK08 5J xx5
L 238 x H 270 x D 173
L 238 x H 1200 x D 97
L 238 x H 3933 x D 97
0,065 m2
0,29 m2
0,96 m2
0,026 m2
0,117 m2
0,38 m2
0,023 m2
0,023 m2
0,023 m2
Max 6 kg
Max 22 kg
Max 36 kg
n
n
n
-
-
-
-
-
-
-
ü
ü
3120 lm ÷ 6240 lm
5046 lm
3120 lm ÷ 10092 lm
1786 lm ÷ 3622 lm
1900 lm ÷ 2024 lm
1514 lm ÷ 4144 lm
4000 K
(3000 K on request)
4000 K
(3000 K on request)
4000 K
(3000 K on request)
80/3
80/3
80/3
L70B10@80000h
L70B10@150000h
L70B10@50000h
L70B10@80000h
ü
-
-
ü
-
-
A15/M
-
-
-
-
A17/M
A30/M
-
A30/M
-
S/EW
S/EW
-
S/W
S/W
28 W - 37 W - 56 W
41 W
29 W - 42 W - 81 W - 85 W
I
I
I
-
-
-
30°C
30°C
25°C
-20°C
-20°C
-20°C
ü
ü
ü
-
-
-
ü
ü
ü
-
ü
ü
-
-
-
-
-
-
-
-
-
CONSTRUCTION
IP
IK
Dimensions (mm)
Windage area
EPA - front
EPA - side
EPA - top
Weight
Colour
INSTALLATION
Pre-wired
Quick
Continuous mounted luminaire
LED
Lightsource lumen output
4000 K
Luminaire lumen output
4000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
ULR<1
CIEn°3>95
OPTIC
A15/M asymmetric medium reflector
A17/M asymmetric medium reflector
A30/M asymmetric medium reflector
S/EW symmetric extra wide reflector
S/W symmetric wide reflector
ELECTRICAL
Wattage
Class
EEI
Ta MAX° luminarie
Ta MIN° luminarie
Dimmable 1-10V
Dimmable DALI
COSφ ≥ 0,9
SPD (10kV)
CONTROL SYSTEMS
Automatic derating
Pilot wire command derating
Constant light output
n AN-96 / Anthracite gray / Textured
