144 | ARCHITECTURAL

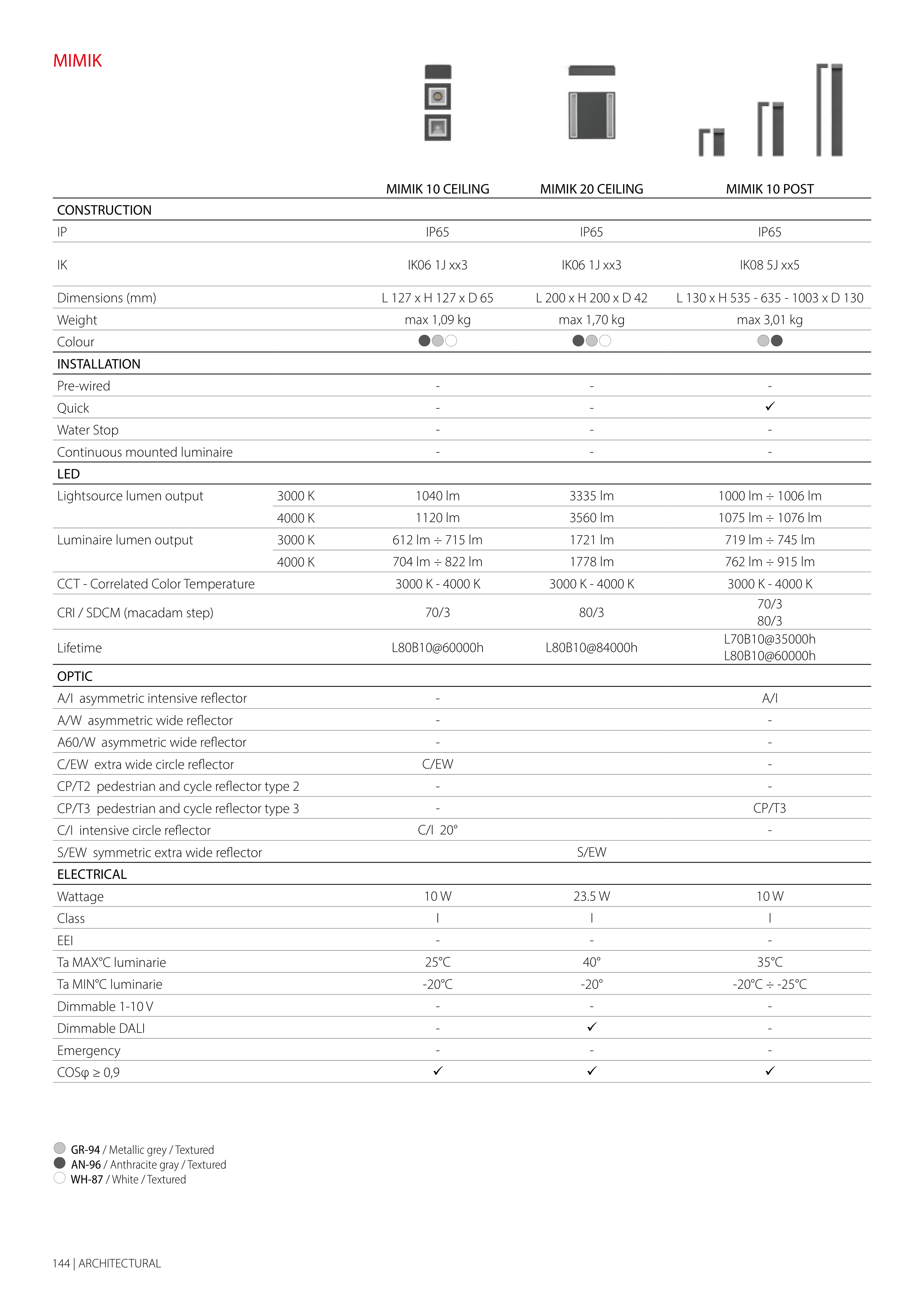

MIMIK
MIMIK 10 CEILING
MIMIK 20 CEILING
MIMIK 10 POST
IP65
IP65
IP65
IK06 1J xx3
IK06 1J xx3
IK08 5J xx5
L 127 x H 127 x D 65
L 200 x H 200 x D 42
L 130 x H 535 - 635 - 1003 x D 130
max 1,09 kg
max 1,70 kg
max 3,01 kg
nit
nit
in
nit
tin
int
n
-
-
-
-
-
ü
-
-
-
-
-
-
ü
1040 lm
3335 lm
1000 lm ÷ 1006 lm
1120 lm
3560 lm
1075 lm ÷ 1076 lm
612 lm ÷ 715 lm
1721 lm
719 lm ÷ 745 lm
704 lm ÷ 822 lm
1778 lm
762 lm ÷ 915 lm
3000 K - 4000 K
3000 K - 4000 K
3000 K - 4000 K
70/3
80/3
70/3
80/3
L80B10@60000h
L80B10@84000h
L70B10@35000h
L80B10@60000h
-
A/I
-
-
-
-
C/EW
-
-
-
-
CP/T3
C/I 20°
-
S/EW
10 W
23.5 W
10 W
I
I
I
-
-
-
25°C
40°
35°C
-20°C
-20°
-20°C ÷ -25°C
-
-
-
-
ü
-
ü
-
-
-
ü
ü
ü
ü
ü
ü
ü
CONSTRUCTION
IP
IK
Dimensions (mm)
Weight
Colour
INSTALLATION
Pre-wired
Quick
Water Stop
Continuous mounted luminaire
LED
Lightsource lumen output
3000 K
4000 K
Luminaire lumen output
3000 K
4000 K
CCT - Correlated Color Temperature
CRI / SDCM (macadam step)
Lifetime
OPTIC
A/I asymmetric intensive reflector
A/W asymmetric wide reflector
A60/W asymmetric wide reflector
C/EW extra wide circle reflector
CP/T2 pedestrian and cycle reflector type 2
CP/T3 pedestrian and cycle reflector type 3
C/I intensive circle reflector
S/EW symmetric extra wide reflector
ELECTRICAL
Wattage
Class
EEI
Ta MAX°C luminarie
Ta MIN°C luminarie
Dimmable 1-10 V
Dimmable DALI
Emergency
COSφ ≥ 0,9
i GR-94 / Metallic grey / Textured
n AN-96 / Anthracite gray / Textured
t WH-87 / White / Textured
