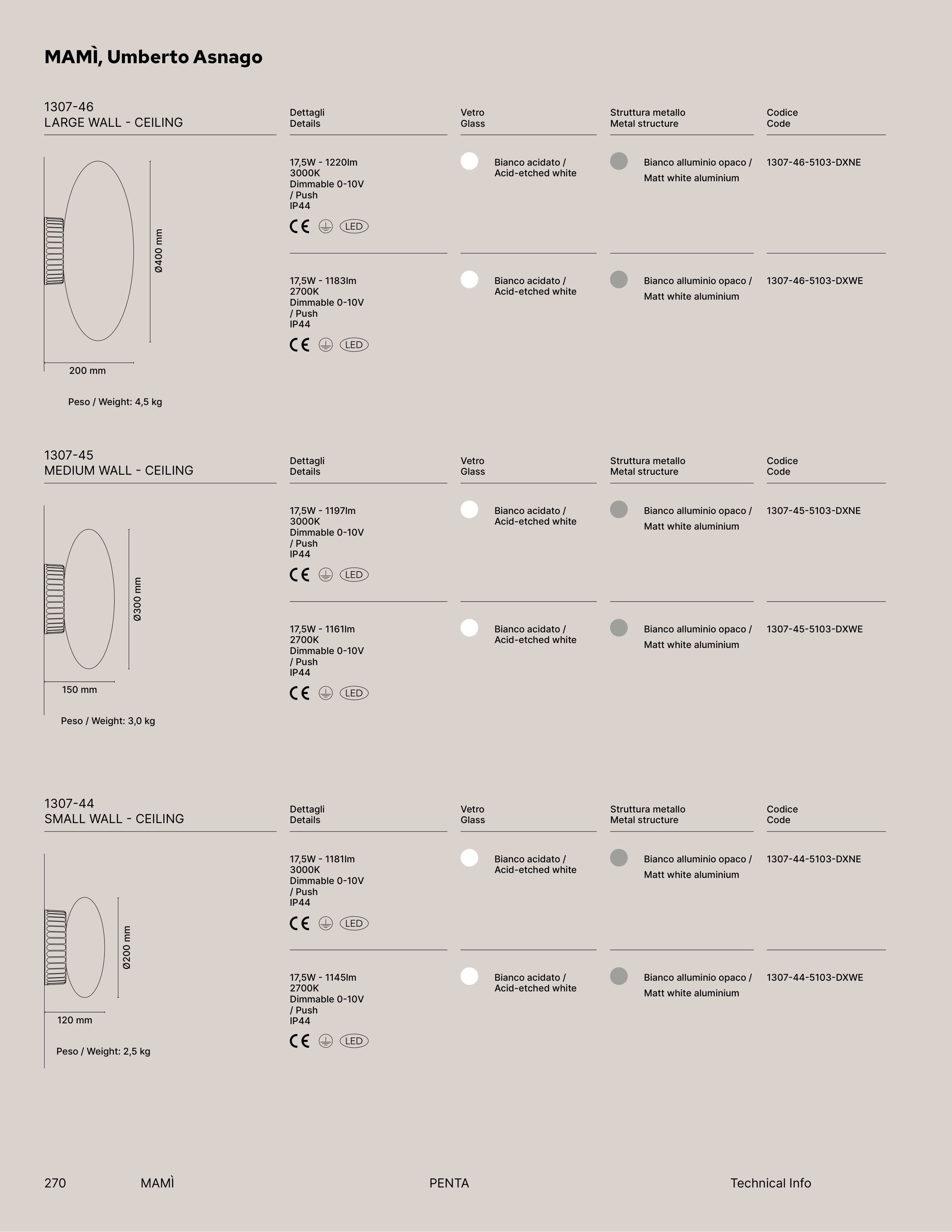

MAMÌ, Umberto Asnago
200 mm
Ø400 mm
1307-46
LARGE WALL - CEILING
17,5W - 1220lm
3000K
Dimmable 0-10V
/ Push
IP44
17,5W - 1183lm
2700K
Dimmable 0-10V
/ Push
IP44
Codice
Code
Dettagli
Details
1307-46-5103-DXNE
1307-46-5103-DXWE
Bianco acidato /
Acid-etched white
Bianco acidato /
Acid-etched white
Struttura metallo
Metal structure
Vetro
Glass
Bianco alluminio opaco /
Matt white aluminium
Bianco alluminio opaco /
Matt white aluminium
150 mm
Ø300 mm
1307-45
MEDIUM WALL - CEILING
17,5W - 1197lm
3000K
Dimmable 0-10V
/ Push
IP44
17,5W - 1161lm
2700K
Dimmable 0-10V
/ Push
IP44
Codice
Code
Dettagli
Details
1307-45-5103-DXNE
1307-45-5103-DXWE
Bianco acidato /
Acid-etched white
Bianco acidato /
Acid-etched white
Struttura metallo
Metal structure
Vetro
Glass
Bianco alluminio opaco /
Matt white aluminium
Bianco alluminio opaco /
Matt white aluminium
120 mm
Ø200 mm
1307-44
SMALL WALL - CEILING
17,5W - 1181lm
3000K
Dimmable 0-10V
/ Push
IP44
17,5W - 1145lm
2700K
Dimmable 0-10V
/ Push
IP44
Codice
Code
Dettagli
Details
1307-44-5103-DXNE
1307-44-5103-DXWE
Bianco acidato /
Acid-etched white
Bianco acidato /
Acid-etched white
Struttura metallo
Metal structure
Vetro
Glass
Bianco alluminio opaco /
Matt white aluminium
Bianco alluminio opaco /
Matt white aluminium
Peso / Weight: 2,5 kg
Peso / Weight: 3,0 kg
Peso / Weight: 4,5 kg
PENTA
MAMÌ
Technical Info
270
