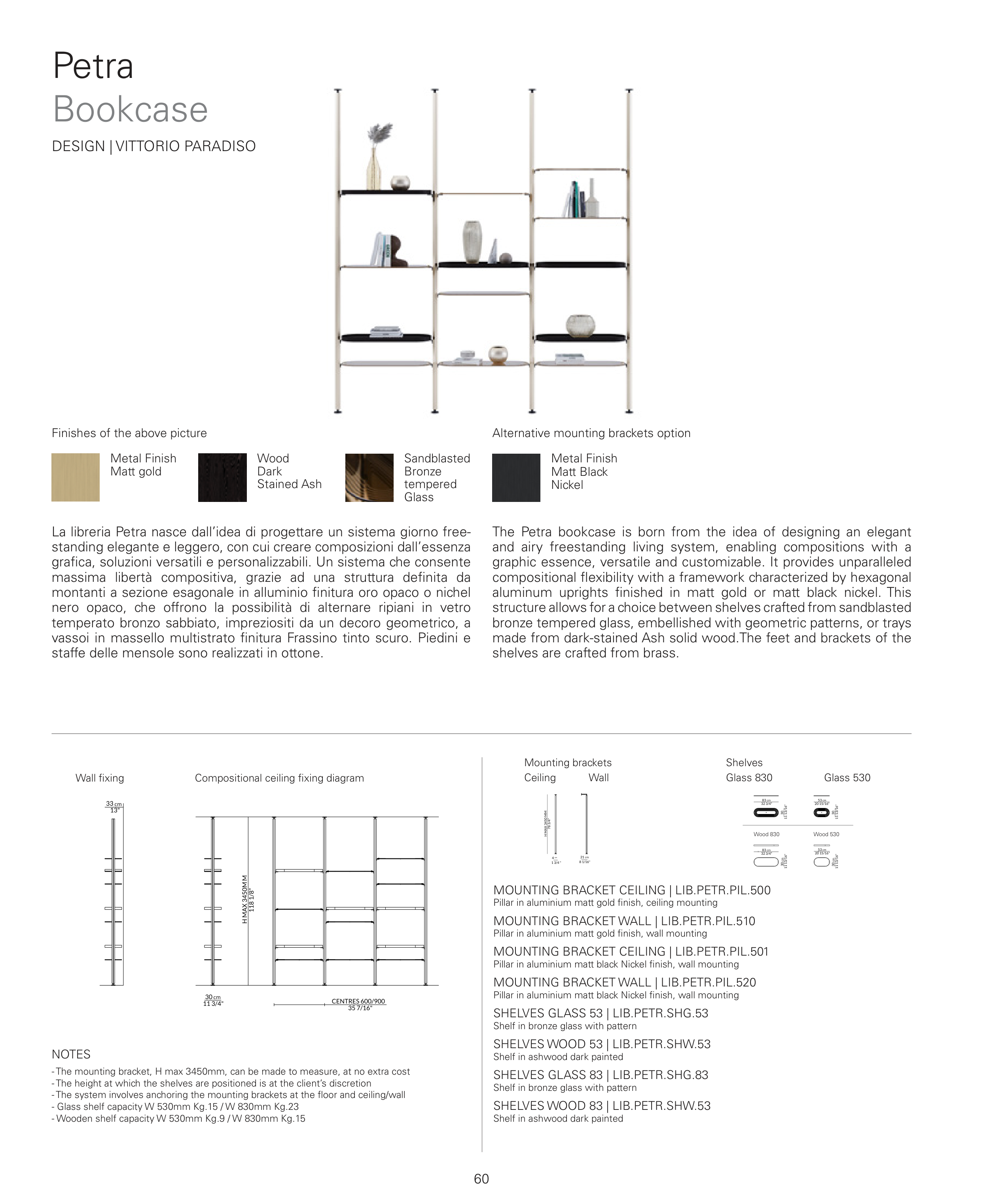

60
Petra
Bookcase
La libreria Petra nasce dall’idea di progettare un sistema giorno free-
standing elegante e leggero, con cui creare composizioni dall’essenza
grafica, soluzioni versatili e personalizzabili. Un sistema che consente
massima libertà compositiva, grazie ad una struttura definita da
montanti a sezione esagonale in alluminio finitura oro opaco o nichel
nero opaco, che offrono la possibilità di alternare ripiani in vetro
temperato bronzo sabbiato, impreziositi da un decoro geometrico, a
vassoi in massello multistrato finitura Frassino tinto scuro. Piedini e
staffe delle mensole sono realizzati in ottone.
The Petra bookcase is born from the idea of designing an elegant
and airy freestanding living system, enabling compositions with a
graphic essence, versatile and customizable. It provides unparalleled
compositional flexibility with a framework characterized by hexagonal
aluminum uprights finished in matt gold or matt black nickel. This
structure allows for a choice between shelves crafted from sandblasted
bronze tempered glass, embellished with geometric patterns, or trays
made from dark-stained Ash solid wood.The feet and brackets of the
shelves are crafted from brass.
Finishes of the above picture
NOTES
- The mounting bracket, H max 3450mm, can be made to measure, at no extra cost
- The height at which the shelves are positioned is at the client’s discretion
- The system involves anchoring the mounting brackets at the floor and ceiling/wall
- Glass shelf capacity W 530mm Kg.15 / W 830mm Kg.23
- Wooden shelf capacity W 530mm Kg.9 / W 830mm Kg.15
MOUNTING BRACKET CEILING | LIB.PETR.PIL.500
Pillar in aluminium matt gold finish, ceiling mounting
MOUNTING BRACKET WALL | LIB.PETR.PIL.510
Pillar in aluminium matt gold finish, wall mounting
MOUNTING BRACKET CEILING | LIB.PETR.PIL.501
Pillar in aluminium matt black Nickel finish, wall mounting
MOUNTING BRACKET WALL | LIB.PETR.PIL.520
Pillar in aluminium matt black Nickel finish, wall mounting
SHELVES GLASS 53 | LIB.PETR.SHG.53
Shelf in bronze glass with pattern
SHELVES WOOD 53 | LIB.PETR.SHW.53
Shelf in ashwood dark painted
SHELVES GLASS 83 | LIB.PETR.SHG.83
Shelf in bronze glass with pattern
SHELVES WOOD 83 | LIB.PETR.SHW.53
Shelf in ashwood dark painted
DESIGN | VITTORIO PARADISO
Metal Finish
Matt gold
Sandblasted
Bronze
tempered
Glass
Wood
Dark
Stained Ash
Compositional ceiling fixing diagram
Wall fixing
30
11 3/4"
CENTRES 600/900
35 7/16"
33
13"
H MAX 3450M M
118 1/8"
cm
cm
Mounting brackets
Shelves
Ceiling
Glass 830
Wood 830
Wall
Glass 530
Wood 530
H MAX 3450 MM
78 3/4"
4
1 3/4 "
21
8 1/16"
30
11 13/16"
32 3/4"
30
11 13/16"
20 15/16"
11 13/16"
30
30
11 13/16"
53
53
20 15/16"
83
83
32 3/4"
cm
cm
cm
cm
cm
cm
cm
cm
Metal Finish
Matt Black
Nickel
Alternative mounting brackets option
