213
LED TENSIONE COSTANTE / LED CONSTANT VOLTAGE
XM006.050.0410
XM006.012.0410
YLR007.022.0510 (2700K)
YLR007.022.0410 (3000K)
YLR007.022.0610 (4000K)
YLR006.017.0510 (2700K)
YLR006.017.0410 (3000K)
YLR006.017.0610 (4000K)
YLR005.010.0510 (2700K)
YLR005.010.0410 (3000K)
YLR005.010.0610 (4000K)
YLR008.010.0510 (2700K)
YLR008.010.0410 (3000K)
TECHNICAL
INFORMATION
WIRING
DIAGRAM
1
PAG. 218
PAG. 219
TECHNICAL
INFORMATION
WIRING
DIAGRAM
2
PAG. 218
PAG. 219
TECHNICAL
INFORMATION
WIRING
DIAGRAM
2
PAG. 218
PAG. 219
TECHNICAL
INFORMATION
WIRING
DIAGRAM
1
PAG. 218
PAG. 219
TECHNICAL
INFORMATION
WIRING
DIAGRAM
2
PAG. 218
PAG. 219
TECHNICAL
INFORMATION
WIRING
DIAGRAM
2
PAG. 218
PAG. 219
Modulo / module 500 mm 64LED
8,6W 3000K Ra90 24V 1140lm
62,5mm 2280 lm/m
STRIP ROLL 5 m 2700/3000/4000K Ra90 24V
4,2 mm
5 x 240 LED/m - 5 x 22 W/m
5 x 2490 lm/m (2700K)
5 x 2700 lm/m (3000K)
5 x 2750 lm/m (4000K)
STRIP ROLL IP67 5 m 2700/3000K Ra90 24V
5 mm
5 x 200 LED/m - 5 x 9,6 W/m
5 x 1100 lm/m (2700K)
5 x 1220 lm/m (3000K)
STRIP ROLL 5 m 2700/3000/4000K Ra90 24V
5 mm
5 x 200 LED/m - 5 x 16,8 W/m
5 x 1900 lm/m (2700K)
5 x 2070 lm/m (3000K)
5 x 2220 lm/m (4000K)
STRIP ROLL 5 m 2700/3000/4000K Ra90 24V
5 mm
5 x 200 LED/m - 5 x 9,6 W/m
5 x 1100 lm/m (2700K)
5 x 1220 lm/m (3000K)
5 x 1300 lm/m (4000K)
Modulo / module 125 mm 16LED
2,15W 3000K Ra90 24V 285lm
62,5mm 2280 lm/m
See Matrix page 217
See Matrix page 217
See Matrix page 217
See Matrix page 217
See Matrix page 217
See Matrix page 217

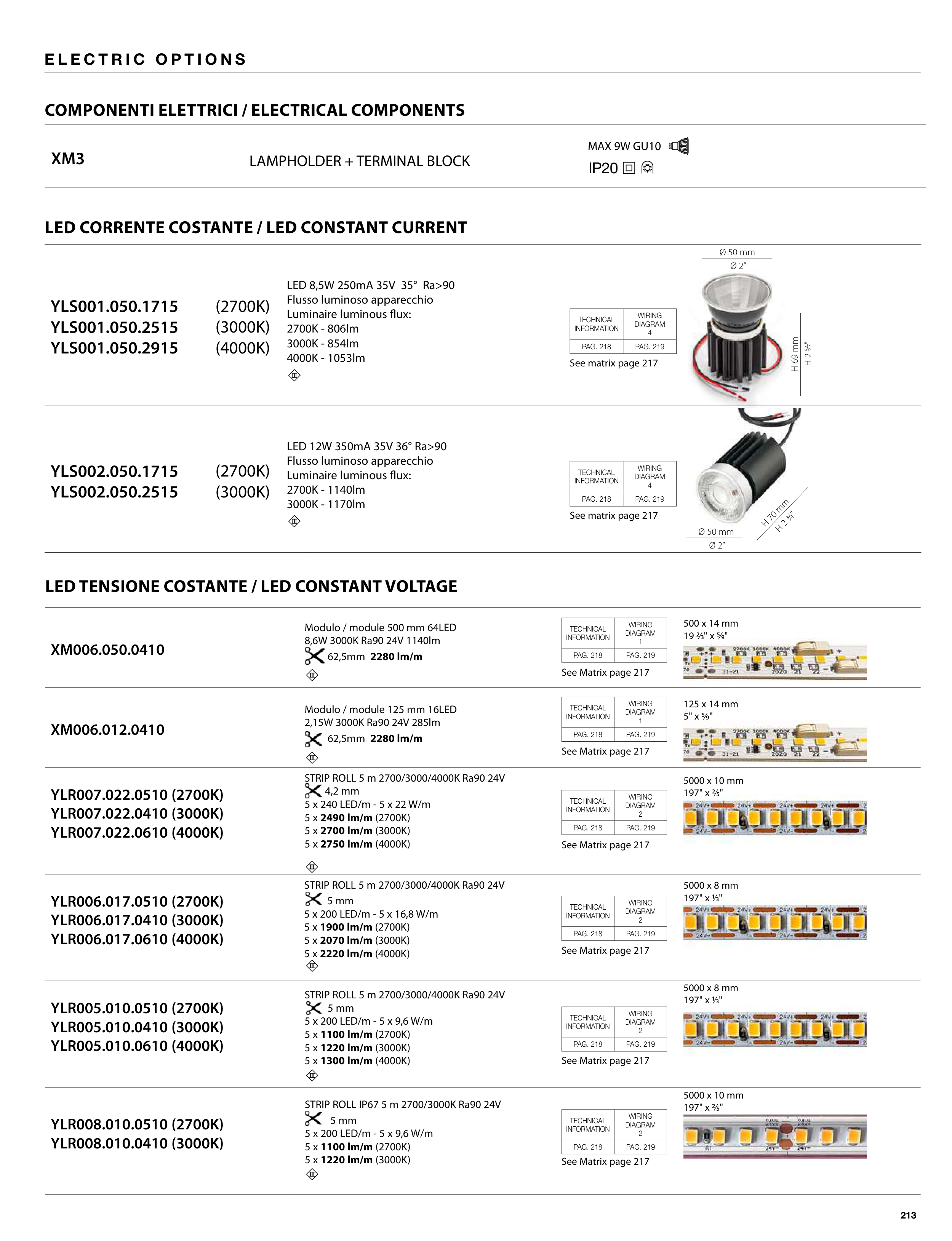

COMPONENTI ELETTRICI / ELECTRICAL COMPONENTS
XM3
MAX 9W GU10
IP20
LAMPHOLDER + TERMINAL BLOCK
TECHNICAL
INFORMATION
WIRING
DIAGRAM
4
PAG. 218
PAG. 219
TECHNICAL
INFORMATION
WIRING
DIAGRAM
4
PAG. 218
PAG. 219
LED CORRENTE COSTANTE / LED CONSTANT CURRENT
YLS001.050.1715 (2700K)
YLS001.050.2515 (3000K)
YLS001.050.2915 (4000K)
YLS002.050.1715 (2700K)
YLS002.050.2515 (3000K)
LED 8,5W 250mA 35V 35° Ra>90
Flusso luminoso apparecchio
Luminaire luminous flux:
2700K - 806lm
3000K - 854lm
4000K - 1053lm
LED 12W 350mA 35V 36° Ra>90
Flusso luminoso apparecchio
Luminaire luminous flux:
2700K - 1140lm
3000K - 1170lm
See matrix page 217
See matrix page 217
Ø 50 mm
Ø 2”
Ø 50 mm
Ø 2”
H 69 mm
H 2 5/7"
H 70 mm
H 2 3/4"
500 x 14 mm
19 2/3" x 5/9"
5000 x 10 mm
197" x 2/5"
5000 x 10 mm
197" x 2/5"
125 x 14 mm
5" x 5/9"
5000 x 8 mm
197" x 1/3"
5000 x 8 mm
197" x 1/3"
E L E C T R I C O P T I O N S
