125
TRIMLESS PROFILE
Fornito completo di schermo
diffusore
Supplied with diffuser
XG2045-50TRACK
510
20"
0,45
XG2045-100TRACK
1010
39 4/5"
0,78
XG2045-200TRACK
2010
79 1/5"
1,45
XG2045-300TRACK
3010
118 3/5"
2,05
LED MODULE
XM006.050.0410
500
19 2/3"
62,5
2 1/2"
8,6W
17,2W/m 1140lm
2280lm/m
64
3000K Ra>90
24V DC
XM006.012.0410
125
5"
62,5
2 1/2"
2,15W
17,2W/m 258lm
2280lm/m
16
3000K Ra>90
24V DC
YLR005.010.0410
5000
197"
50
2 "
9,6W/m
1220lm/m
200/m
3000K Ra>80
24V DC
YLR006.017.0410
5000
197"
42
1 2/3"
16,8W/m
2070lm/m
200/m
3000K Ra>90
24V DC
YLR007.022.0410
5000
197"
42
1 2/3”
22W/m
2700lm/m
240/m
3000K Ra>90
24V DC
Altre temperature di colore disponibili a pag. 188 / Other colour temperatures available on page 188
Matrice di compatibilità LED / Profili pag. 139 / LED Profile Matrix page 139

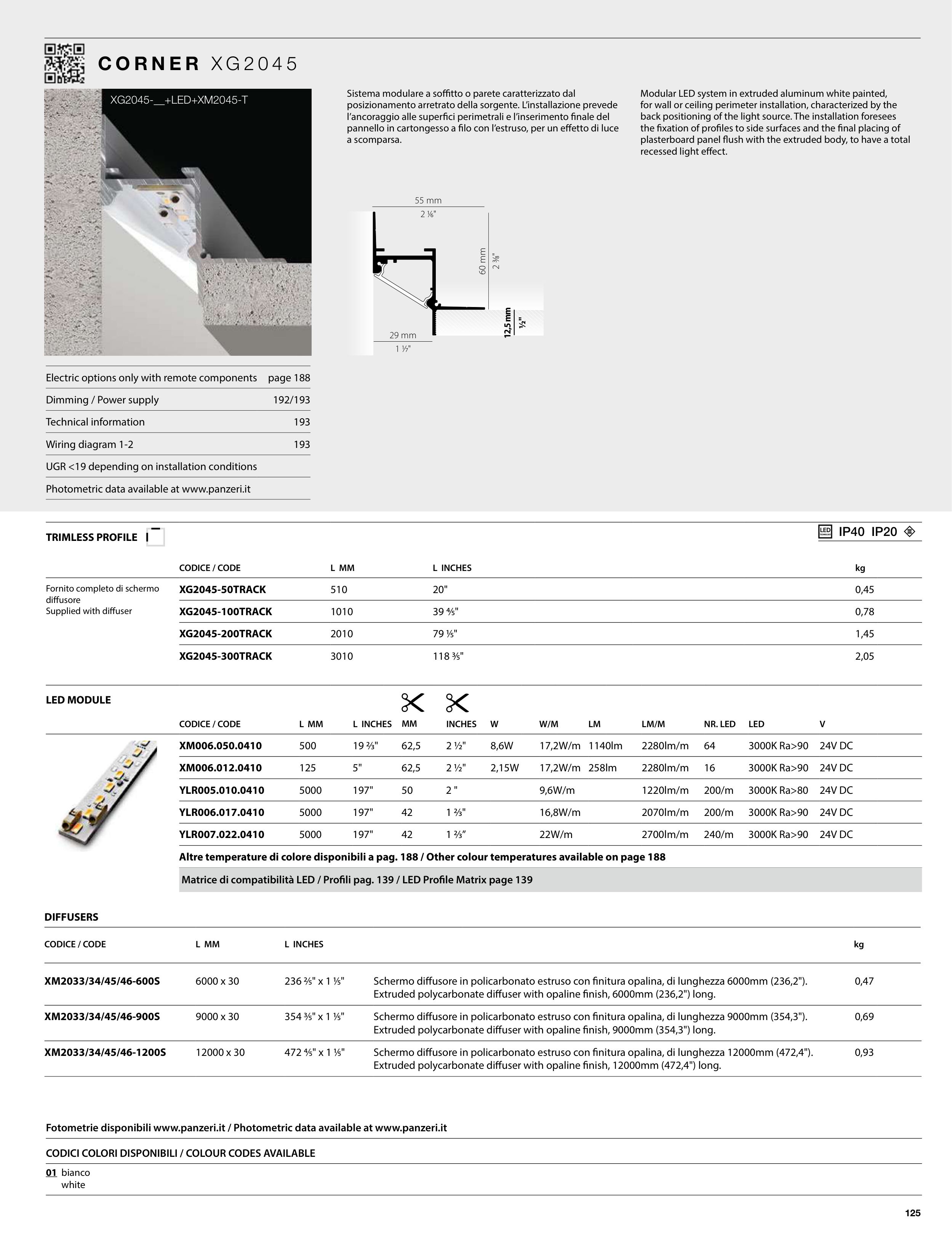

C O R N E R X G 2 0 4 5
Sistema modulare a soffitto o parete caratterizzato dal
posizionamento arretrato della sorgente. L’installazione prevede
l’ancoraggio alle superfici perimetrali e l’inserimento finale del
pannello in cartongesso a filo con l’estruso, per un effetto di luce
a scomparsa.
Modular LED system in extruded aluminum white painted,
for wall or ceiling perimeter installation, characterized by the
back positioning of the light source. The installation foresees
the fixation of profiles to side surfaces and the final placing of
plasterboard panel flush with the extruded body, to have a total
recessed light effect.
55 mm
29 mm
60 mm
12,5 mm
½"
IP40 IP20
CODICE / CODE
L MM
L INCHES
kg
CODICE / CODE
L MM
L INCHES
MM
INCHES
W
W/M
LM
LM/M
NR. LED
LED
V
DIFFUSERS
CODICE / CODE
XM2033/34/45/46-600S
6000 x 30
236 2/5" x 1 1/5"
Schermo diffusore in policarbonato estruso con finitura opalina, di lunghezza 6000mm (236,2").
Extruded polycarbonate diffuser with opaline finish, 6000mm (236,2") long.
0,47
XM2033/34/45/46-900S
9000 x 30
354 3/5" x 1 1/5"
Schermo diffusore in policarbonato estruso con finitura opalina, di lunghezza 9000mm (354,3").
Extruded polycarbonate diffuser with opaline finish, 9000mm (354,3") long.
0,69
XM2033/34/45/46-1200S
12000 x 30
472 4/5" x 1 1/5"
Schermo diffusore in policarbonato estruso con finitura opalina, di lunghezza 12000mm (472,4").
Extruded polycarbonate diffuser with opaline finish, 12000mm (472,4") long.
0,93
L MM
L INCHES
kg
Fotometrie disponibili www.panzeri.it / Photometric data available at www.panzeri.it
CODICI COLORI DISPONIBILI / COLOUR CODES AVAILABLE
01 bianco
white
XG2045-__+LED+XM2045-T
Electric options only with remote components
page 188
Dimming / Power supply
192/193
Technical information
193
Wiring diagram 1-2
193
UGR <19 depending on installation conditions
Photometric data available at www.panzeri.it
