34
Oty light
IP44
c
MC–E=3
E F H
700m/A
LED 8W
HCRI>90 = 11,5cm
3S4B.3�G.�
� Led color
Nominal lm
G Beam spread
2 = 2700K
691
M = 30°
3 = 3000K
710
T = 12°
IP20
C (m-M)
Driver
3KIT.700.08 (1-1)
on/off
3KIT.702.20 (1-1)
DALI
remote installation - in remoto
3KIT.703.20 (1-1)
Push - 1...10V
remote installation - in remoto
3KIT.704.10 (1-1)
IGBT - TRIAC
remote installation - in remoto

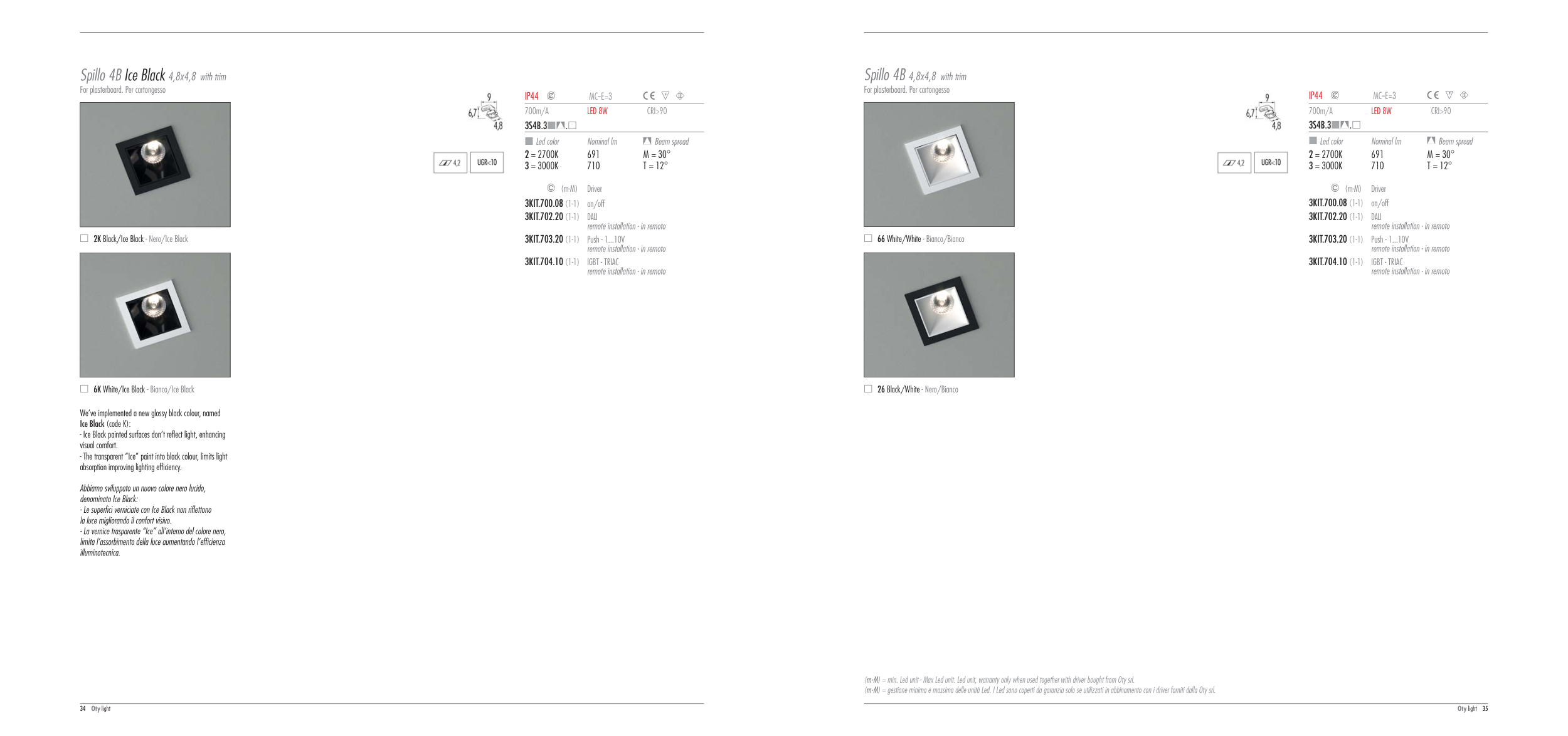

Spillo 4B Ice Black 4,8x4,8 with trim
For plasterboard. Per cartongesso
We’ve implemented a new glossy black colour, named
Ice Black (code K):
- Ice Black painted surfaces don’t reflect light, enhancing
visual comfort.
- The transparent “Ice” paint into black colour, limits light
absorption improving lighting efficiency.
Abbiamo sviluppato un nuovo colore nero lucido,
denominato Ice Black:
- Le superfici verniciate con Ice Black non riflettono
la luce migliorando il confort visivo.
- La vernice trasparente “Ice” all’interno del colore nero,
limita l’assorbimento della luce aumentando l’efficienza
illuminotecnica.
� 2K Black/Ice Black - Nero/Ice Black
� 6K White/Ice Black - Bianco/Ice Black
IP44
c
MC–E=3
E F H
700m/A
LED 8W
HCRI>90 = 11,5cm
3S4B.3�G.�
� Led color
Nominal lm
G Beam spread
2 = 2700K
691
M = 30°
3 = 3000K
710
T = 12°
IP20
C (m-M)
Driver
3KIT.700.08 (1-1)
on/off
3KIT.702.20 (1-1)
DALI
remote installation - in remoto
3KIT.703.20 (1-1)
Push - 1...10V
remote installation - in remoto
3KIT.704.10 (1-1)
IGBT - TRIAC
remote installation - in remoto
Spillo 4B 4,8x4,8 with trim
For plasterboard. Per cartongesso
� 66 White/White - Bianco/Bianco
� 26 Black/White - Nero/Bianco
35
Oty light
(m-M) = min. Led unit - Max Led unit. Led unit, warranty only when used together with driver bought from Oty srl.
(m-M) = gestione minima e massima delle unità Led. I Led sono coperti da garanzia solo se utilizzati in abbinamento con i driver forniti dalla Oty srl.
