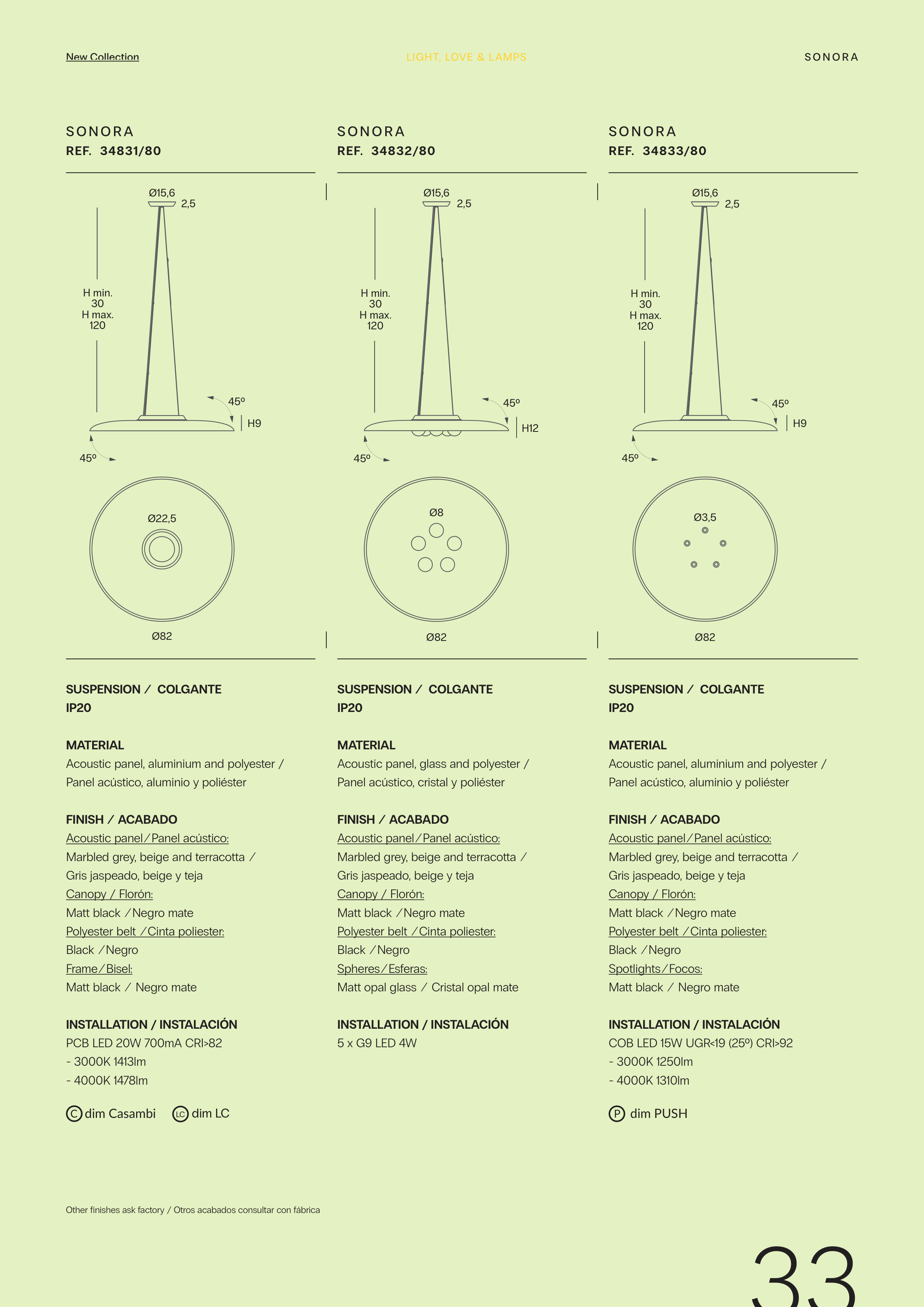

SUSPENSION ⁄ COLGANTE
IP20
MATERIAL
Acoustic panel, aluminium and polyester /
Panel acústico, aluminio y poliéster
FINISH ⁄ ACABADO
Acoustic panel ⁄ Panel acústico:
Marbled grey, beige and terracotta ⁄
Gris jaspeado, beige y teja
Canopy / Florón:
Matt black ⁄ Negro mate
Polyester belt ⁄ Cinta poliester:
Black ⁄ Negro
Frame ⁄ Bisel:
Matt black ⁄ Negro mate
INSTALLATION / INSTALACIÓN
PCB LED 20W 700mA CRI>82
- 3000K 1413lm
- 4000K 1478lm
S O N O R A
REF. 34831/80
SUSPENSION ⁄ COLGANTE
IP20
MATERIAL
Acoustic panel, glass and polyester /
Panel acústico, cristal y poliéster
FINISH ⁄ ACABADO
Acoustic panel ⁄ Panel acústico:
Marbled grey, beige and terracotta ⁄
Gris jaspeado, beige y teja
Canopy / Florón:
Matt black ⁄ Negro mate
Polyester belt ⁄ Cinta poliester:
Black ⁄ Negro
Spheres ⁄ Esferas:
Matt opal glass ⁄ Cristal opal mate
INSTALLATION / INSTALACIÓN
5 x G9 LED 4W
S O N O R A
REF. 34832/80
SUSPENSION ⁄ COLGANTE
IP20
MATERIAL
Acoustic panel, aluminium and polyester /
Panel acústico, aluminio y poliéster
FINISH ⁄ ACABADO
Acoustic panel ⁄ Panel acústico:
Marbled grey, beige and terracotta ⁄
Gris jaspeado, beige y teja
Canopy / Florón:
Matt black ⁄ Negro mate
Polyester belt ⁄ Cinta poliester:
Black ⁄ Negro
Spotlights ⁄ Focos:
Matt black ⁄ Negro mate
INSTALLATION / INSTALACIÓN
COB LED 15W UGR<19 (25º) CRI>92
- 3000K 1250lm
- 4000K 1310lm
S O N O R A
REF. 34833/80
P dim PUSH
H min.
30
H max.
120
Ø15,6
2,5
H9
Ø82
Ø22,5
45º
45º
H12
2,5
Ø15,6
Ø82
Ø8
H min.
30
H max.
120
45º
45º
2,5
Ø15,6
Ø82
Ø3,5
H min.
30
H max.
120
H9
45º
45º
dim Casambi
C
dim LC
LC
Other finishes ask factory / Otros acabados consultar con fábrica
33
LIGHT, LOVE & LAMPS
S O N O R A
New Collection
