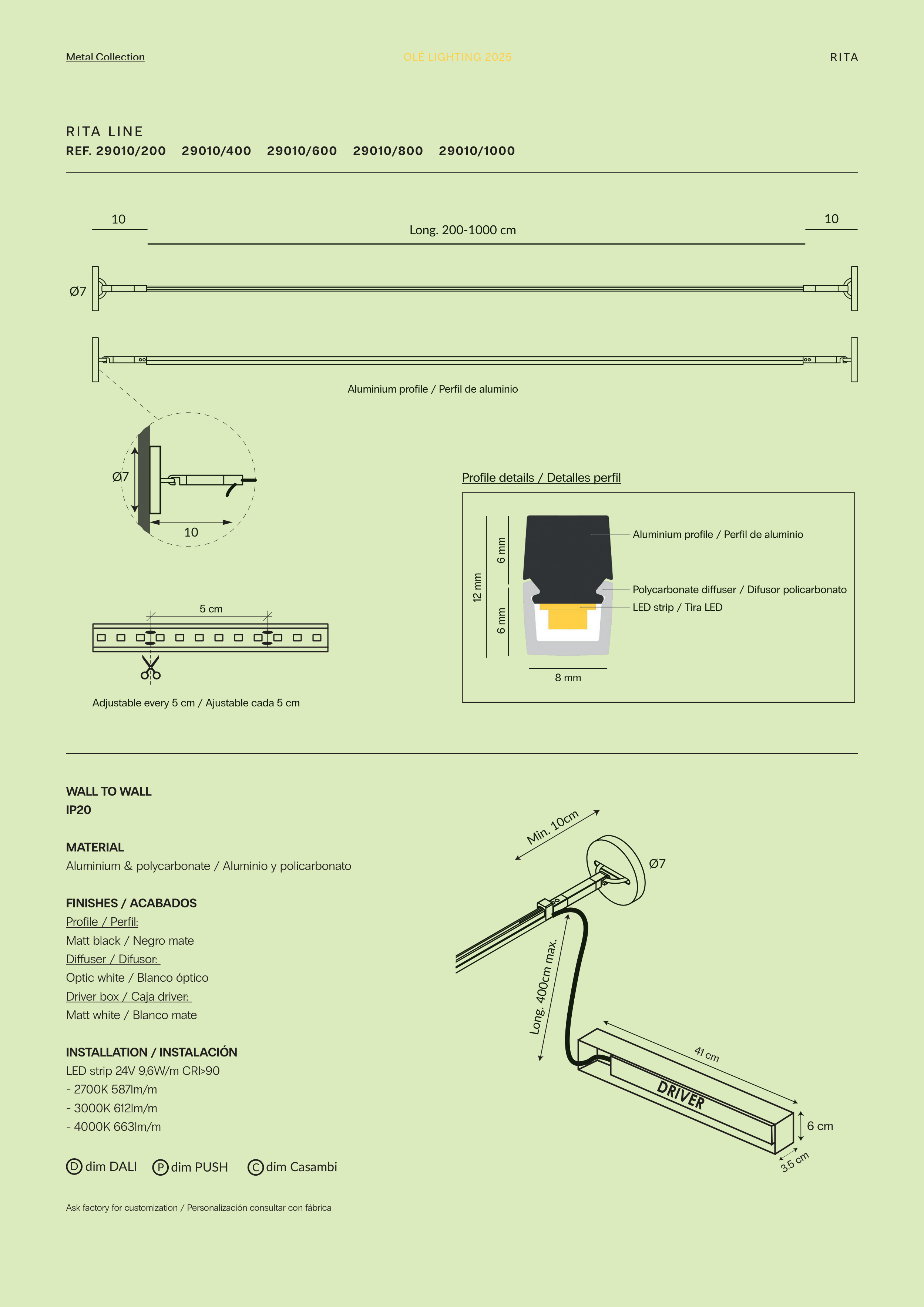

R I TA L I N E
REF. 29010/200 29010/400 29010/600 29010/800 29010/1000
WALL TO WALL
IP20
MATERIAL
Aluminium & polycarbonate / Aluminio y policarbonato
FINISHES / ACABADOS
Profile / Perfil:
Matt black / Negro mate
Diffuser / Difusor:
Optic white / Blanco óptico
Driver box / Caja driver:
Matt white / Blanco mate
INSTALLATION / INSTALACIÓN
LED strip 24V 9,6W/m CRI>90
- 2700K 587lm/m
- 3000K 612lm/m
- 4000K 663lm/m
Ask factory for customization / Personalización consultar con fábrica
10
Long. 200-1000 cm
10
Ø7
Ø7
10
OLÉ LIGHTING 2025
R I TA
Metal Collection
dim Casambi
C
dim DALI
D
dim PUSH
P
Profile details / Detalles perfil
Aluminium profile / Perfil de aluminio
Polycarbonate diffuser / Difusor policarbonato
LED strip / Tira LED
8 mm
6 mm
6 mm
12 mm
41 cm
6 cm
3.5 cm
Adjustable every 5 cm / Ajustable cada 5 cm
Aluminium profile / Perfil de aluminio
5 cm
