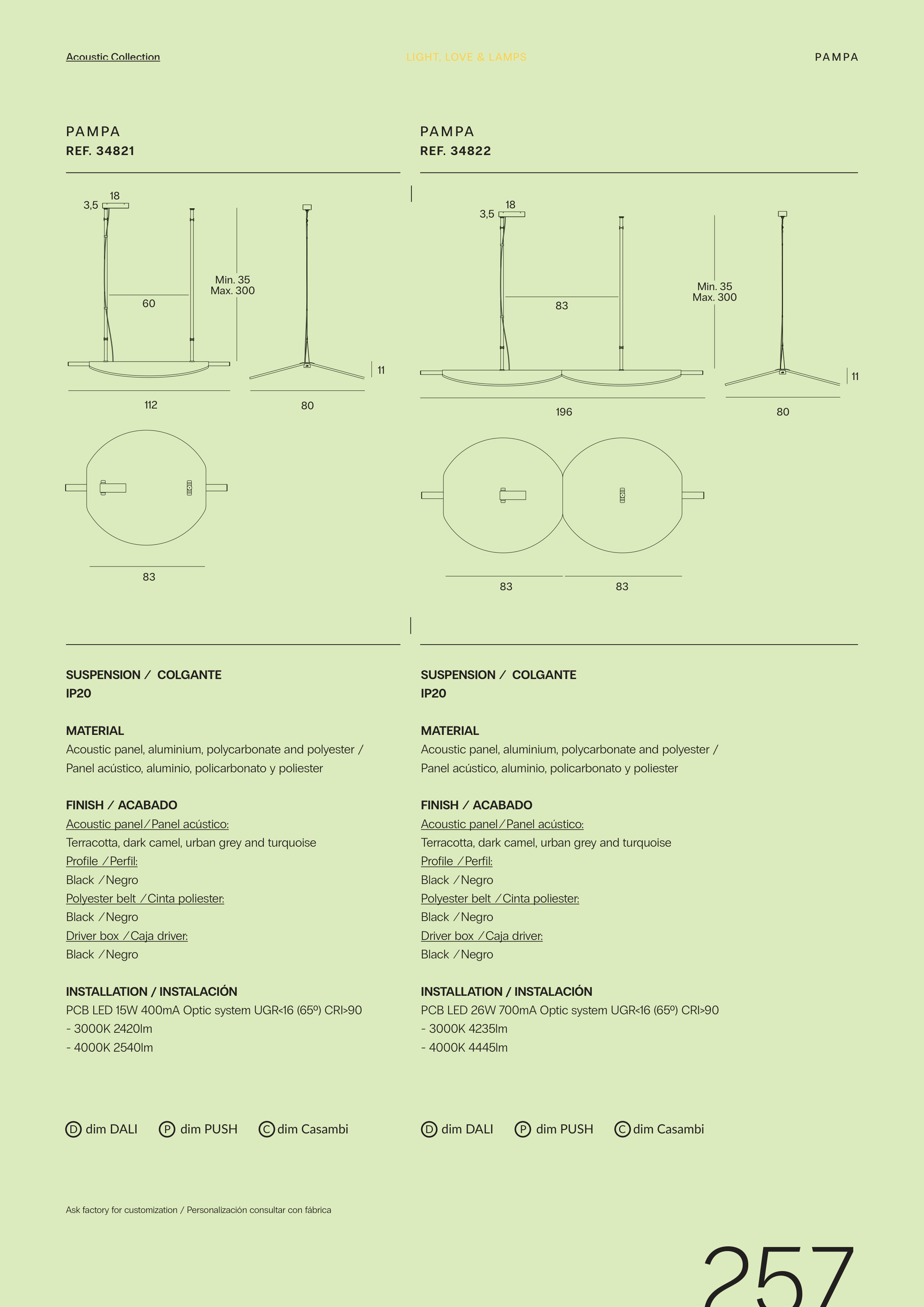

SUSPENSION ⁄ COLGANTE
IP20
MATERIAL
Acoustic panel, aluminium, polycarbonate and polyester /
Panel acústico, aluminio, policarbonato y poliester
FINISH ⁄ ACABADO
Acoustic panel ⁄ Panel acústico:
Terracotta, dark camel, urban grey and turquoise
Profile ⁄ Perfil:
Black ⁄ Negro
Polyester belt ⁄ Cinta poliester:
Black ⁄ Negro
Driver box ⁄ Caja driver:
Black ⁄ Negro
INSTALLATION / INSTALACIÓN
PCB LED 15W 400mA Optic system UGR<16 (65º) CRI>90
- 3000K 2420lm
- 4000K 2540lm
PA M PA
REF. 34821
PA M PA
REF. 34822
D dim DALI
P dim PUSH
dim Casambi
C
SUSPENSION ⁄ COLGANTE
IP20
MATERIAL
Acoustic panel, aluminium, polycarbonate and polyester /
Panel acústico, aluminio, policarbonato y poliester
FINISH ⁄ ACABADO
Acoustic panel ⁄ Panel acústico:
Terracotta, dark camel, urban grey and turquoise
Profile ⁄ Perfil:
Black ⁄ Negro
Polyester belt ⁄ Cinta poliester:
Black ⁄ Negro
Driver box ⁄ Caja driver:
Black ⁄ Negro
INSTALLATION / INSTALACIÓN
PCB LED 26W 700mA Optic system UGR<16 (65º) CRI>90
- 3000K 4235lm
- 4000K 4445lm
D dim DALI
P dim PUSH
dim Casambi
C
Ask factory for customization / Personalización consultar con fábrica
112
80
83
11
Min. 35
Max. 300
18
3,5
60
3,5
18
196
83
83
80
11
Min. 35
Max. 300
83
257
LIGHT, LOVE & LAMPS
PA M PA
Acoustic Collection
