FEATURES
• Three 18-SR stainless steel high-
performance main burners
• Integrated rotisserie system with
infrared burner
• Integrated smoking system with
dedicated burner and drawer for
wood chunks
• Dual-integrated high performance
side burner with recessed sealed
top and stainless steel cover
• 0,5 m2 actual grilling area
• 3-position warming rack stores up
out of the way when rotissing
• Dual integrated high-intensity
halogen work lights
• User-friendly push-button ignition
with sealed 110V AC power source
• Available in LP or Natural Gas
• Barbecue cover
COOKING METHODS
• Searing
• Braising
• Frying
• Boiling
• Roasting
• Teppanyaki
• Grilling
• Baking
• Steaming
• Wok Cooking
• Blanching
• Smoking
• Griddle Cooking
• Cold Smoke Roasting
• Rotisserie Cooking

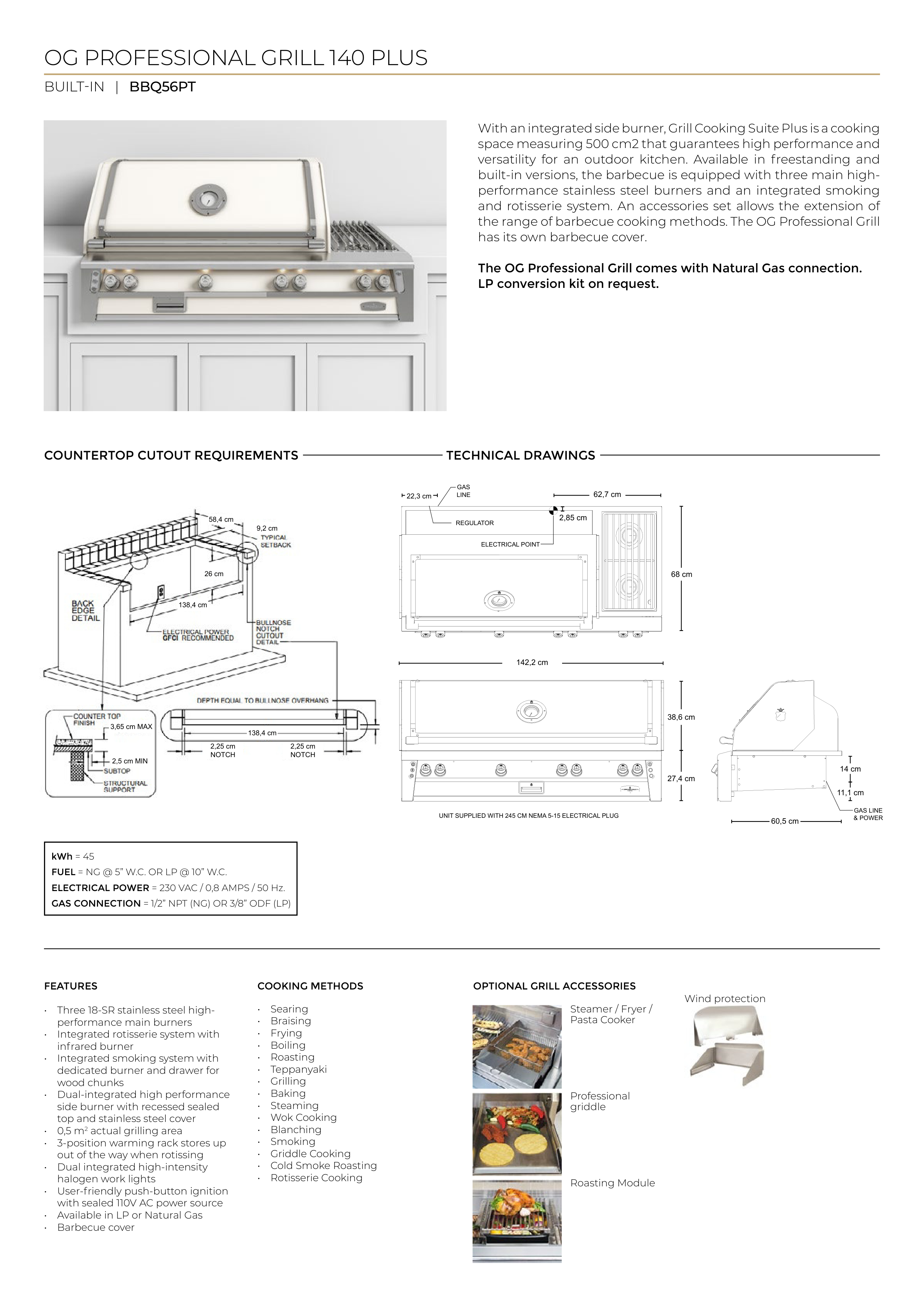

OG PROFESSIONAL GRILL 140 PLUS
BUILT-IN | BBQ56PT
kWh = 45
FUEL = NG @ 5” W.C. OR LP @ 10” W.C.
ELECTRICAL POWER = 230 VAC / 0,8 AMPS / 50 Hz.
GAS CONNECTION = 1/2” NPT (NG) OR 3/8” ODF (LP)
142,2 cm
38,6 cm
68 cm
GAS LINE
& POWER
GAS
LINE
REGULATOR
27,4 cm
UNIT SUPPLIED WITH 245 CM NEMA 5-15 ELECTRICAL PLUG
COUNTERTOP CUTOUT REQUIREMENTS
TECHNICAL DRAWINGS
58,4 cm
26 cm
138,4 cm
138,4 cm
9,2 cm
3,65 cm MAX
2,5 cm MIN
2,25 cm
NOTCH
2,25 cm
NOTCH
22,3 cm
60,5 cm
11,1 cm
14 cm
2,85 cm
ELECTRICAL POINT
62,7 cm
With an integrated side burner, Grill Cooking Suite Plus is a cooking
space measuring 500 cm2 that guarantees high performance and
versatility for an outdoor kitchen. Available in freestanding and
built-in versions, the barbecue is equipped with three main high-
performance stainless steel burners and an integrated smoking
and rotisserie system. An accessories set allows the extension of
the range of barbecue cooking methods. The OG Professional Grill
has its own barbecue cover.
The OG Professional Grill comes with Natural Gas connection.
LP conversion kit on request.
OPTIONAL GRILL ACCESSORIES
Steamer / Fryer /
Pasta Cooker
Professional
griddle
Roasting Module
Wind protection
