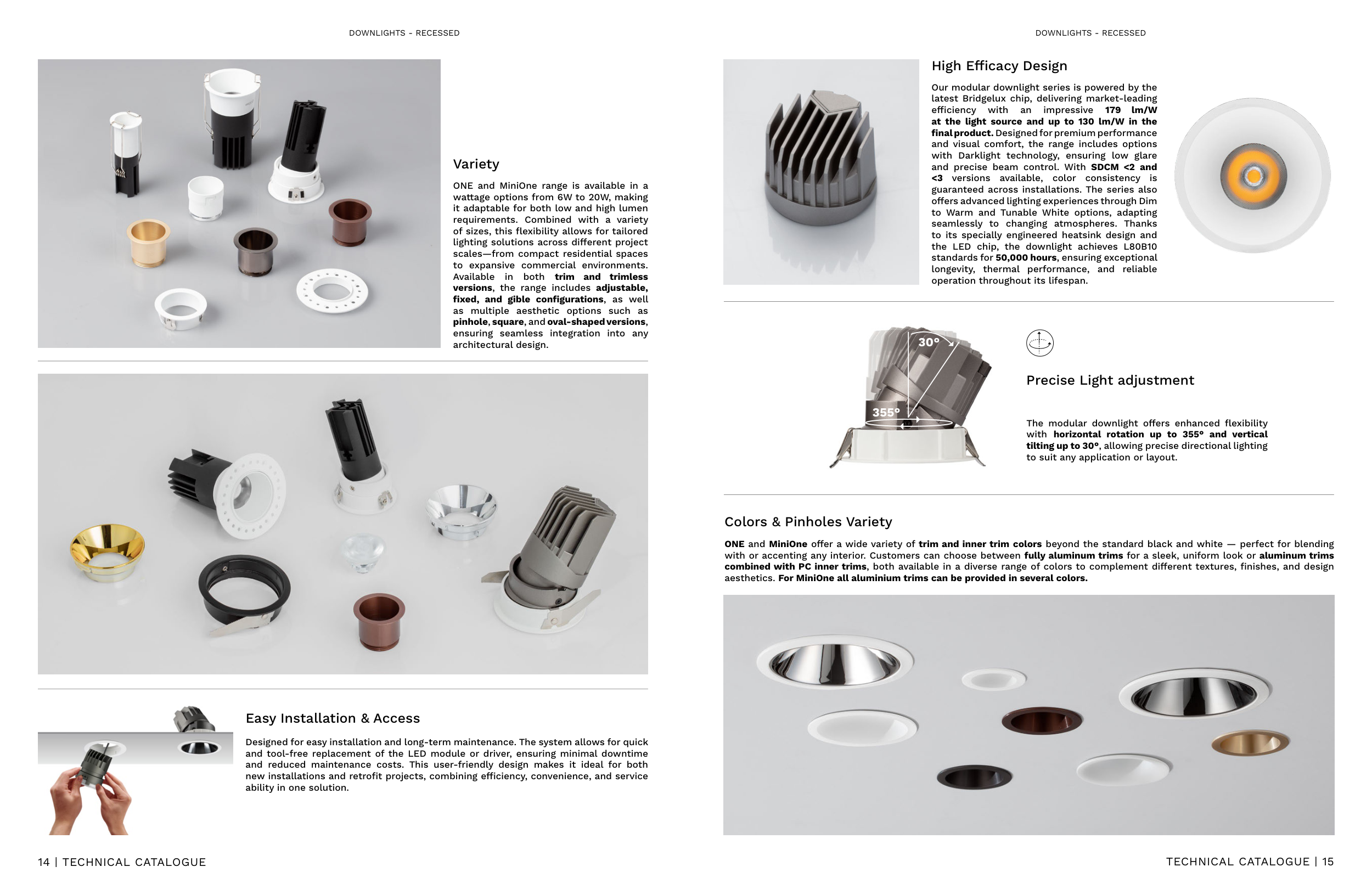

DOWNLIGHTS - RECESSED
DOWNLIGHTS - RECESSED
TECHNICAL CATALOGUE | 15
14 | TECHNICAL CATALOGUE
Variety
Easy Installation & Access
ONE and MiniOne range is available in a
wattage options from 6W to 20W, making
it adaptable for both low and high lumen
requirements. Combined with a variety
of sizes, this flexibility allows for tailored
lighting solutions across different project
scales—from compact residential spaces
to expansive commercial environments.
Available in both trim and trimless
versions, the range includes adjustable,
fixed, and gible configurations, as well
as multiple aesthetic options such as
pinhole, square, and oval-shaped versions,
ensuring seamless integration into any
architectural design.
Designed for easy installation and long-term maintenance. The system allows for quick
and tool-free replacement of the LED module or driver, ensuring minimal downtime
and reduced maintenance costs. This user-friendly design makes it ideal for both
new installations and retrofit projects, combining efficiency, convenience, and service
ability in one solution.
High Efficacy Design
Colors & Pinholes Variety
Precise Light adjustment
Our modular downlight series is powered by the
latest Bridgelux chip, delivering market-leading
efficiency
with
an
impressive
179
lm/W
at the light source and up to 130 lm/W in the
final product. Designed for premium performance
and visual comfort, the range includes options
with Darklight technology, ensuring low glare
and precise beam control. With SDCM <2 and
<3 versions available, color consistency is
guaranteed across installations. The series also
offers advanced lighting experiences through Dim
to Warm and Tunable White options, adapting
seamlessly to changing atmospheres. Thanks
to its specially engineered heatsink design and
the LED chip, the downlight achieves L80B10
standards for 50,000 hours, ensuring exceptional
longevity, thermal performance, and reliable
operation throughout its lifespan.
ONE and MiniOne offer a wide variety of trim and inner trim colors beyond the standard black and white — perfect for blending
with or accenting any interior. Customers can choose between fully aluminum trims for a sleek, uniform look or aluminum trims
combined with PC inner trims, both available in a diverse range of colors to complement different textures, finishes, and design
aesthetics. For MiniOne all aluminium trims can be provided in several colors.
The modular downlight offers enhanced flexibility
with horizontal rotation up to 355° and vertical
tilting up to 30°, allowing precise directional lighting
to suit any application or layout.
355°
30°
