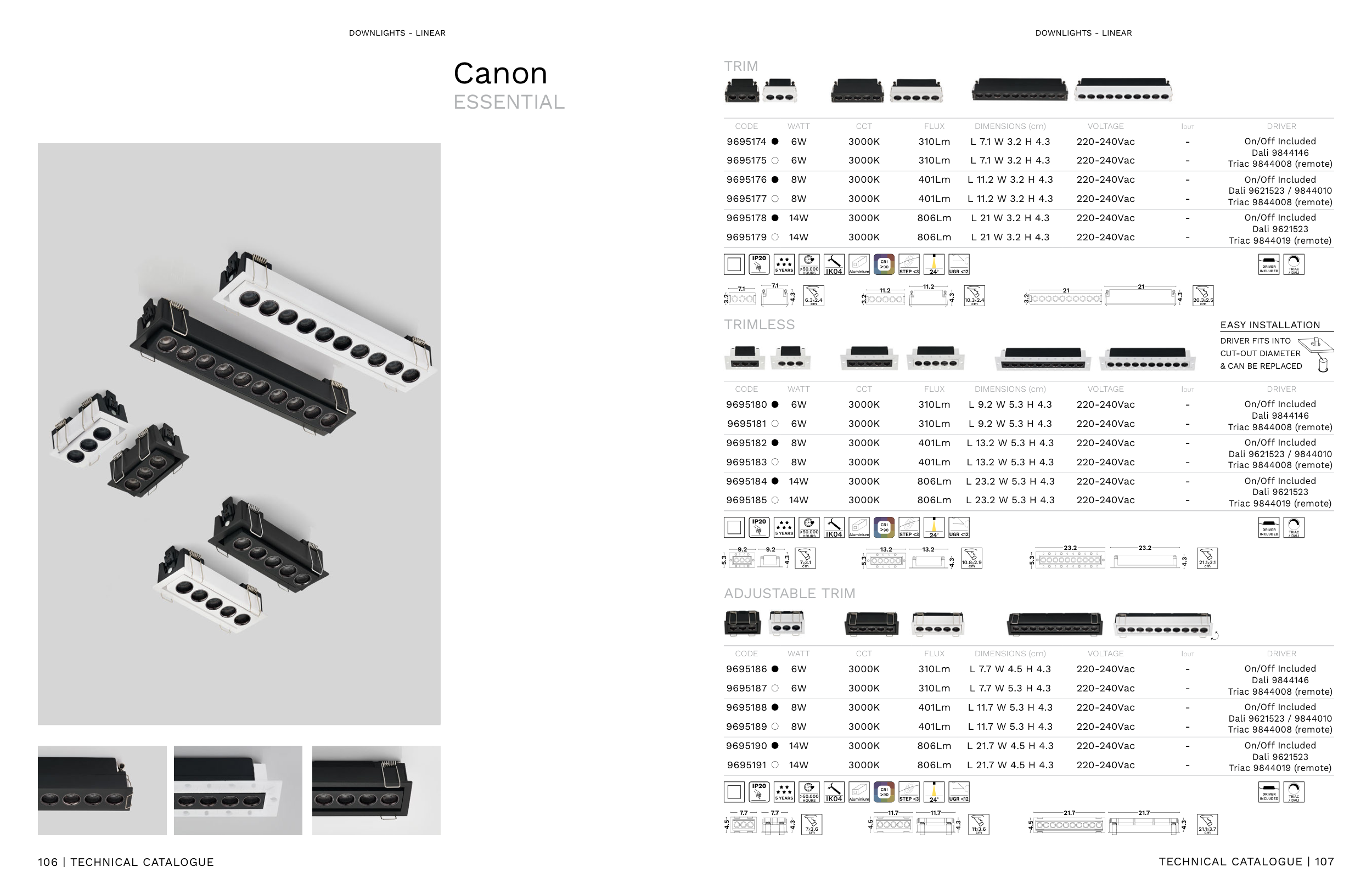

DOWNLIGHTS - LINEAR
106 | TECHNICAL CATALOGUE
Canon
ESSENTIAL
DOWNLIGHTS - LINEAR
TECHNICAL CATALOGUE | 107
7.7
7.7
4.3
4.5
7.1
3.2
4.3
7.1
9.2
4.3
5.3
9.2
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9695174
6W
3000K
310Lm
L 7.1 W 3.2 H 4.3
220-240Vac
-
On/Off Included
Dali 9844146
Triac 9844008 (remote)
9695175
6W
3000K
310Lm
L 7.1 W 3.2 H 4.3
220-240Vac
-
9695176
8W
3000K
401Lm
L 11.2 W 3.2 H 4.3
220-240Vac
-
On/Off Included
Dali 9621523 / 9844010
Triac 9844008 (remote)
9695177
8W
3000K
401Lm
L 11.2 W 3.2 H 4.3
220-240Vac
-
9695178
14W
3000K
806Lm
L 21 W 3.2 H 4.3
220-240Vac
-
On/Off Included
Dali 9621523
Triac 9844019 (remote)
9695179
14W
3000K
806Lm
L 21 W 3.2 H 4.3
220-240Vac
-
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
24
O UGR <12
DRIVER
INCLUDED
TRIAC
/ DALI
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9695180
6W
3000K
310Lm
L 9.2 W 5.3 H 4.3
220-240Vac
-
On/Off Included
Dali 9844146
Triac 9844008 (remote)
9695181
6W
3000K
310Lm
L 9.2 W 5.3 H 4.3
220-240Vac
-
9695182
8W
3000K
401Lm
L 13.2 W 5.3 H 4.3
220-240Vac
-
On/Off Included
Dali 9621523 / 9844010
Triac 9844008 (remote)
9695183
8W
3000K
401Lm
L 13.2 W 5.3 H 4.3
220-240Vac
-
9695184
14W
3000K
806Lm
L 23.2 W 5.3 H 4.3
220-240Vac
-
On/Off Included
Dali 9621523
Triac 9844019 (remote)
9695185
14W
3000K
806Lm
L 23.2 W 5.3 H 4.3
220-240Vac
-
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
24
O UGR <12
DRIVER
INCLUDED
TRIAC
/ DALI
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9695186
6W
3000K
310Lm
L 7.7 W 4.5 H 4.3
220-240Vac
-
On/Off Included
Dali 9844146
Triac 9844008 (remote)
9695187
6W
3000K
310Lm
L 7.7 W 5.3 H 4.3
220-240Vac
-
9695188
8W
3000K
401Lm
L 11.7 W 5.3 H 4.3
220-240Vac
-
On/Off Included
Dali 9621523 / 9844010
Triac 9844008 (remote)
9695189
8W
3000K
401Lm
L 11.7 W 5.3 H 4.3
220-240Vac
-
9695190
14W
3000K
806Lm
L 21.7 W 4.5 H 4.3
220-240Vac
-
On/Off Included
Dali 9621523
Triac 9844019 (remote)
9695191
14W
3000K
806Lm
L 21.7 W 4.5 H 4.3
220-240Vac
-
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
24
O UGR <12
DRIVER
INCLUDED
TRIAC
/ DALI
21
21
3.2
4.3
11.2
3.2
4.3
11.2
23.2
23.2
4.3
5.3
13.2
4.3
5.3
13.2
TRIM
TRIMLESS
ADJUSTABLE TRIM
21.7
21.7
4.3
4.5
11.7
4.3
4.5
11.7
EASY INSTALLATION
DRIVER FITS INTO
CUT-OUT DIAMETER
& CAN BE REPLACED
7X3.6
cm
7X3.1
cm
6.3X2.4
cm
11X3.6
cm
10.8X2.9
cm
10.3X2.4
cm
21.1X3.7
cm
21.1X3.1
cm
20.3X2.5
cm
