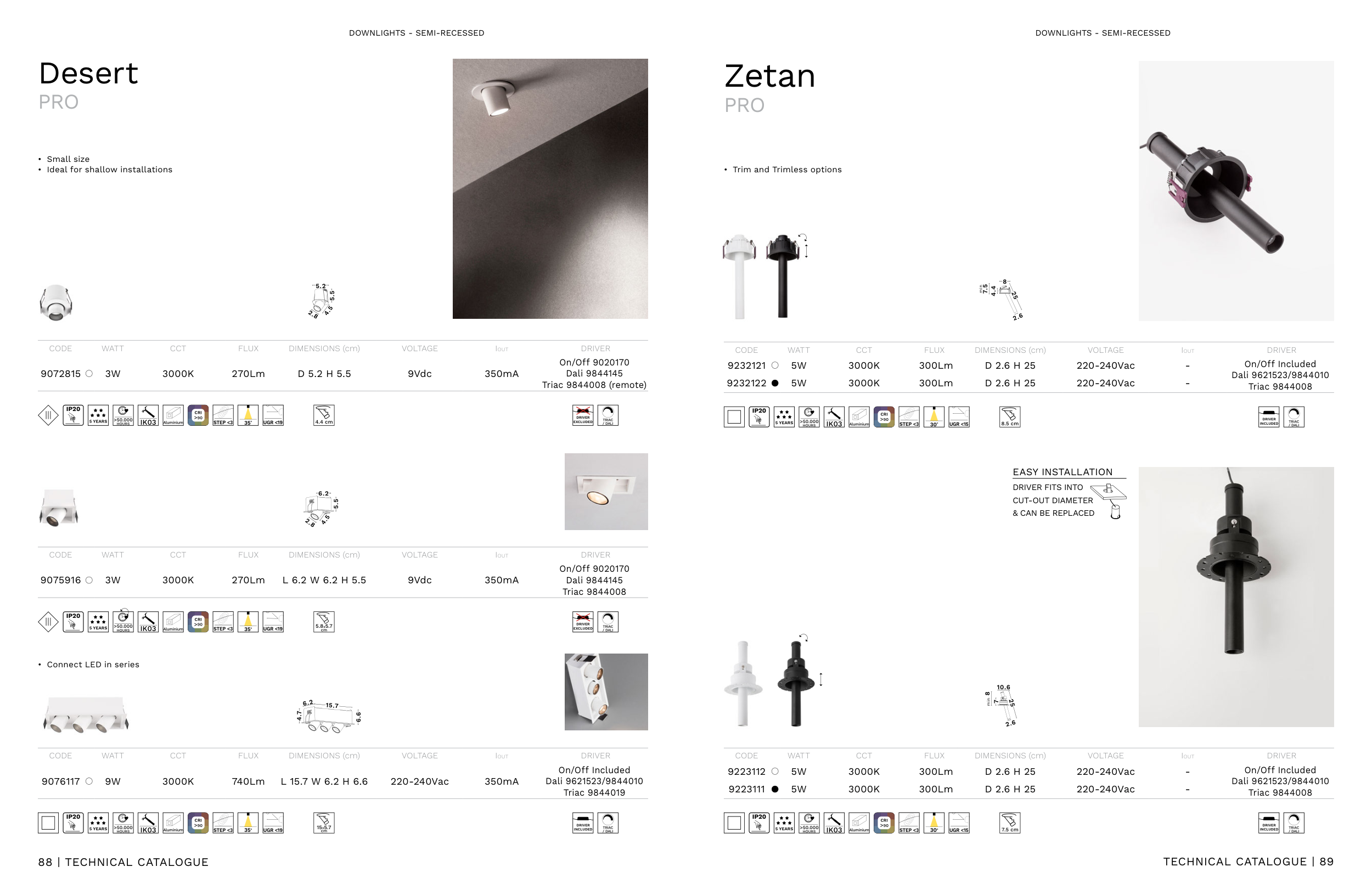

DOWNLIGHTS - SEMI-RECESSED
DOWNLIGHTS - SEMI-RECESSED
TECHNICAL CATALOGUE | 89
88 | TECHNICAL CATALOGUE
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9072815
3W
3000K
270Lm
D 5.2 H 5.5
9Vdc
350mA
On/Off 9020170
Dali 9844145
Triac 9844008 (remote)
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 STEP <3
35
O UGR <19
4.4 cm
DRIVER
EXCLUDED
TRIAC
/ DALI
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9075916
3W
3000K
270Lm
L 6.2 W 6.2 H 5.5
9Vdc
350mA
On/Off 9020170
Dali 9844145
Triac 9844008
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 STEP <3
35
O UGR <19
5.8X5.7
cm
DRIVER
EXCLUDED
TRIAC
/ DALI
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9076117
9W
3000K
740Lm
L 15.7 W 6.2 H 6.6
220-240Vac
350mA
On/Off Included
Dali 9621523/9844010
Triac 9844019
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 STEP <3
35
O UGR <19
15X5.7
cm
DRIVER
INCLUDED
TRIAC
/ DALI
Desert
PRO
2.8
4.5
5.5
6.2
2.8
4.5
5.2
5.5
4.7
6.2
15.7
6.6
• Small size
• Ideal for shallow installations
• Connect LED in series
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9232121
5W
3000K
300Lm
D 2.6 H 25
220-240Vac
-
On/Off Included
Dali 9621523/9844010
Triac 9844008
9232122
5W
3000K
300Lm
D 2.6 H 25
220-240Vac
-
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 STEP <3
30
O UGR <15
8.5 cm
DRIVER
INCLUDED
TRIAC
/ DALI
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9223112
5W
3000K
300Lm
D 2.6 H 25
220-240Vac
-
On/Off Included
Dali 9621523/9844010
Triac 9844008
9223111
5W
3000K
300Lm
D 2.6 H 25
220-240Vac
-
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 STEP <3
30
O UGR <15
7.5 cm
DRIVER
INCLUDED
TRIAC
/ DALI
Zetan
PRO
2.6
8
25
2.6
10.6
25
EASY INSTALLATION
DRIVER FITS INTO
CUT-OUT DIAMETER
& CAN BE REPLACED
• Trim and Trimless options
min
7.5
4.4
min 8
7
