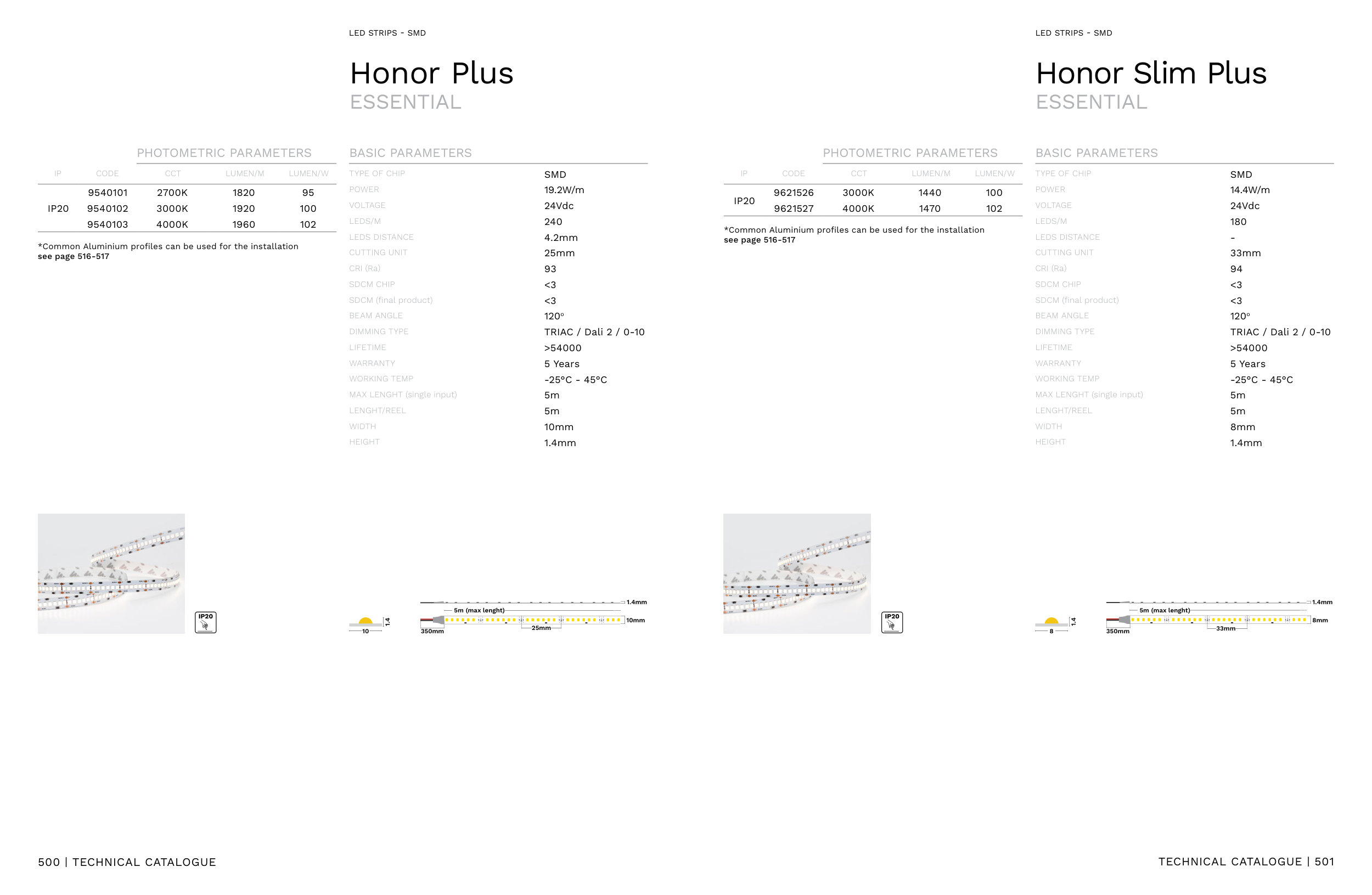

LED STRIPS - SMD
IP20
9540101
2700K
1820
95
9540102
3000K
1920
100
9540103
4000K
1960
102
SMD
19.2W/m
24Vdc
240
4.2mm
25mm
93
<3
<3
120o
TRIAC / Dali 2 / 0-10
>54000
5 Years
-25°C - 45°C
5m
5m
10mm
1.4mm
Honor Plus
ESSENTIAL
5m (max lenght)
1.4mm
10mm
25mm
350mm
IP20
10
1.4
BASIC PARAMETERS
TYPE OF CHIP
POWER
VOLTAGE
LEDS/M
LEDS DISTANCE
CUTTING UNIT
CRI (Ra)
SDCM CHIP
SDCM (final product)
BEAM ANGLE
DIMMING TYPE
LIFETIME
WARRANTY
WORKING TEMP
MAX LENGHT (single input)
LENGHT/REEL
WIDTH
HEIGHT
PHOTOMETRIC PARAMETERS
IP
CODE
CCT
LUMEN/M
LUMEN/W
*Common Aluminium profiles can be used for the installation
see page 516-517
LED STRIPS - SMD
IP20
9621526
3000K
1440
100
9621527
4000K
1470
102
SMD
14.4W/m
24Vdc
180
-
33mm
94
<3
<3
120o
TRIAC / Dali 2 / 0-10
>54000
5 Years
-25°C - 45°C
5m
5m
8mm
1.4mm
Honor Slim Plus
ESSENTIAL
5m (max lenght)
1.4mm
8mm
33mm
350mm
IP20
8
1.4
BASIC PARAMETERS
TYPE OF CHIP
POWER
VOLTAGE
LEDS/M
LEDS DISTANCE
CUTTING UNIT
CRI (Ra)
SDCM CHIP
SDCM (final product)
BEAM ANGLE
DIMMING TYPE
LIFETIME
WARRANTY
WORKING TEMP
MAX LENGHT (single input)
LENGHT/REEL
WIDTH
HEIGHT
PHOTOMETRIC PARAMETERS
IP
CODE
CCT
LUMEN/M
LUMEN/W
*Common Aluminium profiles can be used for the installation
see page 516-517
