DOWNLIGHTS - RECESSED
DOWNLIGHTS - RECESSED

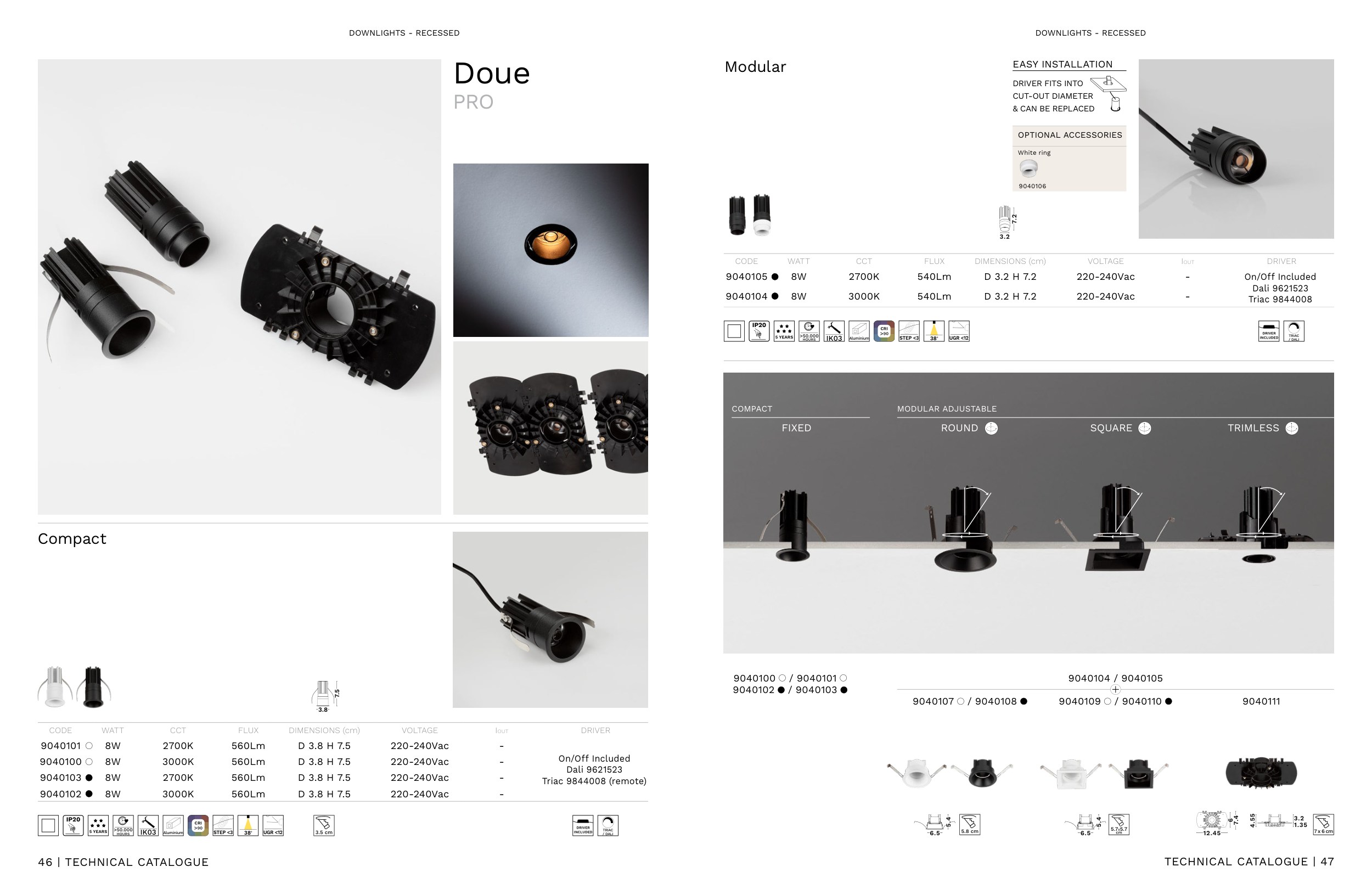

TECHNICAL CATALOGUE | 47
46 | TECHNICAL CATALOGUE
Doue
PRO
Compact
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9040101
8W
2700K
560Lm
D 3.8 H 7.5
220-240Vac
-
On/Off Included
Dali 9621523
Triac 9844008 (remote)
9040100
8W
3000K
560Lm
D 3.8 H 7.5
220-240Vac
-
9040103
8W
2700K
560Lm
D 3.8 H 7.5
220-240Vac
-
9040102
8W
3000K
560Lm
D 3.8 H 7.5
220-240Vac
-
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 STEP <3
38
O UGR <12
3.5 cm
DRIVER
INCLUDED
TRIAC
/ DALI
3.8
7.5
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
IOUT
DRIVER
9040105
8W
2700K
540Lm
D 3.2 H 7.2
220-240Vac
-
On/Off Included
Dali 9621523
Triac 9844008
9040104
8W
3000K
540Lm
D 3.2 H 7.2
220-240Vac
-
IP20
5 YEARS
>50.000
HOURS IK03 Aluminium
CRI
>90 STEP <3
38
O UGR <12
DRIVER
INCLUDED
TRIAC
/ DALI
Modular
3.2
7.2
9040106
White ring
OPTIONAL ACCESSORIES
ROUND
SQUARE
TRIMLESS
FIXED
6.5
5.4
6.5
5.4
12.45
6
3.2
1.35
4.55
7.4
9040104 / 9040105
9040107 / 9040108
9040109 / 9040110
9040111
9040100 / 9040101
9040102 / 9040103
COMPACT
MODULAR ADJUSTABLE
5.8 cm
7 x 6 cm
EASY INSTALLATION
DRIVER FITS INTO
CUT-OUT DIAMETER
& CAN BE REPLACED
5.7X5.7
cm
