TECHNICAL CATALOGUE | 475
474 | TECHNICAL CATALOGUE

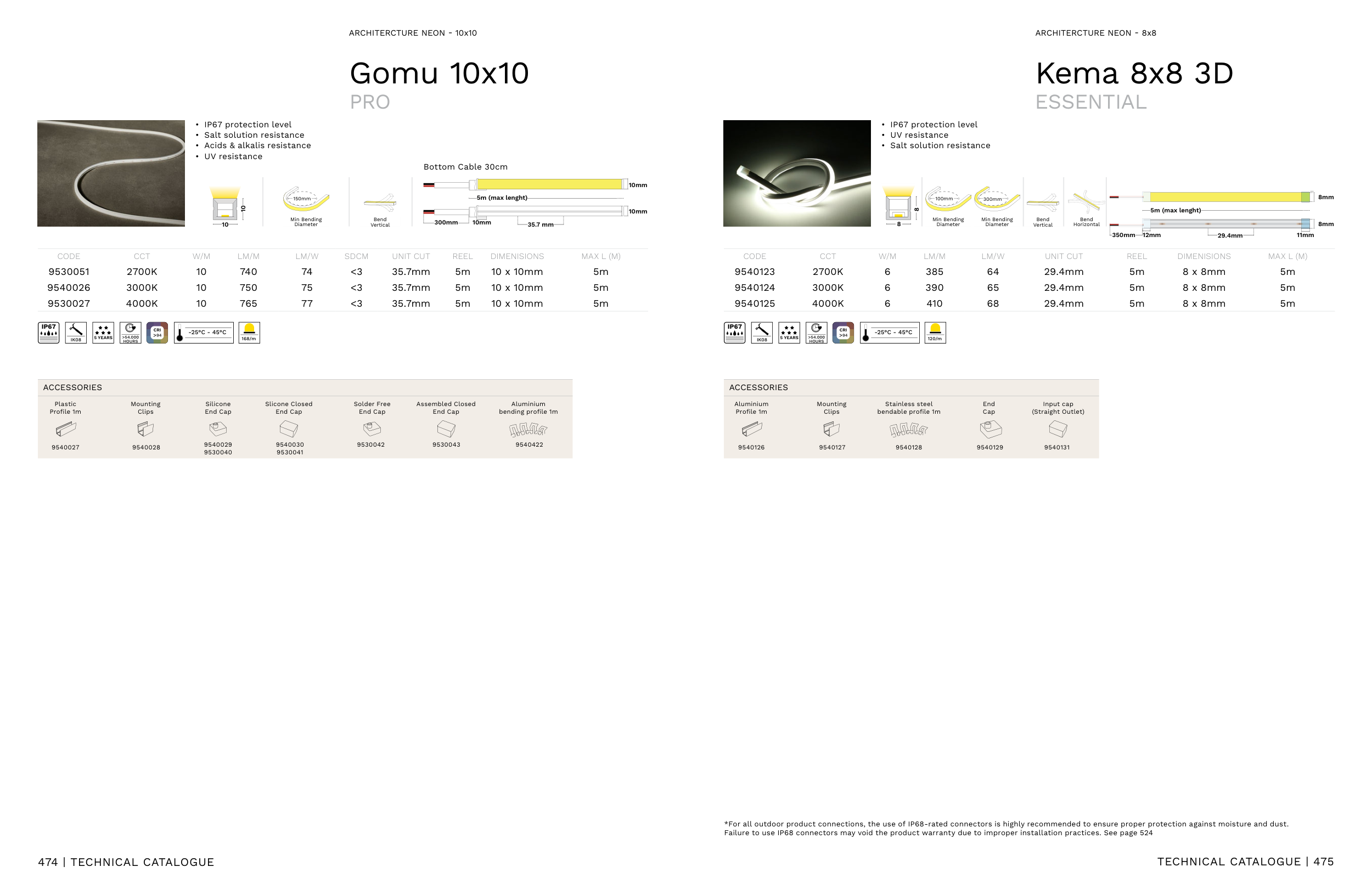

ARCHITERCTURE NEON - 10x10
Gomu 10x10
PRO
10
10
300mm
10mm
5m (max lenght)
10mm
10mm
35.7 mm
9540027
Plastic
Profile 1m
9540028
Mounting
Clips
9540029
9530040
9540422
Silicone
End Cap
Aluminium
bending profile 1m
Solder Free
End Cap
9540030
9530041
9530042
9530043
Slicone Closed
End Cap
Assembled Closed
End Cap
Bottom Cable 30cm
• IP67 protection level
• Salt solution resistance
• Acids & alkalis resistance
• UV resistance
Bend
Vertical
150mm
Min Bending
Diameter
ACCESSORIES
CODE
CCT
W/M
LM/M
LM/W
SDCM
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9530051
2700K
10
740
74
<3
35.7mm
5m
10 x 10mm
5m
9540026
3000K
10
750
75
<3
35.7mm
5m
10 x 10mm
5m
9530027
4000K
10
765
77
<3
35.7mm
5m
10 x 10mm
5m
IK08
>54.000
HOURS
5 YEARS
CRI
>94
-25°C - 45°C
168/m
IP67
ARCHITERCTURE NEON - 8x8
Kema 8x8 3D
ESSENTIAL
29.4mm
350mm
12mm
11mm
5m (max lenght)
8mm
8mm
8
8
9540126
Aluminium
Profile 1m
9540127
Mounting
Clips
9540128
Stainless steel
bendable profile 1m
Input cap
(Straight Outlet)
9540129
9540131
End
Cap
• IP67 protection level
• UV resistance
• Salt solution resistance
Bend
Vertical
100mm
Min Bending
Diameter
ACCESSORIES
CODE
CCT
W/M
LM/M
LM/W
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9540123
2700K
6
385
64
29.4mm
5m
8 x 8mm
5m
9540124
3000K
6
390
65
29.4mm
5m
8 x 8mm
5m
9540125
4000K
6
410
68
29.4mm
5m
8 x 8mm
5m
IK08
>54.000
HOURS
5 YEARS
CRI
>94
-25°C - 45°C
120/m
IP67
300mm
Min Bending
Diameter
Bend
Horizontal
*For all outdoor product connections, the use of IP68-rated connectors is highly recommended to ensure proper protection against moisture and dust.
Failure to use IP68 connectors may void the product warranty due to improper installation practices. See page 524
