FAÇADE & ACCENT LIGHTING
FAÇADE & ACCENT LIGHTING
TECHNICAL CATALOGUE | 431
430 | TECHNICAL CATALOGUE

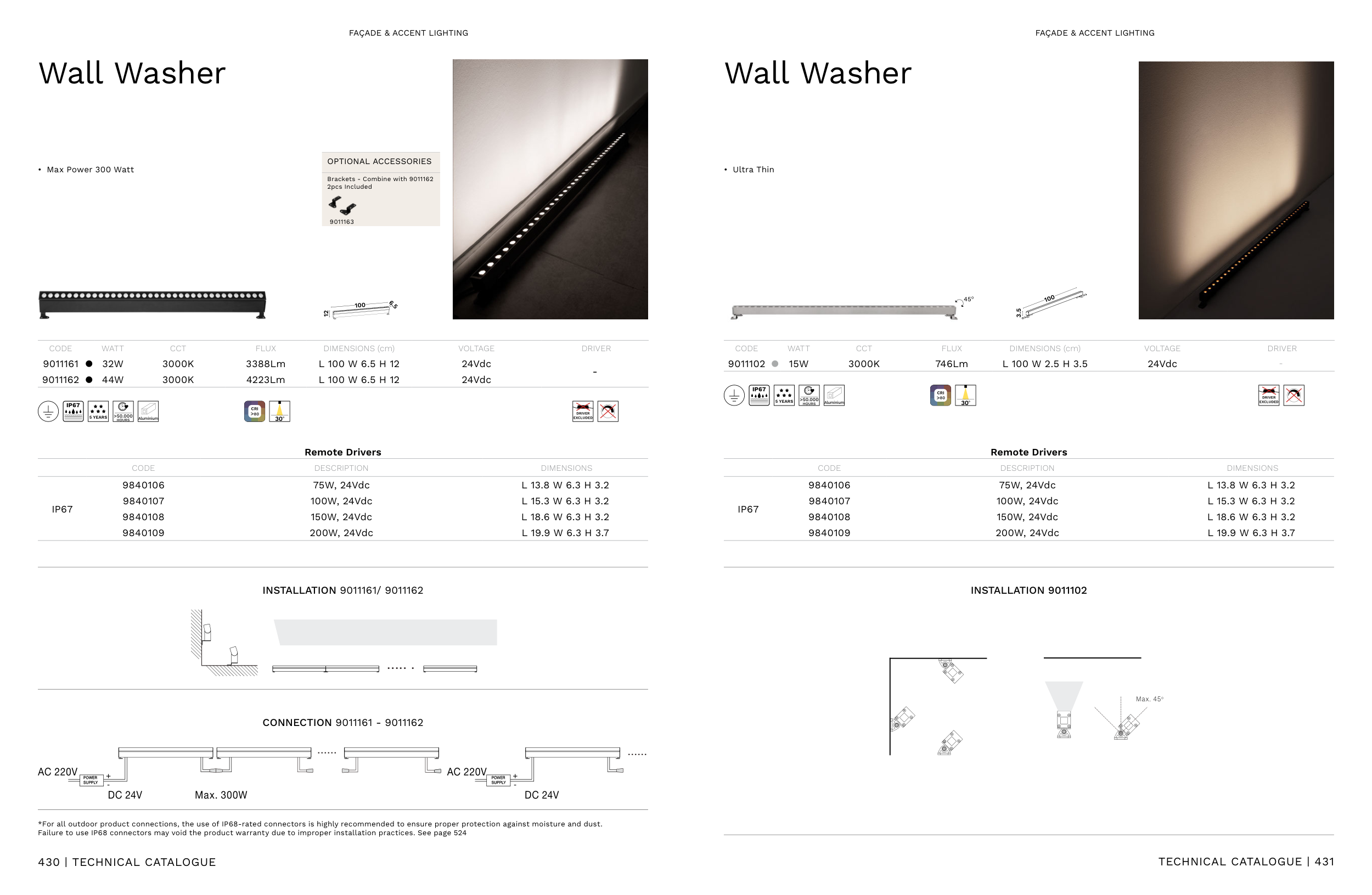

Wall Washer
Wall Washer
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DRIVER
9011161
32W
3000K
3388Lm
L 100 W 6.5 H 12
24Vdc
-
9011162
44W
3000K
4223Lm
L 100 W 6.5 H 12
24Vdc
IP67
5 YEARS
>50.000
HOURS Aluminium
CRI
>80
30
O
DRIVER
EXCLUDED
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DRIVER
9011102
15W
3000K
746Lm
L 100 W 2.5 H 3.5
24Vdc
-
IP67
5 YEARS
>50.000
HOURS Aluminium
CRI
>80
30
O
DRIVER
EXCLUDED
12
6.5
100
..... .
......
......
+
-
+
-
• Max Power 300 Watt
• Ultra Thin
9011163
Brackets - Combine with 9011162
2pcs Included
OPTIONAL ACCESSORIES
3.5
100
45o
Max. 45o
INSTALLATION 9011161/ 9011162
INSTALLATION 9011102
CONNECTION 9011161 - 9011162
*For all outdoor product connections, the use of IP68-rated connectors is highly recommended to ensure proper protection against moisture and dust.
Failure to use IP68 connectors may void the product warranty due to improper installation practices. See page 524
Remote Drivers
Remote Drivers
CODE
DESCRIPTION
DIMENSIONS
IP67
9840106
75W, 24Vdc
L 13.8 W 6.3 H 3.2
9840107
100W, 24Vdc
L 15.3 W 6.3 H 3.2
9840108
150W, 24Vdc
L 18.6 W 6.3 H 3.2
9840109
200W, 24Vdc
L 19.9 W 6.3 H 3.7
CODE
DESCRIPTION
DIMENSIONS
IP67
9840106
75W, 24Vdc
L 13.8 W 6.3 H 3.2
9840107
100W, 24Vdc
L 15.3 W 6.3 H 3.2
9840108
150W, 24Vdc
L 18.6 W 6.3 H 3.2
9840109
200W, 24Vdc
L 19.9 W 6.3 H 3.7
