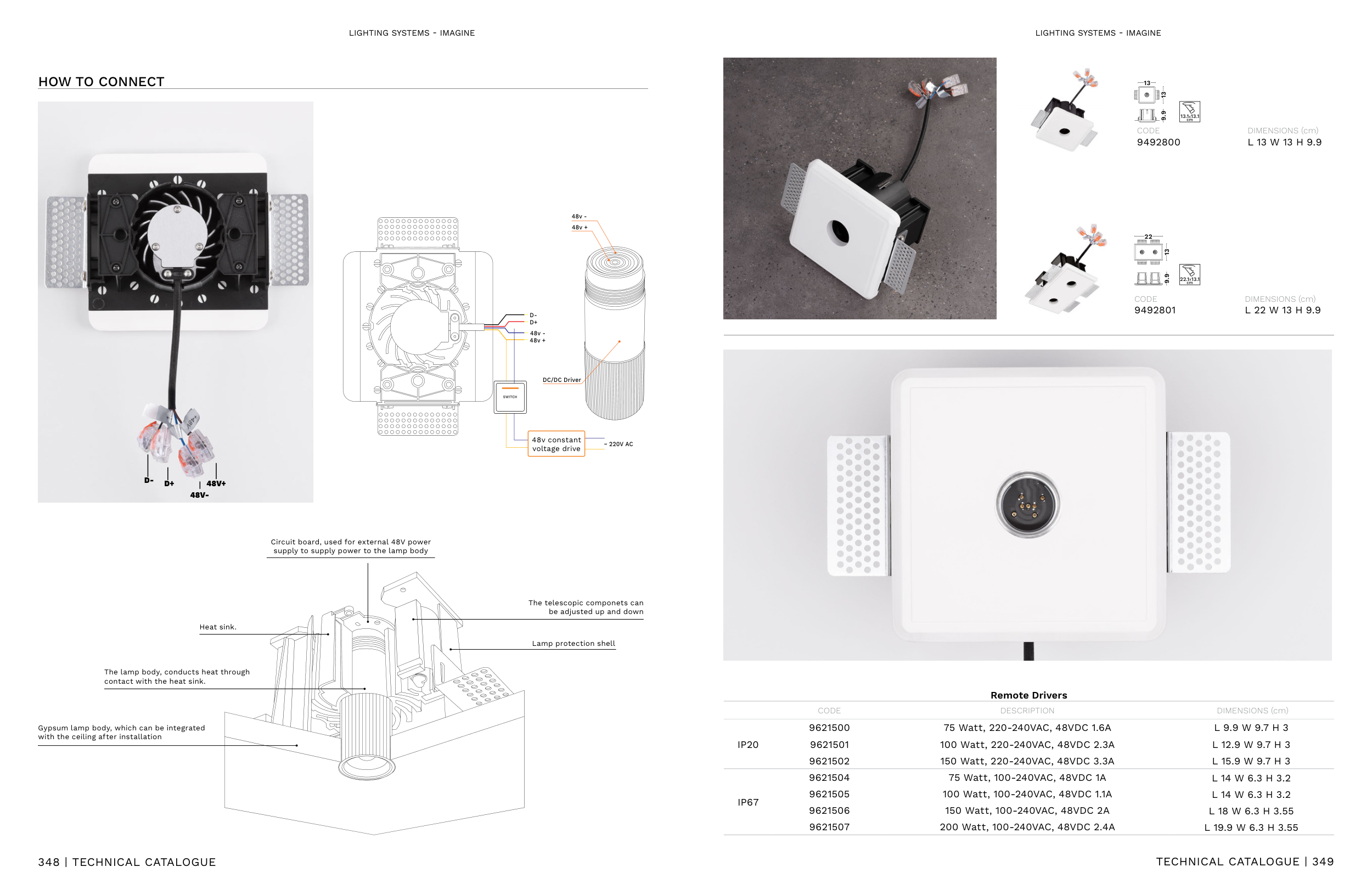

LIGHTING SYSTEMS - IMAGINE
HOW TO CONNECT
D-
D+
48V-
48V+
DC/DC Driver
D-
48v -
48v -
48v +
48v +
48v constant
voltage drive
~ 220V AC
SWITCH
D+
LIGHTING SYSTEMS - IMAGINE
Gypsum lamp body, which can be integrated
with the ceiling after installation
The lamp body, conducts heat through
contact with the heat sink.
Heat sink.
Circuit board, used for external 48V power
supply to supply power to the lamp body
The telescopic componets can
be adjusted up and down
Lamp protection shell
13
9.9
13
13
9.9
22
CODE
DIMENSIONS (cm)
9492801
L 22 W 13 H 9.9
CODE
DIMENSIONS (cm)
9492800
L 13 W 13 H 9.9
Remote Drivers
CODE
DESCRIPTION
DIMENSIONS (cm)
IP20
9621500
75 Watt, 220-240VAC, 48VDC 1.6A
L 9.9 W 9.7 H 3
9621501
100 Watt, 220-240VAC, 48VDC 2.3A
L 12.9 W 9.7 H 3
9621502
150 Watt, 220-240VAC, 48VDC 3.3A
L 15.9 W 9.7 H 3
IP67
9621504
75 Watt, 100-240VAC, 48VDC 1A
L 14 W 6.3 H 3.2
9621505
100 Watt, 100-240VAC, 48VDC 1.1A
L 14 W 6.3 H 3.2
9621506
150 Watt, 100-240VAC, 48VDC 2A
L 18 W 6.3 H 3.55
9621507
200 Watt, 100-240VAC, 48VDC 2.4A
L 19.9 W 6.3 H 3.55
22.1X13.1
cm
13.1X13.1
cm
