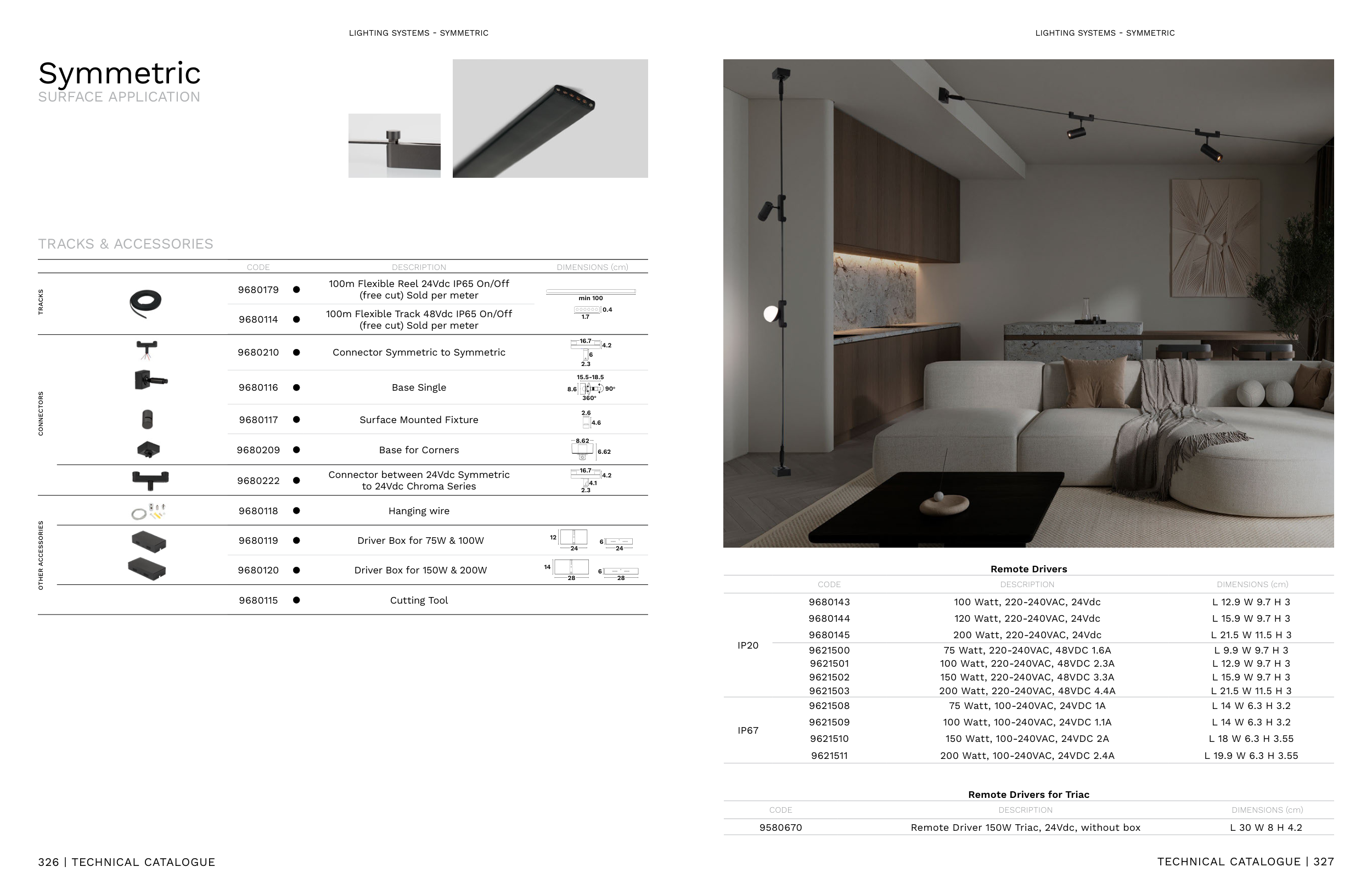

LIGHTING SYSTEMS - SYMMETRIC
Symmetric
SURFACE APPLICATION
CODE
DESCRIPTION
DIMENSIONS (cm)
9680179
100m Flexible Reel 24Vdc IP65 On/Off
(free cut) Sold per meter
0.4
min 100
1.7
9680114
100m Flexible Track 48Vdc IP65 On/Off
(free cut) Sold per meter
9680210
Connector Symmetric to Symmetric
16.7
6
4.2
2.3
9680116
Base Single
15.5-18.5
8.6
360o
90o
9680117
Surface Mounted Fixture
4.6
2.6
9680209
Base for Corners
6.62
8.62
9680222
Connector between 24Vdc Symmetric
to 24Vdc Chroma Series
16.7
4.1
4.2
2.3
9680118
Hanging wire
9680119
Driver Box for 75W & 100W
24
24
12
6
9680120
Driver Box for 150W & 200W
28
28
14
6
9680115
Cutting Tool
TRACKS & ACCESSORIES
TRACKS
CONNECTORS
OTHER ACCESSORIES
LIGHTING SYSTEMS - SYMMETRIC
CODE
DESCRIPTION
DIMENSIONS (cm)
9580670
Remote Driver 150W Triac, 24Vdc, without box
L 30 W 8 H 4.2
Remote Drivers for Triac
Remote Drivers
CODE
DESCRIPTION
DIMENSIONS (cm)
IP20
9680143
100 Watt, 220-240VAC, 24Vdc
L 12.9 W 9.7 H 3
9680144
120 Watt, 220-240VAC, 24Vdc
L 15.9 W 9.7 H 3
9680145
200 Watt, 220-240VAC, 24Vdc
L 21.5 W 11.5 H 3
9621500
75 Watt, 220-240VAC, 48VDC 1.6A
L 9.9 W 9.7 H 3
9621501
100 Watt, 220-240VAC, 48VDC 2.3A
L 12.9 W 9.7 H 3
9621502
150 Watt, 220-240VAC, 48VDC 3.3A
L 15.9 W 9.7 H 3
9621503
200 Watt, 220-240VAC, 48VDC 4.4A
L 21.5 W 11.5 H 3
IP67
9621508
75 Watt, 100-240VAC, 24VDC 1A
L 14 W 6.3 H 3.2
9621509
100 Watt, 100-240VAC, 24VDC 1.1A
L 14 W 6.3 H 3.2
9621510
150 Watt, 100-240VAC, 24VDC 2A
L 18 W 6.3 H 3.55
9621511
200 Watt, 100-240VAC, 24VDC 2.4A
L 19.9 W 6.3 H 3.55
