LOW VOLTAGE TRACKS - BUXTON
S: SURFACE
R: RECESSED

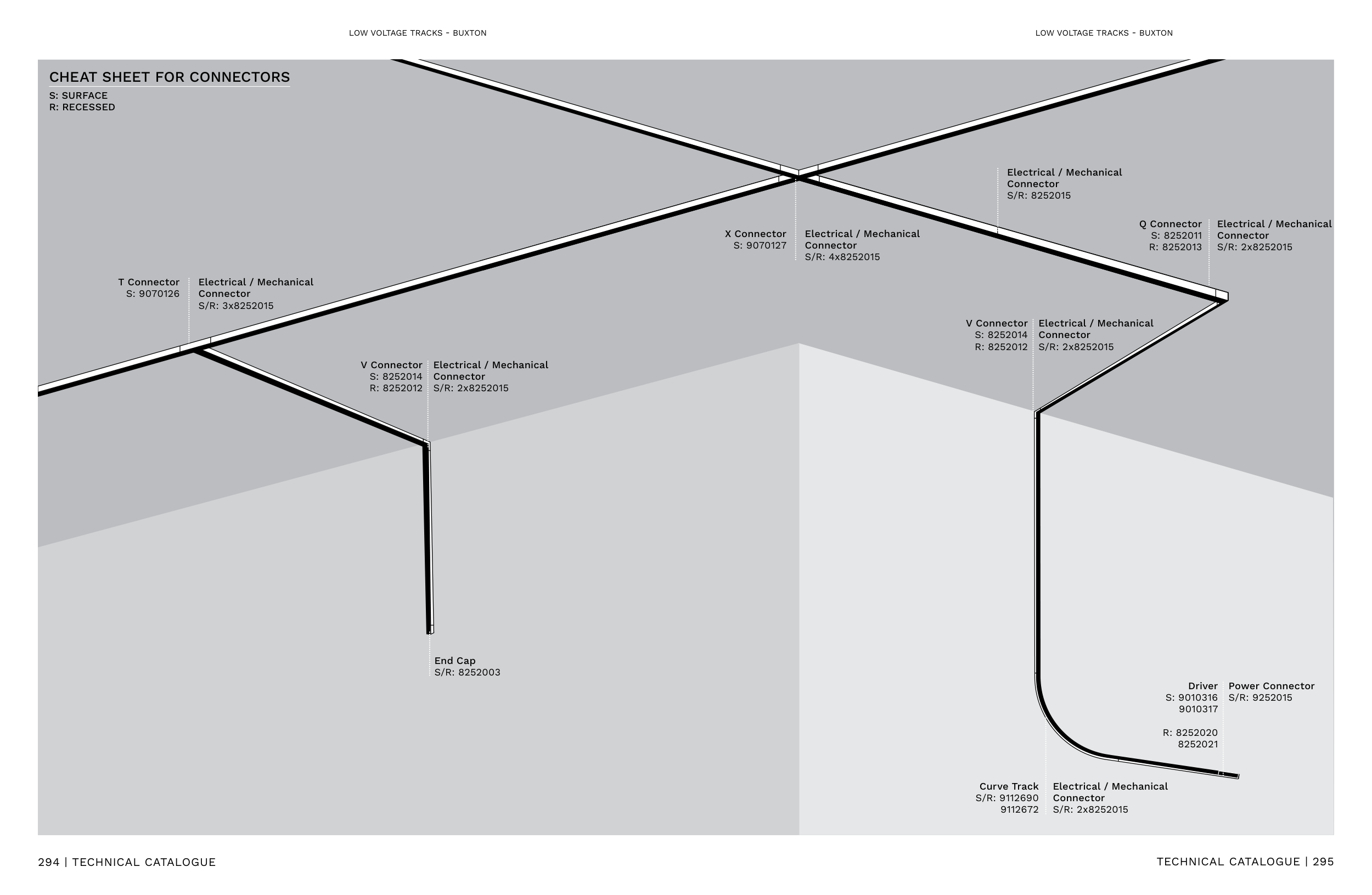

CHEAT SHEET FOR CONNECTORS
T Connector
S: 9070126
V Connector
S: 8252014
R: 8252012
Electrical / Mechanical
Connector
S/R: 3x8252015
Electrical / Mechanical
Connector
S/R: 2x8252015
End Cap
S/R: 8252003
LOW VOLTAGE TRACKS - BUXTON
X Connector
S: 9070127
Electrical / Mechanical
Connector
S/R: 2x8252015
Q Connector
S: 8252011
R: 8252013
V Connector
S: 8252014
R: 8252012
Electrical / Mechanical
Connector
S/R: 2x8252015
Power Connector
S/R: 9252015
Electrical / Mechanical
Connector
S/R: 2x8252015
Electrical / Mechanical
Connector
S/R: 4x8252015
Electrical / Mechanical
Connector
S/R: 8252015
Curve Track
S/R: 9112690
9112672
Driver
S: 9010316
9010317
R: 8252020
8252021
