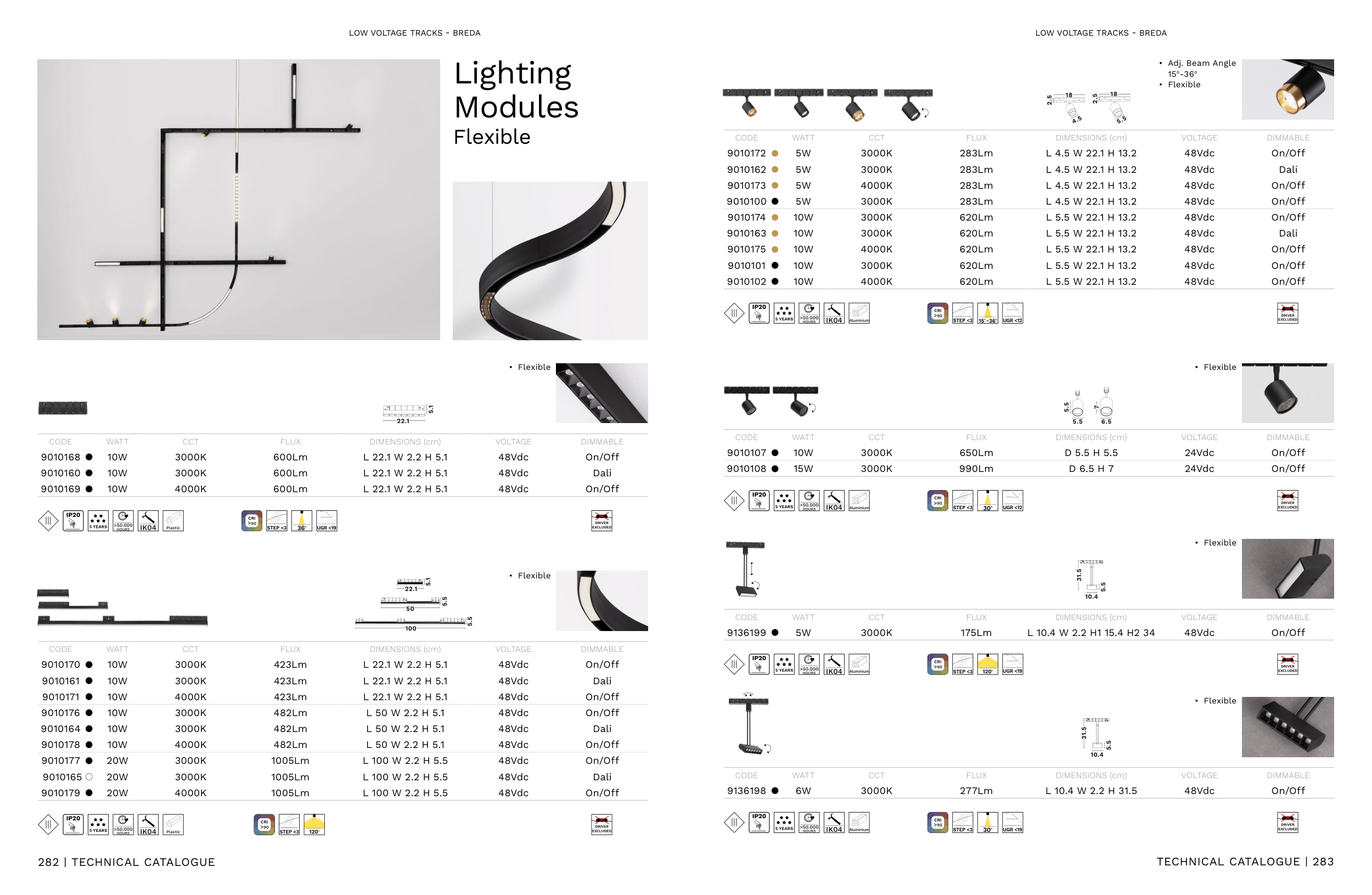

LOW VOLTAGE TRACKS - BREDA
22.1
5.1
50
5.5
100
5.5
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010170
10W
3000K
423Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010161
10W
3000K
423Lm
L 22.1 W 2.2 H 5.1
48Vdc
Dali
9010171
10W
4000K
423Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010176
10W
3000K
482Lm
L 50 W 2.2 H 5.1
48Vdc
On/Off
9010164
10W
3000K
482Lm
L 50 W 2.2 H 5.1
48Vdc
Dali
9010178
10W
4000K
482Lm
L 50 W 2.2 H 5.1
48Vdc
On/Off
9010177
20W
3000K
1005Lm
L 100 W 2.2 H 5.5
48Vdc
On/Off
9010165
20W
3000K
1005Lm
L 100 W 2.2 H 5.5
48Vdc
Dali
9010179
20W
4000K
1005Lm
L 100 W 2.2 H 5.5
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04
Plastic
CRI
>90 STEP <3
120
O
DRIVER
EXCLUDED
LOW VOLTAGE TRACKS - BREDA
22.1
5.1
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010168
10W
3000K
600Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010160
10W
3000K
600Lm
L 22.1 W 2.2 H 5.1
48Vdc
Dali
9010169
10W
4000K
600Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04
Plastic
CRI
>90 STEP <3
36
O UGR <19
DRIVER
EXCLUDED
31.5
5.5
10.4
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9136198
6W
3000K
277Lm
L 10.4 W 2.2 H 31.5
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <19
DRIVER
EXCLUDED
31.5
5.5
10.4
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9136199
5W
3000K
175Lm
L 10.4 W 2.2 H1 15.4 H2 34
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
120
O UGR <19
DRIVER
EXCLUDED
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010172
5W
3000K
283Lm
L 4.5 W 22.1 H 13.2
48Vdc
On/Off
9010162
5W
3000K
283Lm
L 4.5 W 22.1 H 13.2
48Vdc
Dali
9010173
5W
4000K
283Lm
L 4.5 W 22.1 H 13.2
48Vdc
On/Off
9010100
5W
3000K
283Lm
L 4.5 W 22.1 H 13.2
48Vdc
On/Off
9010174
10W
3000K
620Lm
L 5.5 W 22.1 H 13.2
48Vdc
On/Off
9010163
10W
3000K
620Lm
L 5.5 W 22.1 H 13.2
48Vdc
Dali
9010175
10W
4000K
620Lm
L 5.5 W 22.1 H 13.2
48Vdc
On/Off
9010101
10W
3000K
620Lm
L 5.5 W 22.1 H 13.2
48Vdc
On/Off
9010102
10W
4000K
620Lm
L 5.5 W 22.1 H 13.2
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3 15
O -36
O UGR <12
DRIVER
EXCLUDED
2.5
4.5
18
2.5
5.5
18
Lighting
Modules
Flexible
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010107
10W
3000K
650Lm
D 5.5 H 5.5
24Vdc
On/Off
9010108
15W
3000K
990Lm
D 6.5 H 7
24Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <12
DRIVER
EXCLUDED
5.5
6.5
5.5
7
• Flexible
• Flexible
• Flexible
• Flexible
• Adj. Beam Angle
15o-36o
• Flexible
• Flexible
