TECHNICAL CATALOGUE | 281
280 | TECHNICAL CATALOGUE

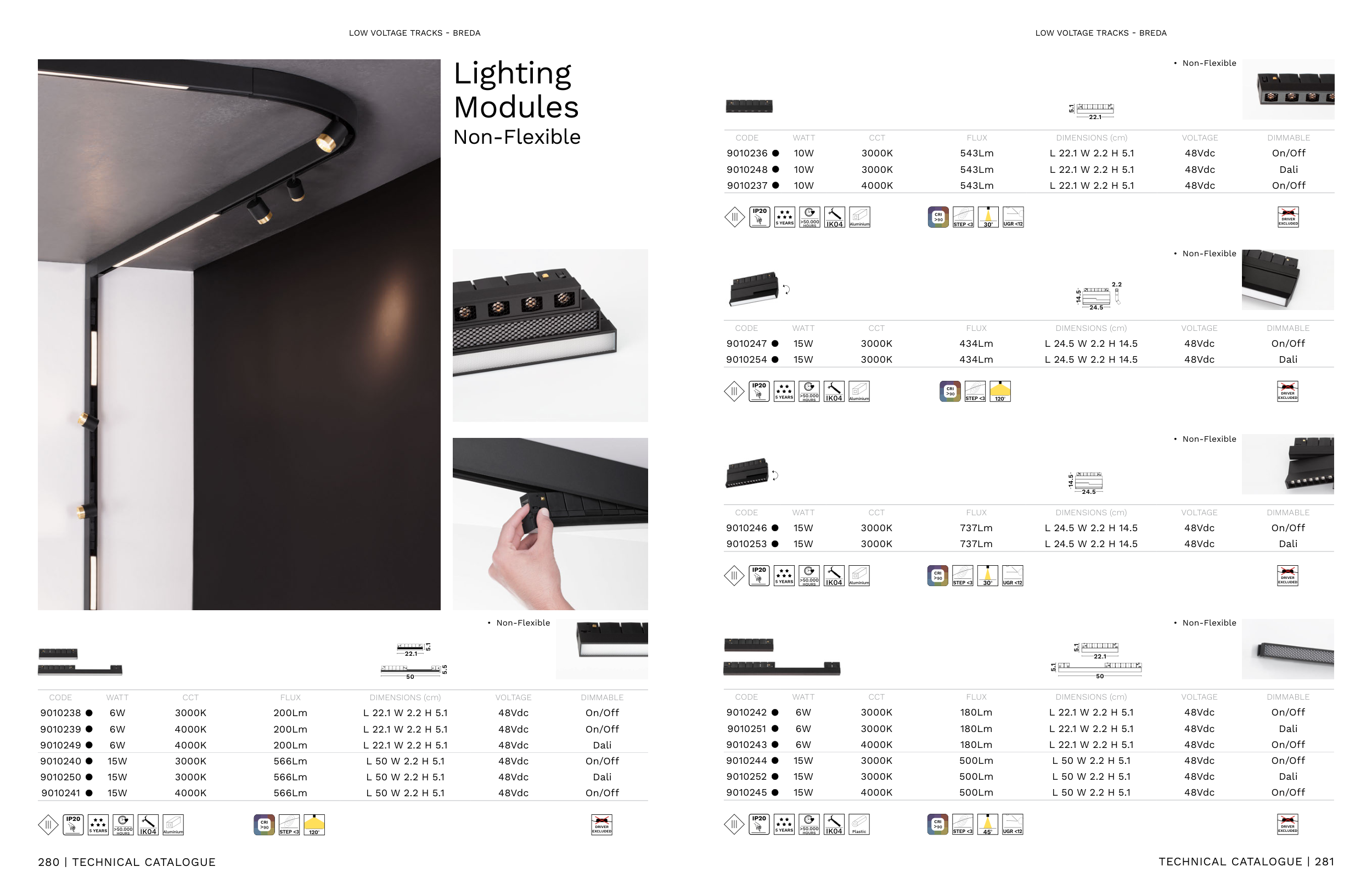

LOW VOLTAGE TRACKS - BREDA
Lighting
Modules
Non-Flexible
22.1
5.1
50
5.5
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010238
6W
3000K
200Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010239
6W
4000K
200Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010249
6W
4000K
200Lm
L 22.1 W 2.2 H 5.1
48Vdc
Dali
9010240
15W
3000K
566Lm
L 50 W 2.2 H 5.1
48Vdc
On/Off
9010250
15W
3000K
566Lm
L 50 W 2.2 H 5.1
48Vdc
Dali
9010241
15W
4000K
566Lm
L 50 W 2.2 H 5.1
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
120
O
DRIVER
EXCLUDED
LOW VOLTAGE TRACKS - BREDA
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010247
15W
3000K
434Lm
L 24.5 W 2.2 H 14.5
48Vdc
On/Off
9010254
15W
3000K
434Lm
L 24.5 W 2.2 H 14.5
48Vdc
Dali
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
120
O
DRIVER
EXCLUDED
24.5
14.5
2.2
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010236
10W
3000K
543Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010248
10W
3000K
543Lm
L 22.1 W 2.2 H 5.1
48Vdc
Dali
9010237
10W
4000K
543Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <12
DRIVER
EXCLUDED
22.1
5.1
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010242
6W
3000K
180Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010251
6W
3000K
180Lm
L 22.1 W 2.2 H 5.1
48Vdc
Dali
9010243
6W
4000K
180Lm
L 22.1 W 2.2 H 5.1
48Vdc
On/Off
9010244
15W
3000K
500Lm
L 50 W 2.2 H 5.1
48Vdc
On/Off
9010252
15W
3000K
500Lm
L 50 W 2.2 H 5.1
48Vdc
Dali
9010245
15W
4000K
500Lm
L 50 W 2.2 H 5.1
48Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04
Plastic
CRI
>90 STEP <3
45
O UGR <12
DRIVER
EXCLUDED
22.1
5.1
5.1
50
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9010246
15W
3000K
737Lm
L 24.5 W 2.2 H 14.5
48Vdc
On/Off
9010253
15W
3000K
737Lm
L 24.5 W 2.2 H 14.5
48Vdc
Dali
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <12
DRIVER
EXCLUDED
24.5
14.5
• Non-Flexible
• Non-Flexible
• Non-Flexible
• Non-Flexible
• Non-Flexible
