LOW VOLTAGE TRACKS - SHALLOW
S: SURFACE
R: RECESSED

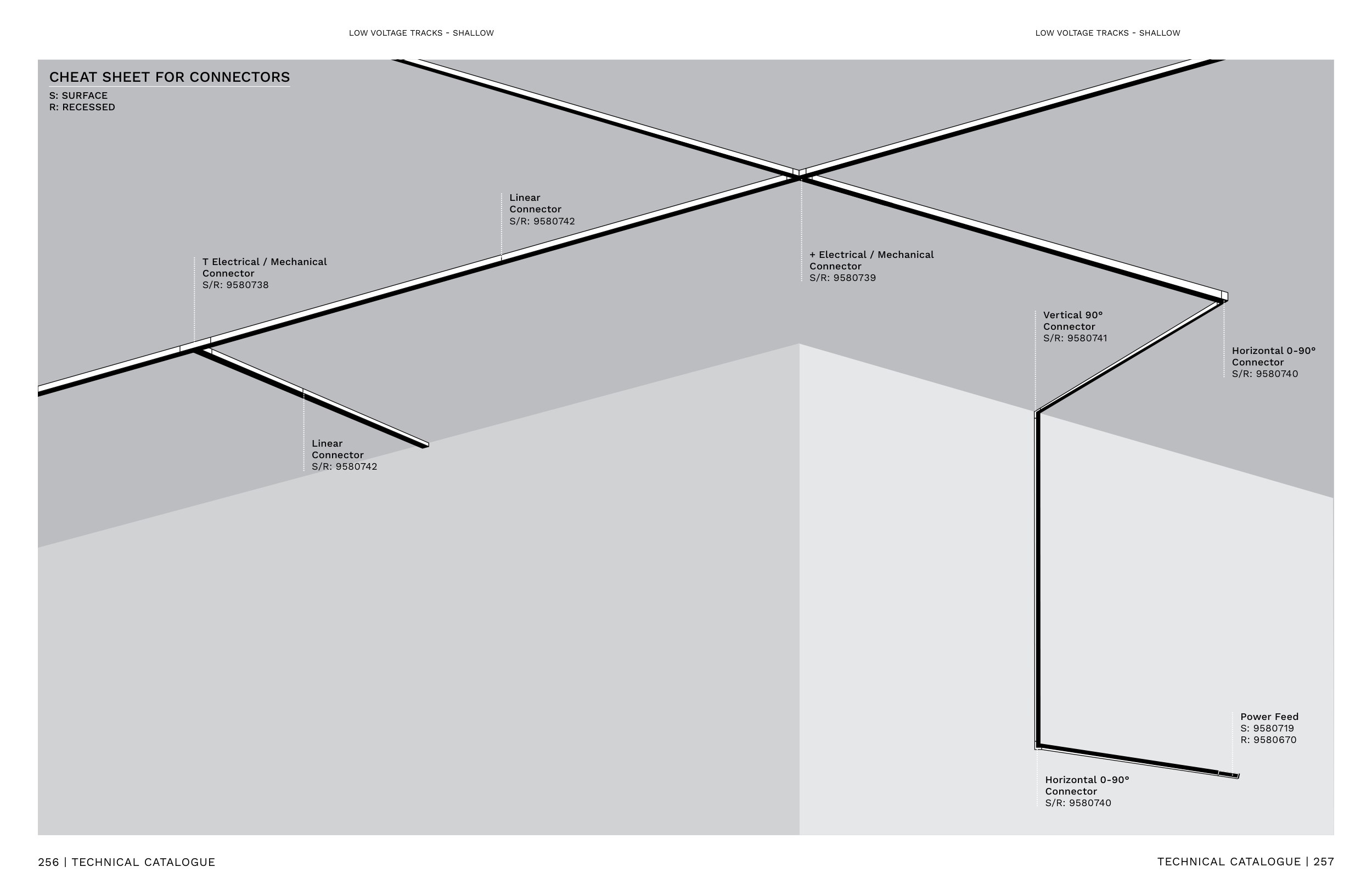

CHEAT SHEET FOR CONNECTORS
T Electrical / Mechanical
Connector
S/R: 9580738
Linear
Connector
S/R: 9580742
Linear
Connector
S/R: 9580742
LOW VOLTAGE TRACKS - SHALLOW
+ Electrical / Mechanical
Connector
S/R: 9580739
Horizontal 0-90°
Connector
S/R: 9580740
Horizontal 0-90°
Connector
S/R: 9580740
Vertical 90°
Connector
S/R: 9580741
Power Feed
S: 9580719
R: 9580670
