DOWNLIGHTS - RECESSED
DOWNLIGHTS - RECESSED
TECHNICAL CATALOGUE | 23
22 | TECHNICAL CATALOGUE
9
6
9
5.6
9
7.5
9
5.1
FIXED
FIXED
WITH TRIM
TRIMLESS

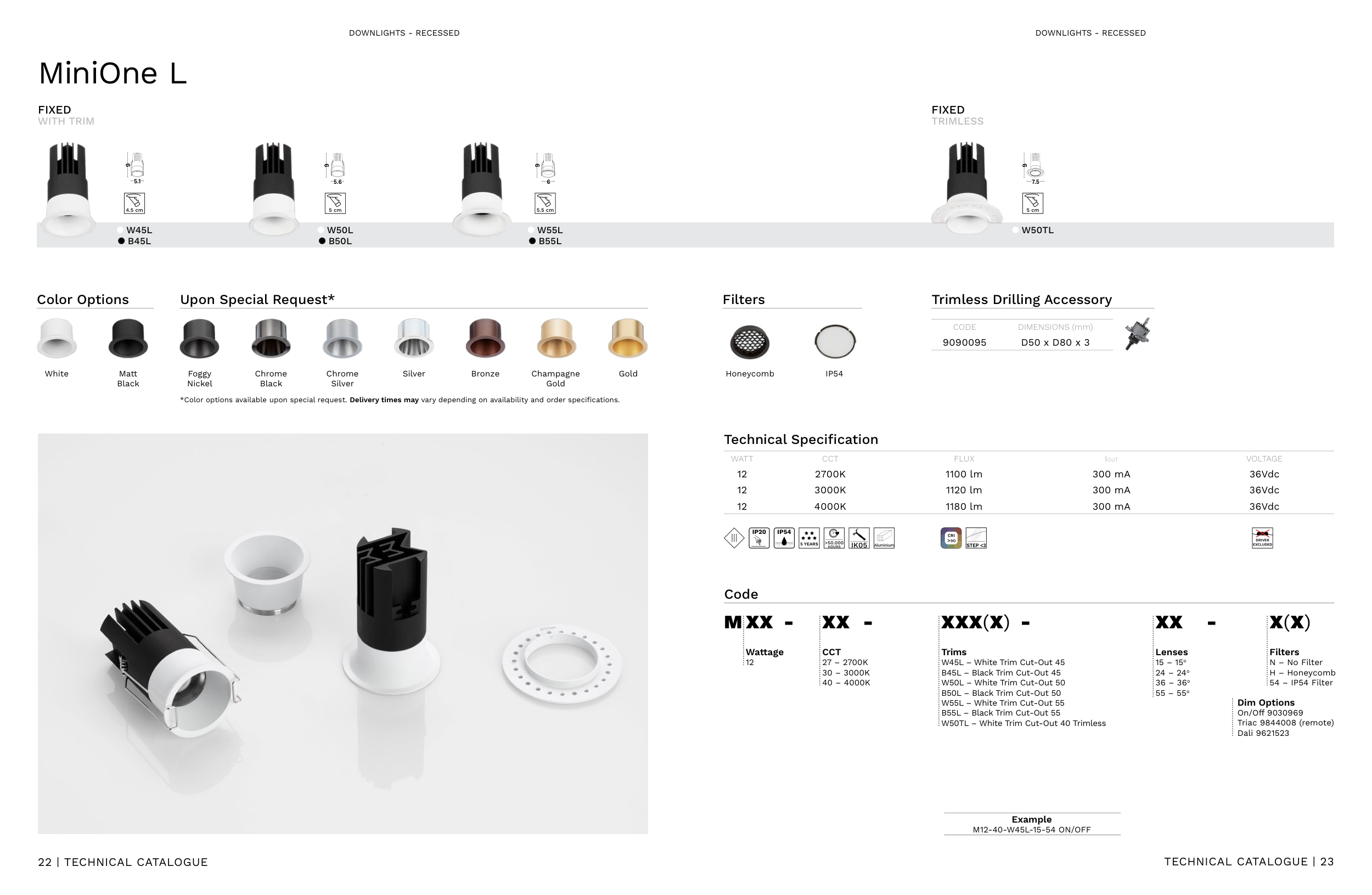

MiniOne L
WATT
CCT
FLUX
IOUT
VOLTAGE
12
2700K
1100 lm
300 mA
36Vdc
12
3000K
1120 lm
300 mA
36Vdc
12
4000K
1180 lm
300 mA
36Vdc
IP20
IP54
5 YEARS
>50.000
HOURS IK05 Aluminium
CRI
>90 STEP <3
DRIVER
EXCLUDED
5 cm
4.5 cm
5 cm
5.5 cm
Example
M12-40-W45L-15-54 ON/OFF
Trims
W45L – White Trim Cut-Out 45
B45L – Black Trim Cut-Out 45
W50L – White Trim Cut-Out 50
B50L – Black Trim Cut-Out 50
W55L – White Trim Cut-Out 55
B55L – Black Trim Cut-Out 55
W50TL – White Trim Cut-Out 40 Trimless
CCT
27 – 2700K
30 – 3000K
40 – 4000K
Lenses
15 – 15o
24 – 24o
36 – 36o
55 – 55o
Filters
N – No Filter
H – Honeycomb
54 – IP54 Filter
Color Options
Code
Filters
Honeycomb
IP54
White
Chrome
Silver
Bronze
Matt
Black
Chrome
Black
Silver
Gold
X(X)
-
-
-
XX
XX
XXX(X)
W45L
W50L
W55L
W50TL
B45L
B50L
B55L
Upon Special Request*
*Color options available upon special request. Delivery times may vary depending on availability and order specifications.
Technical Specification
Foggy
Nickel
Champagne
Gold
CODE
DIMENSIONS (mm)
9090095
D50 x D80 x 3
Trimless Drilling Accessory
Dim Options
On/Off 9030969
Triac 9844008 (remote)
Dali 9621523
Wattage
12
XX
M
-
