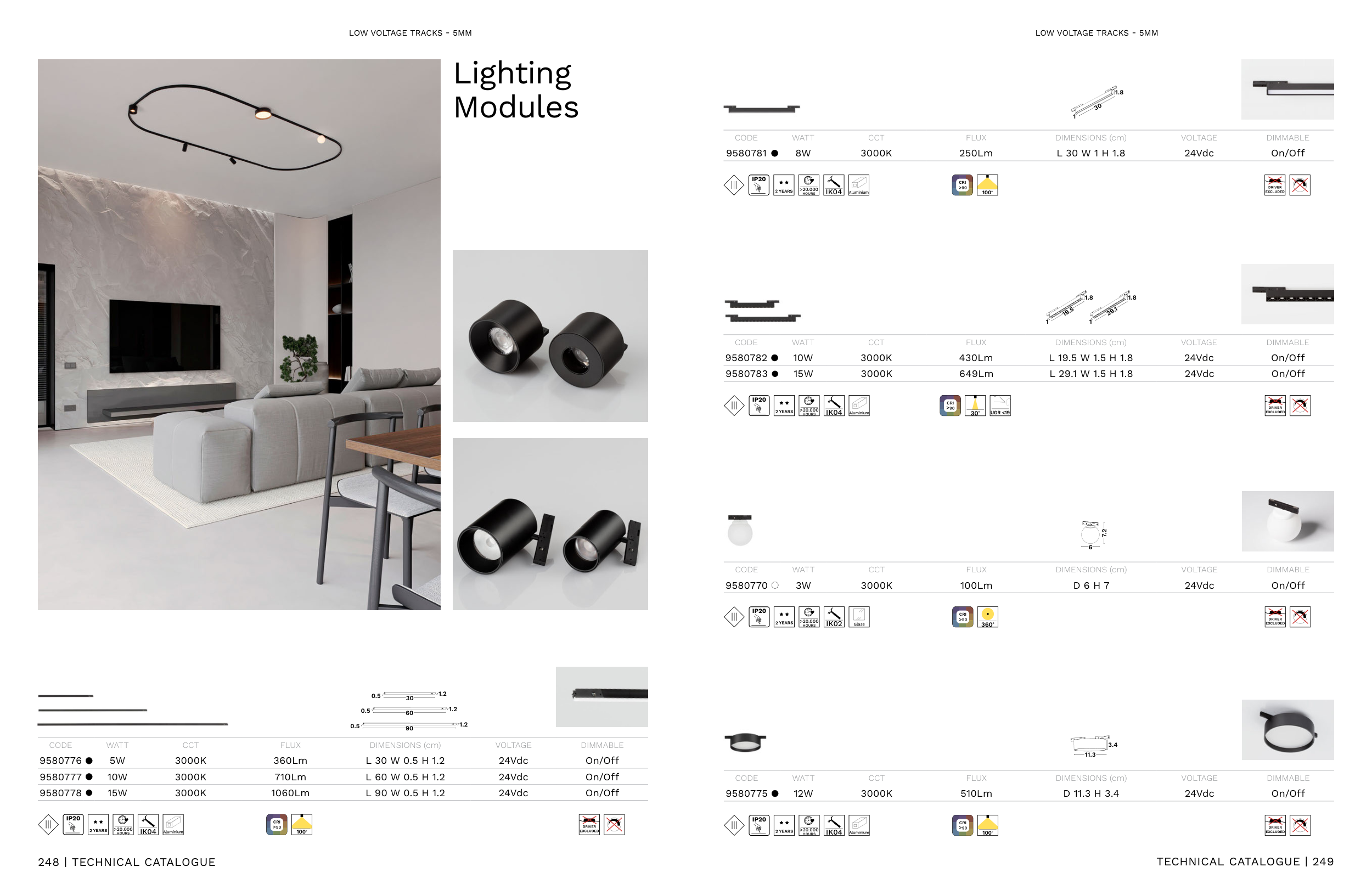

TECHNICAL CATALOGUE | 249
248 | TECHNICAL CATALOGUE
LOW VOLTAGE TRACKS - 5MM
Lighting
Modules
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9580776
5W
3000K
360Lm
L 30 W 0.5 H 1.2
24Vdc
On/Off
9580777
10W
3000K
710Lm
L 60 W 0.5 H 1.2
24Vdc
On/Off
0.5
1.2
30
0.5
1.2
60
0.5
1.2
90
LOW VOLTAGE TRACKS - 5MM
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9580770
3W
3000K
100Lm
D 6 H 7
24Vdc
On/Off
IP20
YEARS
>20.000
HOURS IK02
Glass
CRI
>90 360
O
DRIVER
EXCLUDED
6
7.2
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9580781
8W
3000K
250Lm
L 30 W 1 H 1.8
24Vdc
On/Off
IP20
YEARS
>20.000
HOURS IK04 Aluminium
CRI
>90
100
O
DRIVER
EXCLUDED
1.8
1
30
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9580782
10W
3000K
430Lm
L 19.5 W 1.5 H 1.8
24Vdc
On/Off
1.8
1
19.5
1.8
1
29.1
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9580775
12W
3000K
510Lm
D 11.3 H 3.4
24Vdc
On/Off
IP20
YEARS
>20.000
HOURS IK04 Aluminium
CRI
>90
100
O
DRIVER
EXCLUDED
11.3
3.4
9580778
15W
3000K
1060Lm
L 90 W 0.5 H 1.2
24Vdc
On/Off
IP20
YEARS
>20.000
HOURS IK04 Aluminium
CRI
>90
100
O
DRIVER
EXCLUDED
9580783
15W
3000K
649Lm
L 29.1 W 1.5 H 1.8
24Vdc
On/Off
IP20
YEARS
>20.000
HOURS IK04 Aluminium
CRI
>90
30
O UGR <19
DRIVER
EXCLUDED
