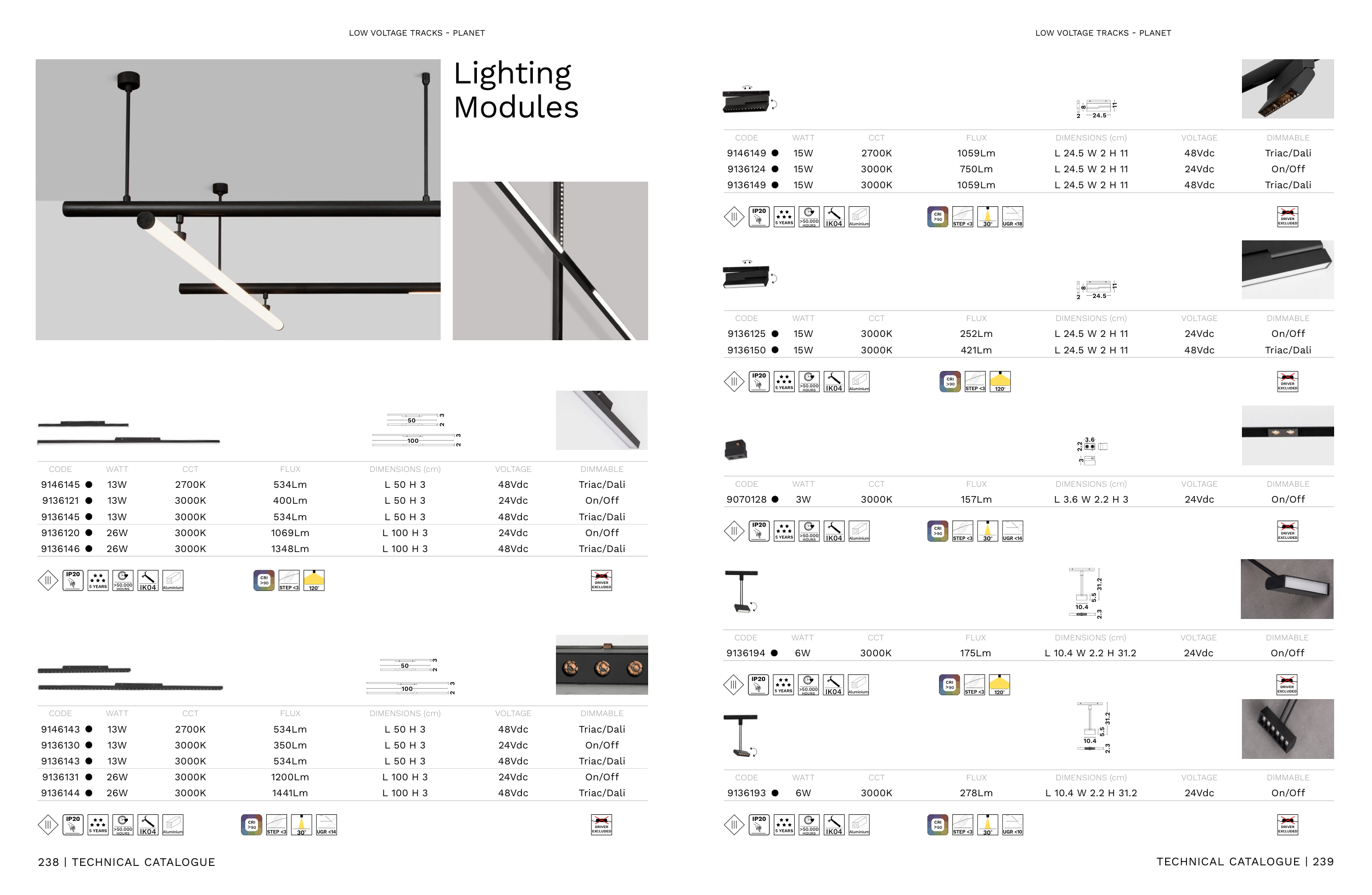

LOW VOLTAGE TRACKS - PLANET
Lighting
Modules
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9070128
3W
3000K
157Lm
L 3.6 W 2.2 H 3
24Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <14
DRIVER
EXCLUDED
2.2
3.6
3
LOW VOLTAGE TRACKS - PLANET
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9146149
15W
2700K
1059Lm
L 24.5 W 2 H 11
48Vdc
Triac/Dali
9136124
15W
3000K
750Lm
L 24.5 W 2 H 11
24Vdc
On/Off
9136149
15W
3000K
1059Lm
L 24.5 W 2 H 11
48Vdc
Triac/Dali
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <18
DRIVER
EXCLUDED
2
24.5
8
11
2
24.5
8
11
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9136125
15W
3000K
252Lm
L 24.5 W 2 H 11
24Vdc
On/Off
9136150
15W
3000K
421Lm
L 24.5 W 2 H 11
48Vdc
Triac/Dali
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
120
O
DRIVER
EXCLUDED
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9146145
13W
2700K
534Lm
L 50 H 3
48Vdc
Triac/Dali
9136121
13W
3000K
400Lm
L 50 H 3
24Vdc
On/Off
9136145
13W
3000K
534Lm
L 50 H 3
48Vdc
Triac/Dali
9136120
26W
3000K
1069Lm
L 100 H 3
24Vdc
On/Off
9136146
26W
3000K
1348Lm
L 100 H 3
48Vdc
Triac/Dali
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
120
O
DRIVER
EXCLUDED
3
2
100
3
2
50
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9146143
13W
2700K
534Lm
L 50 H 3
48Vdc
Triac/Dali
9136130
13W
3000K
350Lm
L 50 H 3
24Vdc
On/Off
9136143
13W
3000K
534Lm
L 50 H 3
48Vdc
Triac/Dali
9136131
26W
3000K
1200Lm
L 100 H 3
24Vdc
On/Off
9136144
26W
3000K
1441Lm
L 100 H 3
48Vdc
Triac/Dali
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <14
DRIVER
EXCLUDED
3
2
100
3
2
50
31.2
5.5
2.3
10.4
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9136193
6W
3000K
278Lm
L 10.4 W 2.2 H 31.2
24Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
30
O UGR <10
DRIVER
EXCLUDED
31.2
5.5
2.3
10.4
CODE
WATT
CCT
FLUX
DIMENSIONS (cm)
VOLTAGE
DIMMABLE
9136194
6W
3000K
175Lm
L 10.4 W 2.2 H 31.2
24Vdc
On/Off
IP20
5 YEARS
>50.000
HOURS IK04 Aluminium
CRI
>90 STEP <3
120
O
DRIVER
EXCLUDED
