DOWNLIGHTS - RECESSED
DOWNLIGHTS - RECESSED
TECHNICAL CATALOGUE | 19
18 | TECHNICAL CATALOGUE
FIXED
FIXED
ADJUSTABLE
WITH TRIM
TRIMLESS
WTIH TRIM

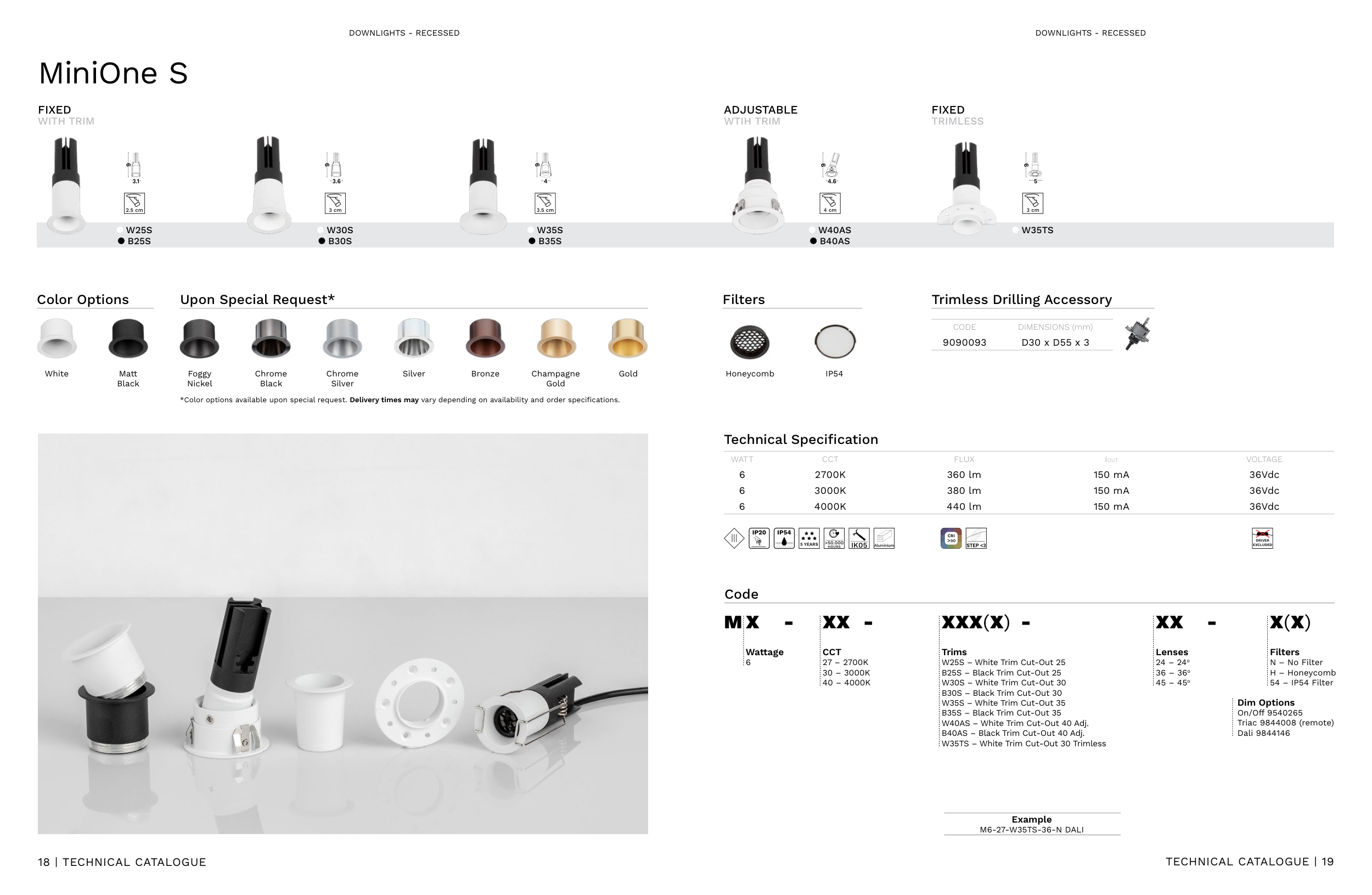

MiniOne S
WATT
CCT
FLUX
IOUT
VOLTAGE
6
2700K
360 lm
150 mA
36Vdc
6
3000K
380 lm
150 mA
36Vdc
6
4000K
440 lm
150 mA
36Vdc
IP20
IP54
5 YEARS
>50.000
HOURS IK05 Aluminium
CRI
>90 STEP <3
DRIVER
EXCLUDED
CODE
DIMENSIONS (mm)
9090093
D30 x D55 x 3
9
3.6
3 cm
2.5 cm
4 cm
3 cm
9
5
9
3.1
3.5 cm
9
4
9
4.6
Wattage
6
Example
M6-27-W35TS-36-N DALI
Trims
W25S – White Trim Cut-Out 25
B25S – Black Trim Cut-Out 25
W30S – White Trim Cut-Out 30
B30S – Black Trim Cut-Out 30
W35S – White Trim Cut-Out 35
B35S – Black Trim Cut-Out 35
W40AS – White Trim Cut-Out 40 Adj.
B40AS – Black Trim Cut-Out 40 Adj.
W35TS – White Trim Cut-Out 30 Trimless
CCT
27 – 2700K
30 – 3000K
40 – 4000K
Lenses
24 – 24o
36 – 36o
45 – 45o
Filters
N – No Filter
H – Honeycomb
54 – IP54 Filter
Upon Special Request*
*Color options available upon special request. Delivery times may vary depending on availability and order specifications.
Color Options
Code
Technical Specification
Filters
Trimless Drilling Accessory
Honeycomb
IP54
X
M
X(X)
-
-
-
-
XX
XX
XXX(X)
W25S
W30S
W35S
W40AS
W35TS
B25S
B30S
B35S
B40AS
White
Foggy
Nickel
Chrome
Silver
Bronze
Matt
Black
Chrome
Black
Silver
Champagne
Gold
Gold
Dim Options
On/Off 9540265
Triac 9844008 (remote)
Dali 9844146
