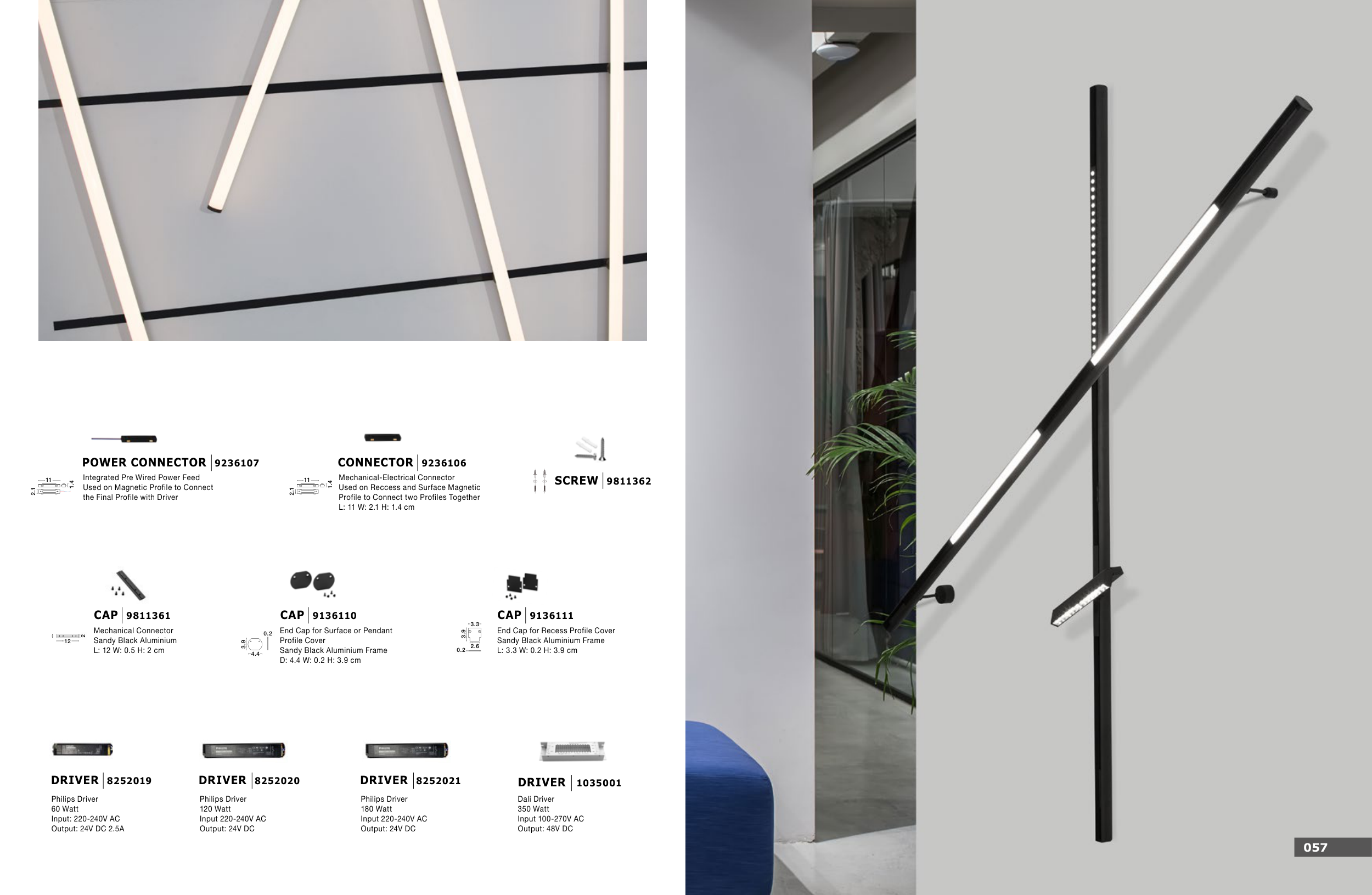

Philips Driver
60 Watt
Input: 220-240V AC
Output: 24V DC 2.5A
Philips Driver
120 Watt
Input 220-240V AC
Output: 24V DC
Philips Driver
180 Watt
Input 220-240V AC
Output: 24V DC
Dali Driver
350 Watt
Input 100-270V AC
Output: 48V DC
DRIVER 8252019
DRIVER 8252020
DRIVER 8252021
3.9
3.9
0.2
0.2
End Cap for Recess Profile Cover
Sandy Black Aluminium Frame
L: 3.3 W: 0.2 H: 3.9 cm
Mechanical Connector
Sandy Black Aluminium
L: 12 W: 0.5 H: 2 cm
End Cap for Surface or Pendant
Profile Cover
Sandy Black Aluminium Frame
D: 4.4 W: 0.2 H: 3.9 cm
Integrated Pre Wired Power Feed
Used on Magnetic Profile to Connect
the Final Profile with Driver
POWER CONNECTOR 9236107
CAP 9136111
CAP 9811361
CAP 9136110
Mechanical-Electrical Connector
Used on Reccess and Surface Magnetic
Profile to Connect two Profiles Together
L: 11 W: 2.1 H: 1.4 cm
CONNECTOR 9236106
11
11
1.4
1.4
2.1
2.1
2
12
4.4
3.3
2.6
SCREW 9811362
DRIVER 1035001
057
