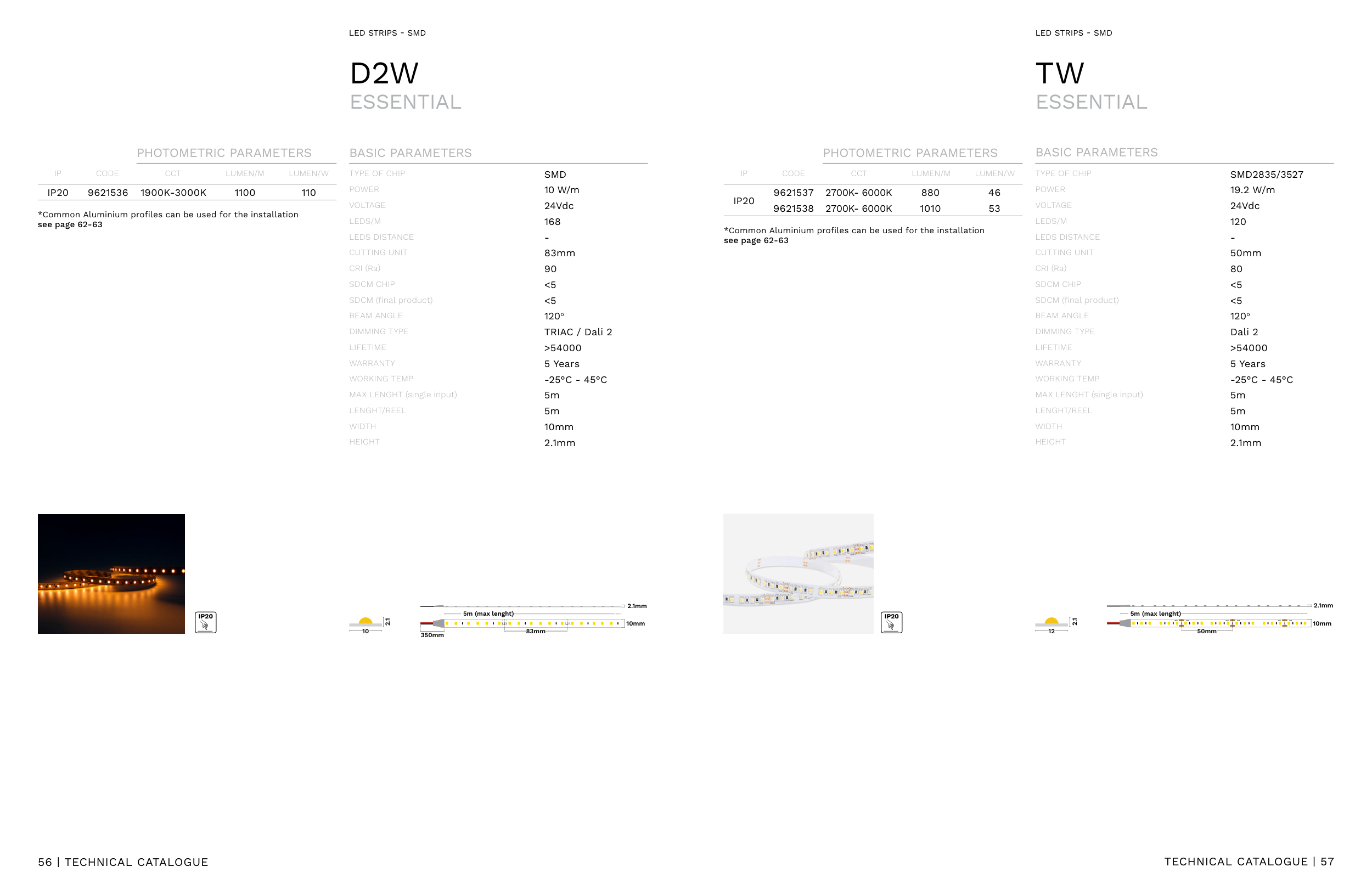

LED STRIPS - SMD
IP20
9621536
1900K-3000K
1100
110
SMD
10 W/m
24Vdc
168
-
83mm
90
<5
<5
120o
TRIAC / Dali 2
>54000
5 Years
-25°C - 45°C
5m
5m
10mm
2.1mm
D2W
ESSENTIAL
5m (max lenght)
2.1mm
10mm
83mm
350mm
IP20
10
2.1
BASIC PARAMETERS
TYPE OF CHIP
POWER
VOLTAGE
LEDS/M
LEDS DISTANCE
CUTTING UNIT
CRI (Ra)
SDCM CHIP
SDCM (final product)
BEAM ANGLE
DIMMING TYPE
LIFETIME
WARRANTY
WORKING TEMP
MAX LENGHT (single input)
LENGHT/REEL
WIDTH
HEIGHT
PHOTOMETRIC PARAMETERS
IP
CODE
CCT
LUMEN/M
LUMEN/W
*Common Aluminium profiles can be used for the installation
see page 62-63
LED STRIPS - SMD
SMD2835/3527
19.2 W/m
24Vdc
120
-
50mm
80
<5
<5
120o
Dali 2
>54000
5 Years
-25°C - 45°C
5m
5m
10mm
2.1mm
BASIC PARAMETERS
TW
ESSENTIAL
IP20
9621537
2700K- 6000K
880
46
9621538
2700K- 6000K
1010
53
5m (max lenght)
2.1mm
10mm
50mm
TYPE OF CHIP
POWER
VOLTAGE
LEDS/M
LEDS DISTANCE
CUTTING UNIT
CRI (Ra)
SDCM CHIP
SDCM (final product)
BEAM ANGLE
DIMMING TYPE
LIFETIME
WARRANTY
WORKING TEMP
MAX LENGHT (single input)
LENGHT/REEL
WIDTH
HEIGHT
PHOTOMETRIC PARAMETERS
IP20
12
2.1
IP
CODE
CCT
LUMEN/M
LUMEN/W
*Common Aluminium profiles can be used for the installation
see page 62-63
