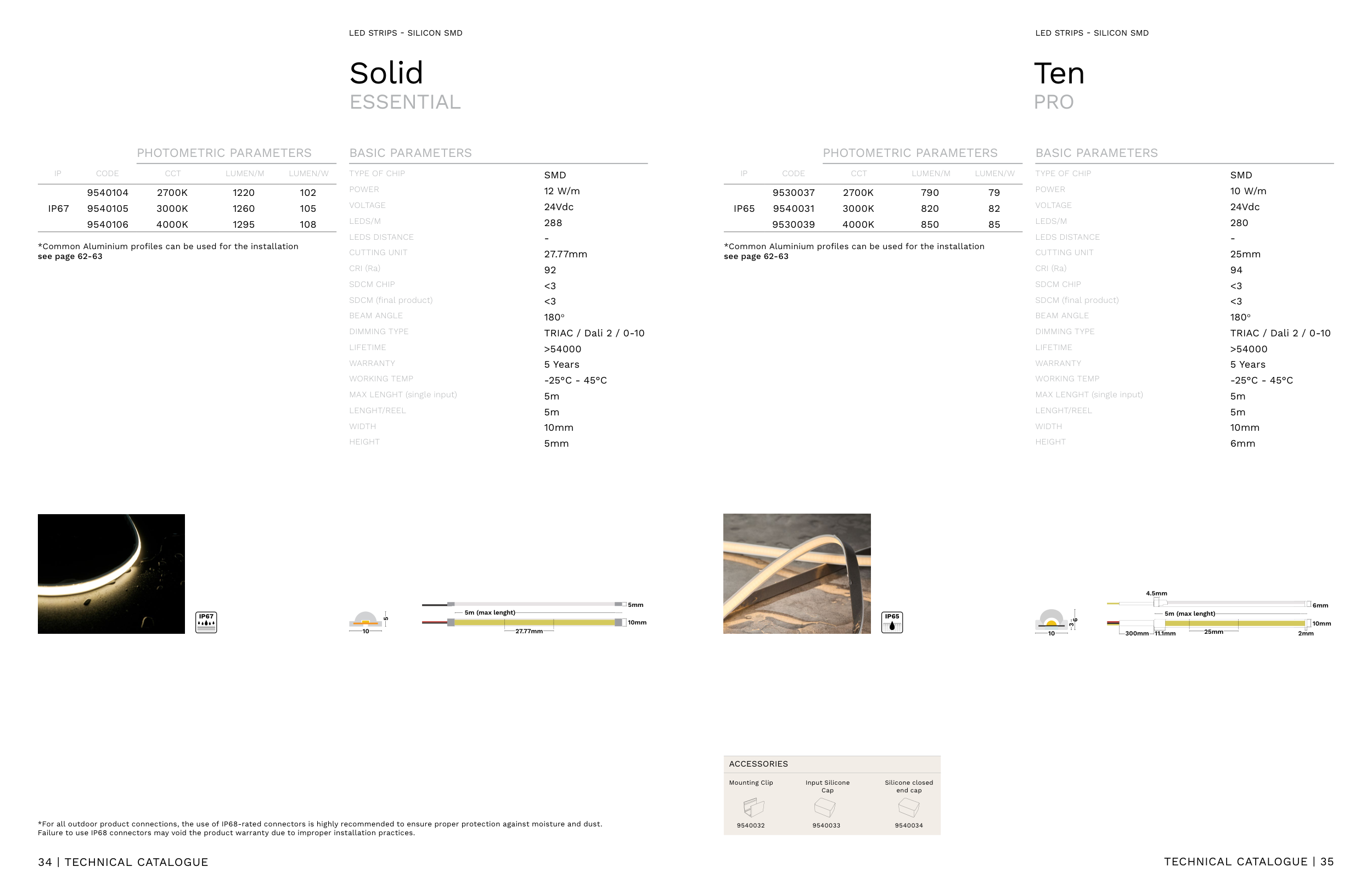

LED STRIPS - SILICON SMD
IP67
9540104
2700K
1220
102
9540105
3000K
1260
105
9540106
4000K
1295
108
SMD
12 W/m
24Vdc
288
-
27.77mm
92
<3
<3
180o
TRIAC / Dali 2 / 0-10
>54000
5 Years
-25°C - 45°C
5m
5m
10mm
5mm
Solid
ESSENTIAL
10
5
IP67
5m (max lenght)
5mm
10mm
27.77mm
IP
CODE
CCT
LUMEN/M
LUMEN/W
BASIC PARAMETERS
TYPE OF CHIP
POWER
VOLTAGE
LEDS/M
LEDS DISTANCE
CUTTING UNIT
CRI (Ra)
SDCM CHIP
SDCM (final product)
BEAM ANGLE
DIMMING TYPE
LIFETIME
WARRANTY
WORKING TEMP
MAX LENGHT (single input)
LENGHT/REEL
WIDTH
HEIGHT
PHOTOMETRIC PARAMETERS
*Common Aluminium profiles can be used for the installation
see page 62-63
*For all outdoor product connections, the use of IP68-rated connectors is highly recommended to ensure proper protection against moisture and dust.
Failure to use IP68 connectors may void the product warranty due to improper installation practices.
LED STRIPS - SILICON SMD
IP65
9530037
2700K
790
79
9540031
3000K
820
82
9530039
4000K
850
85
SMD
10 W/m
24Vdc
280
-
25mm
94
<3
<3
180o
TRIAC / Dali 2 / 0-10
>54000
5 Years
-25°C - 45°C
5m
5m
10mm
6mm
Ten
PRO
10
3 6
9540032
Mounting Clip
9540033
Input Silicone
Cap
9540034
Silicone closed
end cap
5m (max lenght)
6mm
10mm
300mm
11.1mm
2mm
4.5mm
25mm
IP65
ACCESSORIES
IP
CODE
CCT
LUMEN/M
LUMEN/W
BASIC PARAMETERS
TYPE OF CHIP
POWER
VOLTAGE
LEDS/M
LEDS DISTANCE
CUTTING UNIT
CRI (Ra)
SDCM CHIP
SDCM (final product)
BEAM ANGLE
DIMMING TYPE
LIFETIME
WARRANTY
WORKING TEMP
MAX LENGHT (single input)
LENGHT/REEL
WIDTH
HEIGHT
PHOTOMETRIC PARAMETERS
*Common Aluminium profiles can be used for the installation
see page 62-63
