TECHNICAL CATALOGUE | 31
30 | TECHNICAL CATALOGUE

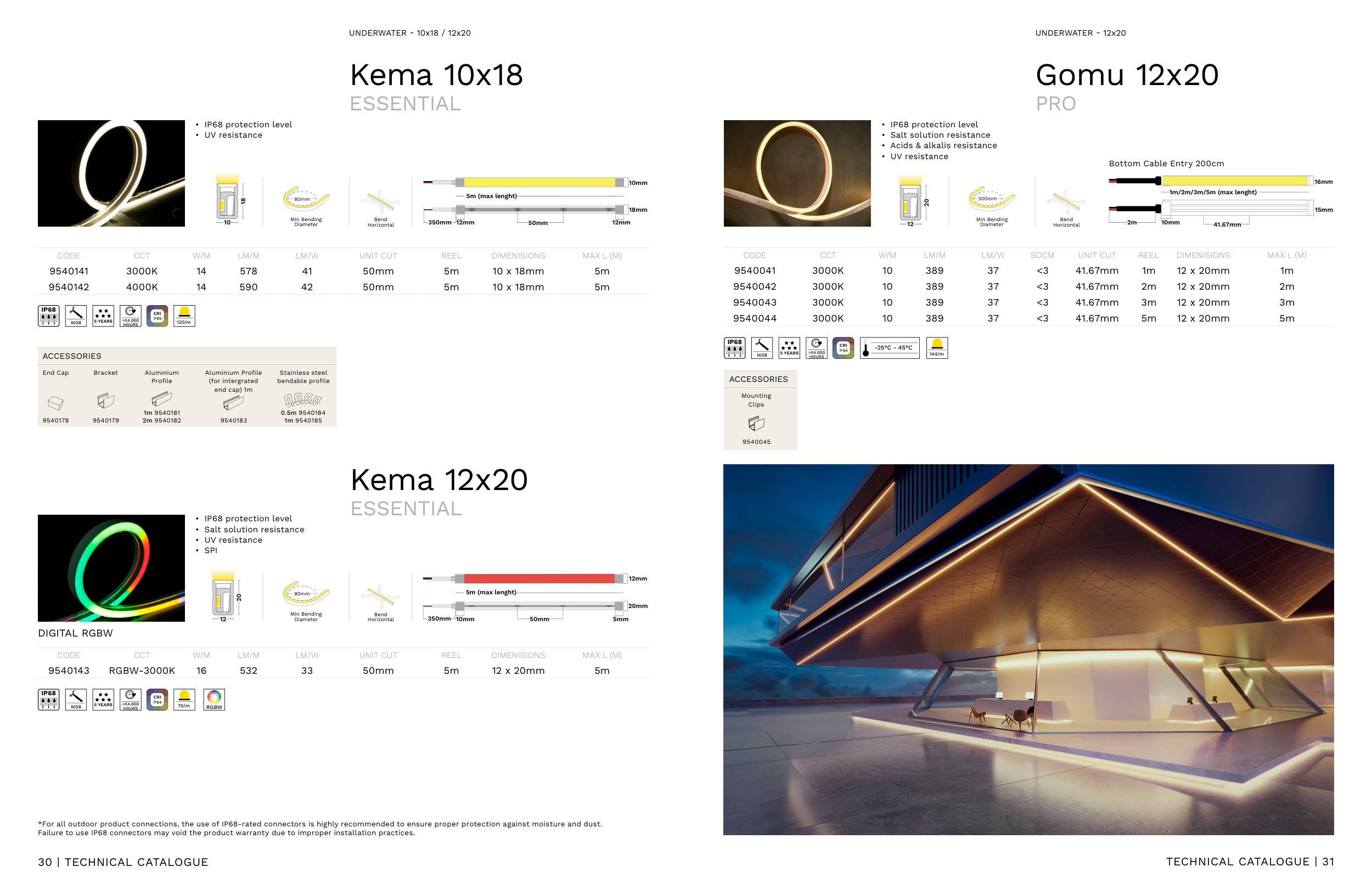

UNDERWATER - 10x18 / 12x20
350mm
5mm
5m (max lenght)
20mm
12mm
10mm
50mm
350mm
12mm
5m (max lenght)
18mm
10mm
12mm
50mm
18
10
20
12
Kema 10x18
ESSENTIAL
Kema 12x20
ESSENTIAL
• IP68 protection level
• UV resistance
• IP68 protection level
• Salt solution resistance
• UV resistance
• SPI
CODE
CCT
W/M
LM/M
LM/W
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9540141
3000K
14
578
41
50mm
5m
10 x 18mm
5m
9540142
4000K
14
590
42
50mm
5m
10 x 18mm
5m
CODE
CCT
W/M
LM/M
LM/W
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9540143
RGBW-3000K
16
532
33
50mm
5m
12 x 20mm
5m
DIGITAL RGBW
IK08
>54.000
HOURS
5 YEARS
CRI
>94
70/m
IP68
IK08
>54.000
HOURS
5 YEARS
CRI
>95
120/m
IP68
Bend
Horizontal
Bend
Horizontal
80mm
Min Bending
Diameter
80mm
Min Bending
Diameter
ACCESSORIES
1m 9540181
2m 9540182
Aluminium
Profile
0.5m 9540184
1m 9540185
Stainless steel
bendable profile
9540183
Aluminium Profile
(for intergrated
end cap) 1m
9540179
Bracket
9540178
End Cap
RGBW
*For all outdoor product connections, the use of IP68-rated connectors is highly recommended to ensure proper protection against moisture and dust.
Failure to use IP68 connectors may void the product warranty due to improper installation practices.
UNDERWATER - 12x20
20
12
9540045
Mounting
Clips
Gomu 12x20
PRO
ACCESSORIES
Bend
Horizontal
300mm
Min Bending
Diameter
• IP68 protection level
• Salt solution resistance
• Acids & alkalis resistance
• UV resistance
CODE
CCT
W/M
LM/M
LM/W
SDCM
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9540041
3000K
10
389
37
<3
41.67mm
1m
12 x 20mm
1m
9540042
3000K
10
389
37
<3
41.67mm
2m
12 x 20mm
2m
9540043
3000K
10
389
37
<3
41.67mm
3m
12 x 20mm
3m
9540044
3000K
10
389
37
<3
41.67mm
5m
12 x 20mm
5m
IK08
>54.000
HOURS
5 YEARS
CRI
>94
144/m
IP68
-25°C - 45°C
2m
10mm
1m/2m/3m/5m (max lenght)
15mm
16mm
41.67mm
Bottom Cable Entry 200cm
