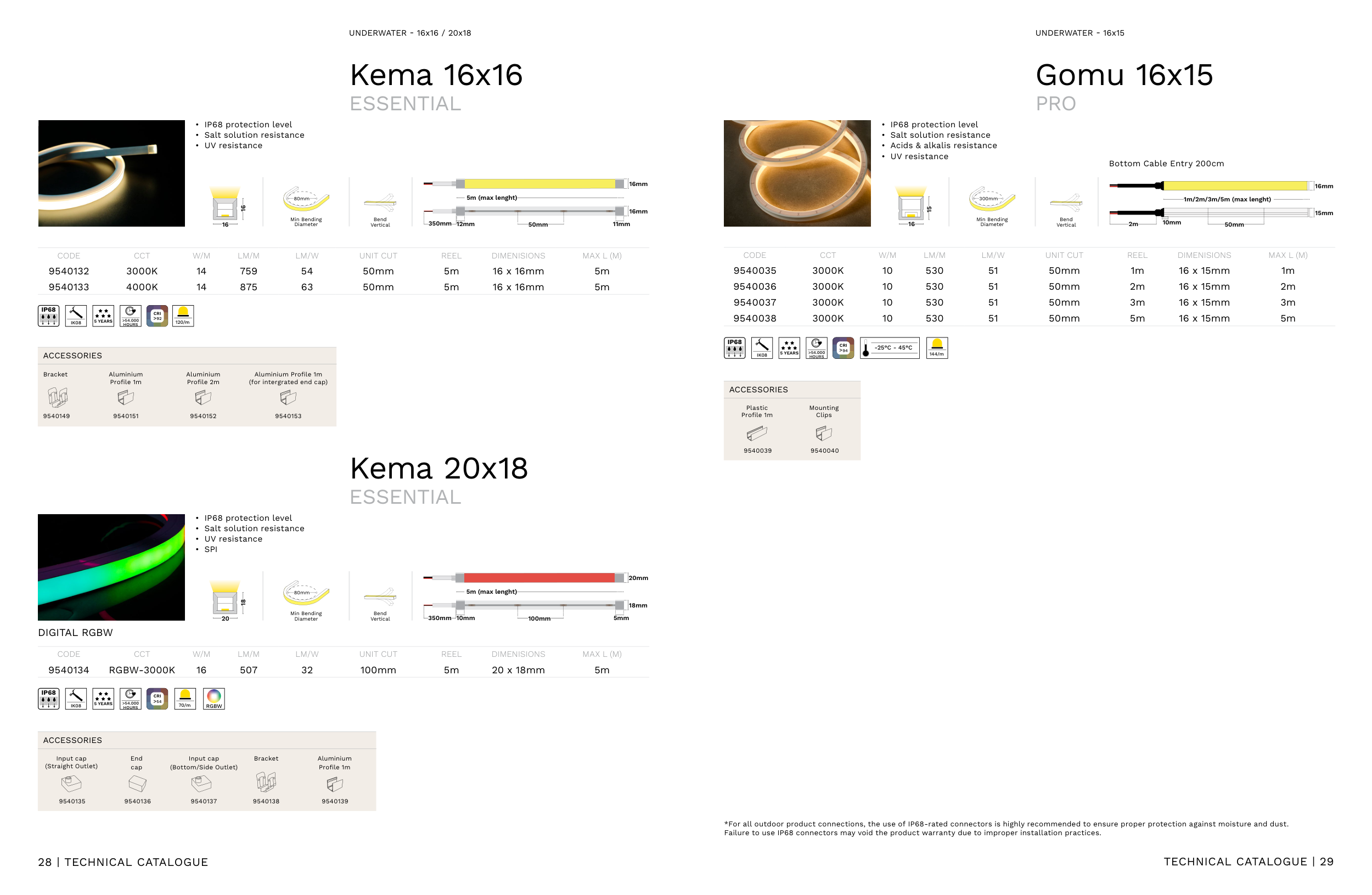

UNDERWATER - 16x16 / 20x18
16
16
20
18
350mm
11mm
5m (max lenght)
16mm
16mm
12mm
50mm
350mm
5mm
5m (max lenght)
18mm
20mm
10mm
100mm
9540135
9540137
Input cap
(Straight Outlet)
Input cap
(Bottom/Side Outlet)
9540136
9540138
9540149
9540139
9540151
9540152
9540153
End
cap
Bracket
Bracket
Aluminium
Profile 1m
Aluminium
Profile 1m
Aluminium
Profile 2m
Aluminium Profile 1m
(for intergrated end cap)
Kema 16x16
ESSENTIAL
Kema 20x18
ESSENTIAL
Bend
Vertical
Bend
Vertical
ACCESSORIES
ACCESSORIES
• IP68 protection level
• Salt solution resistance
• UV resistance
• IP68 protection level
• Salt solution resistance
• UV resistance
• SPI
80mm
Min Bending
Diameter
80mm
Min Bending
Diameter
CODE
CCT
W/M
LM/M
LM/W
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9540132
3000K
14
759
54
50mm
5m
16 x 16mm
5m
9540133
4000K
14
875
63
50mm
5m
16 x 16mm
5m
CODE
CCT
W/M
LM/M
LM/W
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9540134
RGBW-3000K
16
507
32
100mm
5m
20 x 18mm
5m
DIGITAL RGBW
IK08
>54.000
HOURS
5 YEARS
CRI
>54
70/m
IP68
IK08
>54.000
HOURS
5 YEARS
CRI
>92
120/m
IP68
RGBW
UNDERWATER - 16x15
16
15
9540039
9540040
Plastic
Profile 1m
Mounting
Clips
Gomu 16x15
PRO
Bend
Vertical
ACCESSORIES
• IP68 protection level
• Salt solution resistance
• Acids & alkalis resistance
• UV resistance
300mm
Min Bending
Diameter
CODE
CCT
W/M
LM/M
LM/W
UNIT CUT
REEL
DIMENISIONS
MAX L (M)
9540035
3000K
10
530
51
50mm
1m
16 x 15mm
1m
9540036
3000K
10
530
51
50mm
2m
16 x 15mm
2m
9540037
3000K
10
530
51
50mm
3m
16 x 15mm
3m
9540038
3000K
10
530
51
50mm
5m
16 x 15mm
5m
IK08
>54.000
HOURS
5 YEARS
CRI
>94
144/m
IP68
-25°C - 45°C
2m
1m/2m/3m/5m (max lenght)
15mm
16mm
50mm
10mm
Bottom Cable Entry 200cm
*For all outdoor product connections, the use of IP68-rated connectors is highly recommended to ensure proper protection against moisture and dust.
Failure to use IP68 connectors may void the product warranty due to improper installation practices.
