Umberto Series
Page 3
White
2210100001
Black
2210100003
Nickle
2210100055
Suitable for
bathroom zone 2
IP44
Cut out
Ø 7,6 cm
Replaceable
GU10 bulb
Built-in height
6,6 cm

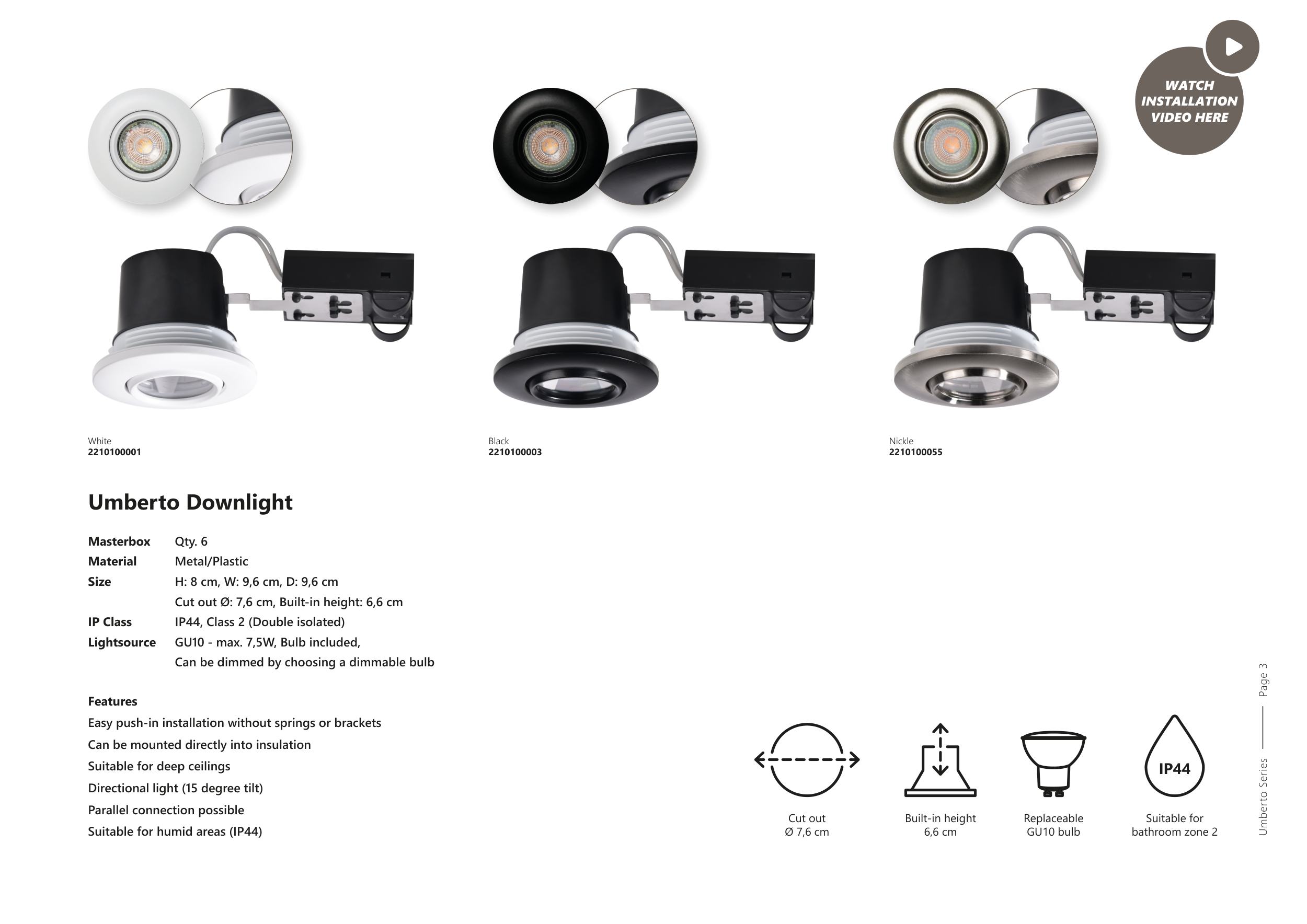

Umberto Downlight
Masterbox
Qty. 6
Material
Metal/Plastic
Size
H: 8 cm, W: 9,6 cm, D: 9,6 cm
Cut out Ø: 7,6 cm, Built-in height: 6,6 cm
IP Class
IP44, Class 2 (Double isolated)
Lightsource
GU10 - max. 7,5W, Bulb included,
Can be dimmed by choosing a dimmable bulb
Features
Easy push-in installation without springs or brackets
Can be mounted directly into insulation
Suitable for deep ceilings
Directional light (15 degree tilt)
Parallel connection possible
Suitable for humid areas (IP44)
WATCH
INSTALLATION
VIDEO HERE
