226
Parallel
connection
*15 year guarantee
on corrosion
Build in height
15 cm
Cutout Ø
7,2 cm

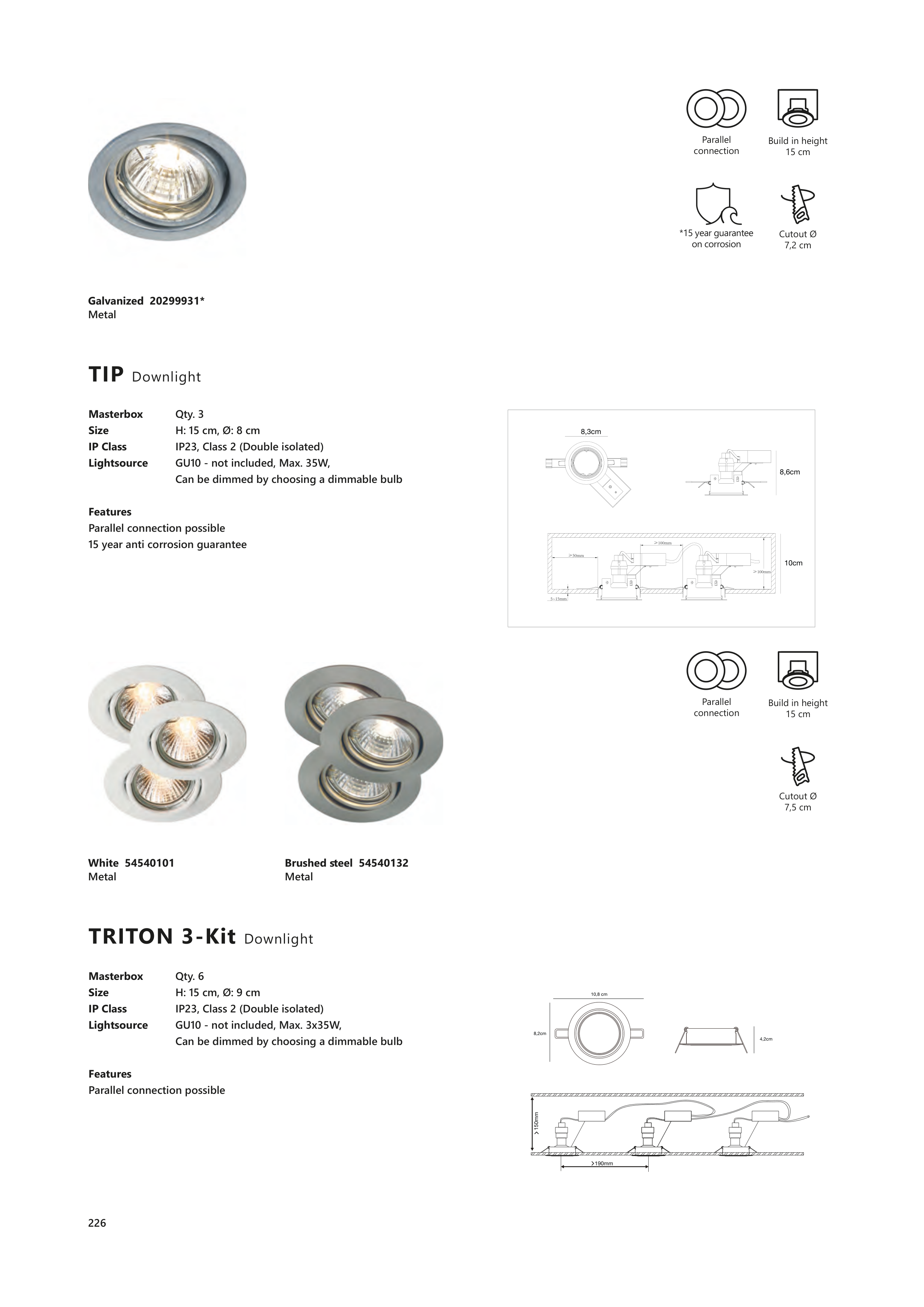

TIP Downlight
Masterbox
Qty. 3
Size
H: 15 cm, Ø: 8 cm
IP Class
IP23, Class 2 (Double isolated)
Lightsource
GU10 - not included, Max. 35W,
Can be dimmed by choosing a dimmable bulb
Features
Parallel connection possible
15 year anti corrosion guarantee
Galvanized 20299931*
Metal
Parallel
connection
Build in height
15 cm
Cutout Ø
7,5 cm
TRITON 3-Kit Downlight
Masterbox
Qty. 6
Size
H: 15 cm, Ø: 9 cm
IP Class
IP23, Class 2 (Double isolated)
Lightsource
GU10 - not included, Max. 3x35W,
Can be dimmed by choosing a dimmable bulb
Features
Parallel connection possible
White 54540101
Metal
Brushed steel 54540132
Metal
8,6cm
8,3cm
5~15mm
≥50mm
≥100mm
≥100mm
10cm
10,8 cm
>
>
8,2cm
150mm
190mm
4,2cm
