220
Parallel
connection
Build in height
4,6 cm
Cutout Ø
7,2 cm

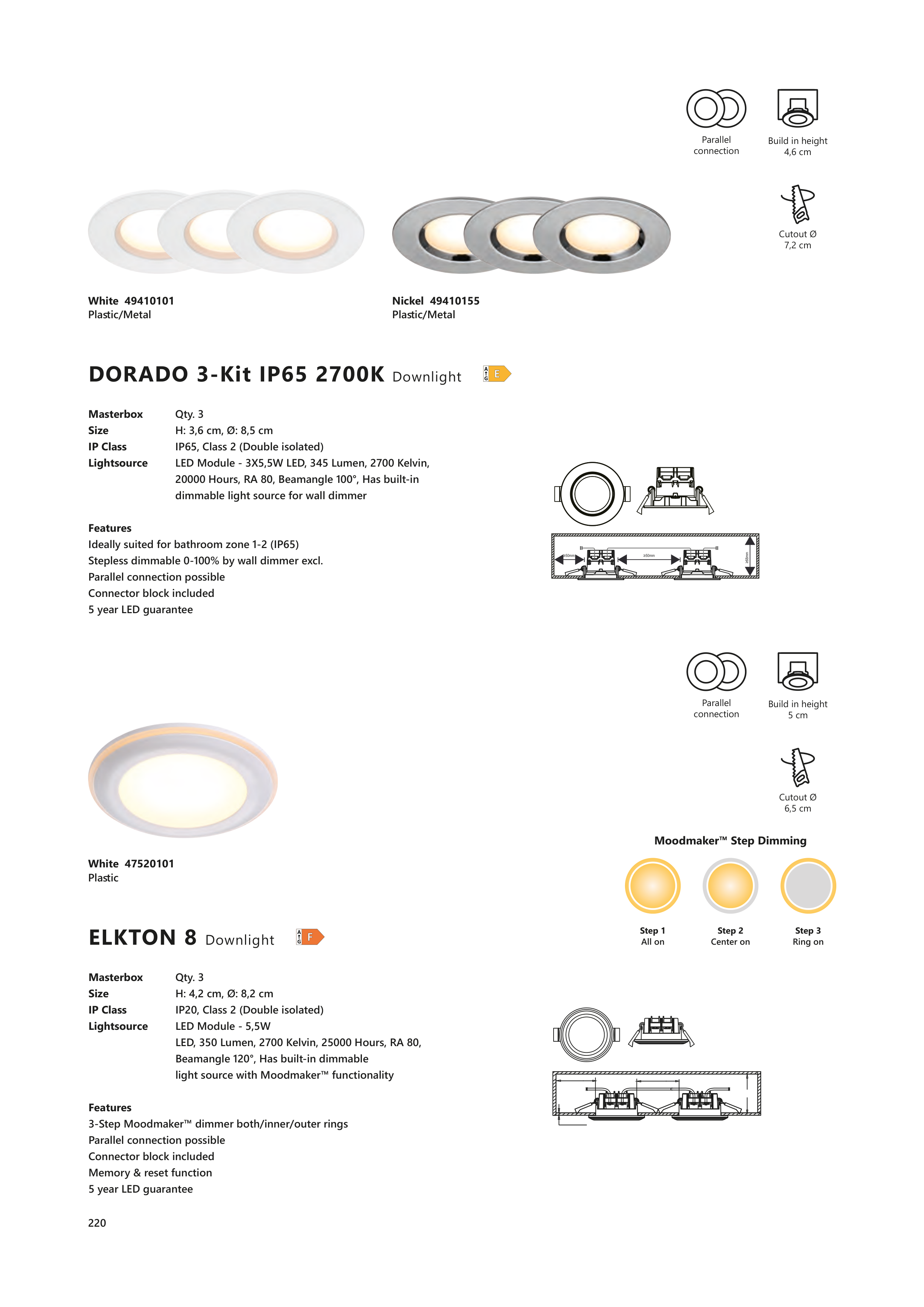

DORADO 3-Kit IP65 2700K Downlight
Masterbox
Qty. 3
Size
H: 3,6 cm, Ø: 8,5 cm
IP Class
IP65, Class 2 (Double isolated)
Lightsource
LED Module - 3X5,5W LED, 345 Lumen, 2700 Kelvin,
20000 Hours, RA 80, Beamangle 100°, Has built-in
dimmable light source for wall dimmer
Features
Ideally suited for bathroom zone 1-2 (IP65)
Stepless dimmable 0-100% by wall dimmer excl.
Parallel connection possible
Connector block included
5 year LED guarantee
Nickel 49410155
Plastic/Metal
White 49410101
Plastic/Metal
Parallel
connection
Build in height
5 cm
Cutout Ø
6,5 cm
ELKTON 8 Downlight
Masterbox
Qty. 3
Size
H: 4,2 cm, Ø: 8,2 cm
IP Class
IP20, Class 2 (Double isolated)
Lightsource
LED Module - 5,5W
LED, 350 Lumen, 2700 Kelvin, 25000 Hours, RA 80,
Beamangle 120°, Has built-in dimmable
light source with Moodmaker™ functionality
Features
3-Step Moodmaker™ dimmer both/inner/outer rings
Parallel connection possible
Connector block included
Memory & reset function
5 year LED guarantee
White 47520101
Plastic
Step 1
All on
Step 2
Center on
Moodmaker™ Step Dimming
Step 3
Ring on
≥50mm
≥50mm
≥68mm
