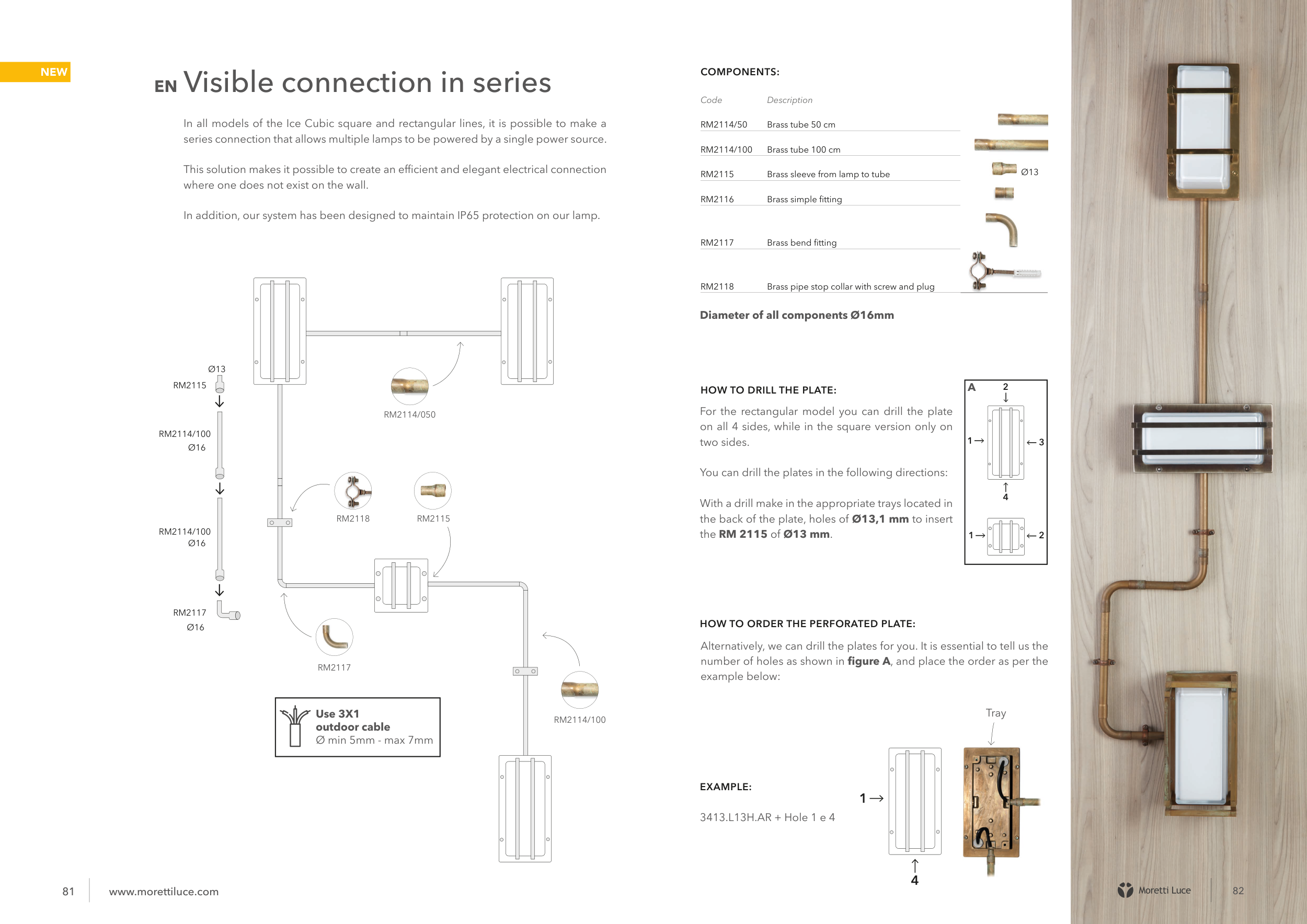

Visible connection in series
In all models of the Ice Cubic square and rectangular lines, it is possible to make a
series connection that allows multiple lamps to be powered by a single power source.
This solution makes it possible to create an efficient and elegant electrical connection
where one does not exist on the wall.
In addition, our system has been designed to maintain IP65 protection on our lamp.
COMPONENTS:
Code
Description
RM2114/50
Brass tube 50 cm
RM2114/100
Brass tube 100 cm
RM2115
Brass sleeve from lamp to tube
RM2116
Brass simple fitting
RM2117
Brass bend fitting
RM2118
Brass pipe stop collar with screw and plug
NEW
HOW TO DRILL THE PLATE:
For the rectangular model you can drill the plate
on all 4 sides, while in the square version only on
two sides.
You can drill the plates in the following directions:
With a drill make in the appropriate trays located in
the back of the plate, holes of Ø13,1 mm to insert
the RM 2115 of Ø13 mm.
RM2114/050
RM2117
RM2114/100
RM2115
RM2118
1
2
3
4
1
2
EXAMPLE:
3413.L13H.AR + Hole 1 e 4
1
4
Tray
HOW TO ORDER THE PERFORATED PLATE:
Alternatively, we can drill the plates for you. It is essential to tell us the
number of holes as shown in figure A, and place the order as per the
example below:
A
Ø13
Ø16
Ø16
Ø16
RM2114/100
RM2114/100
Ø13
RM2117
Use 3X1
outdoor cable
Ø min 5mm - max 7mm
Diameter of all components Ø16mm
RM2115
EN
81
