093
Ø 280
176
IP 66

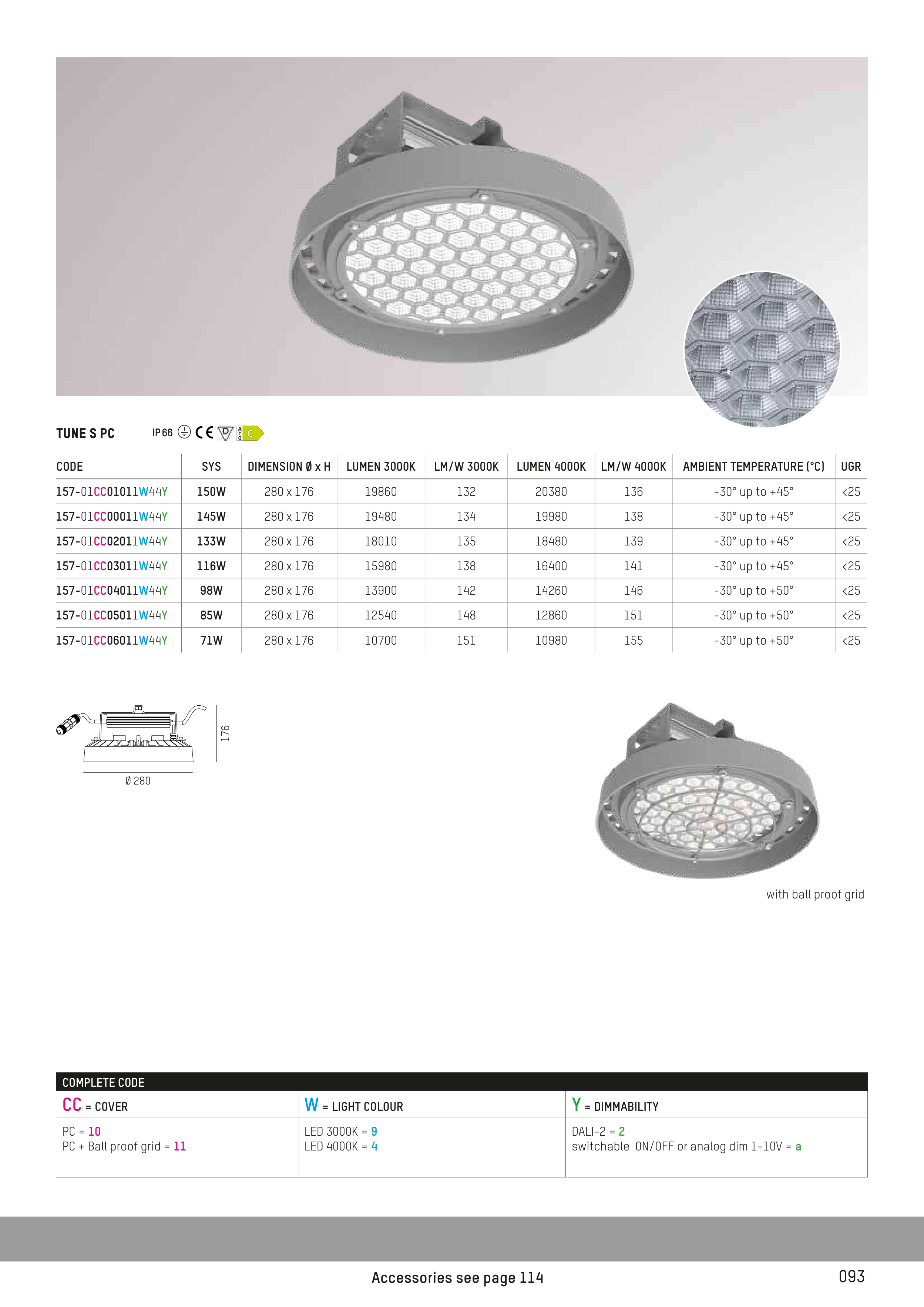

TUNE S PC
C
A
G
with ball proof grid
CODE
SYS
DIMENSION Ø x H
LUMEN 3000K
LM/W 3000K
LUMEN 4000K
LM/W 4000K
AMBIENT TEMPERATURE (°C)
UGR
157-01CC01011W44Y
150W
280 x 176
19860
132
20380
136
-30° up to +45°
<25
157-01CC00011W44Y
145W
280 x 176
19480
134
19980
138
-30° up to +45°
<25
157-01CC02011W44Y
133W
280 x 176
18010
135
18480
139
-30° up to +45°
<25
157-01CC03011W44Y
116W
280 x 176
15980
138
16400
141
-30° up to +45°
<25
157-01CC04011W44Y
98W
280 x 176
13900
142
14260
146
-30° up to +50°
<25
157-01CC05011W44Y
85W
280 x 176
12540
148
12860
151
-30° up to +50°
<25
157-01CC06011W44Y
71W
280 x 176
10700
151
10980
155
-30° up to +50°
<25
COMPLETE CODE
CC = COVER
W = LIGHT COLOUR
Y = DIMMABILITY
PC = 10
PC + Ball proof grid = 11
LED 3000K = 9
LED 4000K = 4
DALI-2 = 2
switchable ON/OFF or analog dim 1-10V = a
Accessories see page 114
